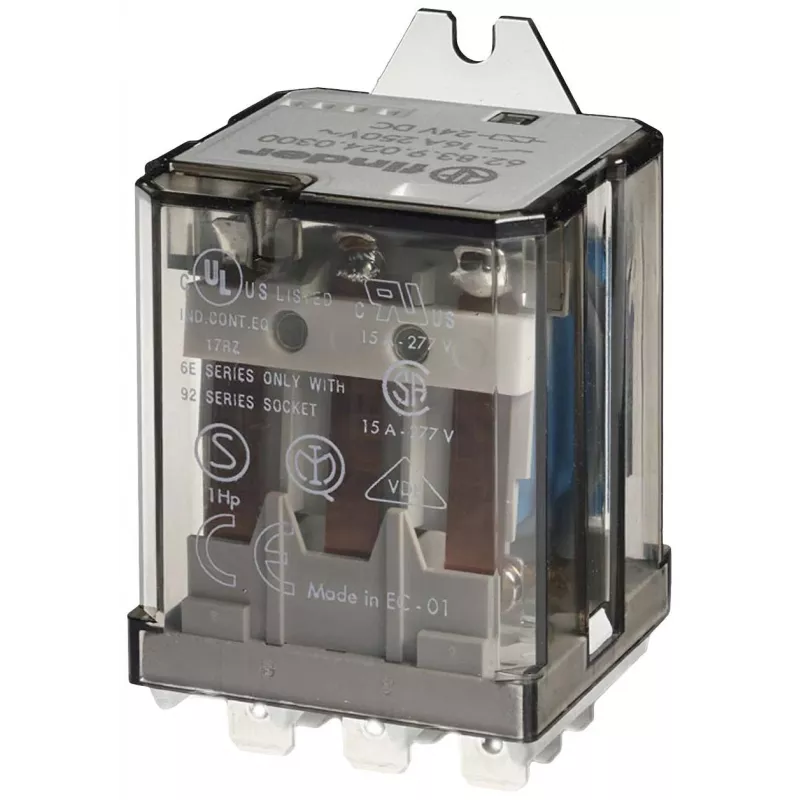

Finder 62.83.9.220.4009 ρελέ βύσματος 220V DC 16A 3 εναλλασσόμενες επαφές

Industrial control systems often need a reliable way to switch high-current loads from a low-power DC signal. The Finder 62.83.9.220.4009 plug-in relay solves this by providing three changeover contacts rated at 16 A, driven by a 220 V DC coil.

Who is it for

This relay is intended for panel builders, machine manufacturers, and maintenance engineers who need a robust, plug-in switching solution for automation, HVAC, or power distribution applications.

Main features

• 3 changeover contacts (3 CO / 3PDT) for versatile switching
• 16 A rated contact current, 250 V AC rated contact voltage
• 220 V DC coil voltage with 1.7 W DC coil power
• Plug-in mounting for use with Finder 92 Series sockets
• Flux proof (RT I) protection
• Wide operating temperature range: -40 to +70 °C

Specifications

• Contact material: AgCdO (Silver Cadmium Oxide)
• Dielectric strength coil-contact: 2500 V AC
• Dielectric strength open contacts: 1000 V AC
• Mechanical life: 10 x 10^6 operations
• Electrical life at rated load: 100 x 10^3 operations
• Terminal type: Plug-in pins (Faston 250)
• Insulation type: Basic insulation
• Approvals: CE, VDE, UL, CSA

Tips

Pair this relay with a suitable Finder 92 Series socket for secure mounting and easy replacement. Ensure the coil voltage matches your control circuit before installation.
