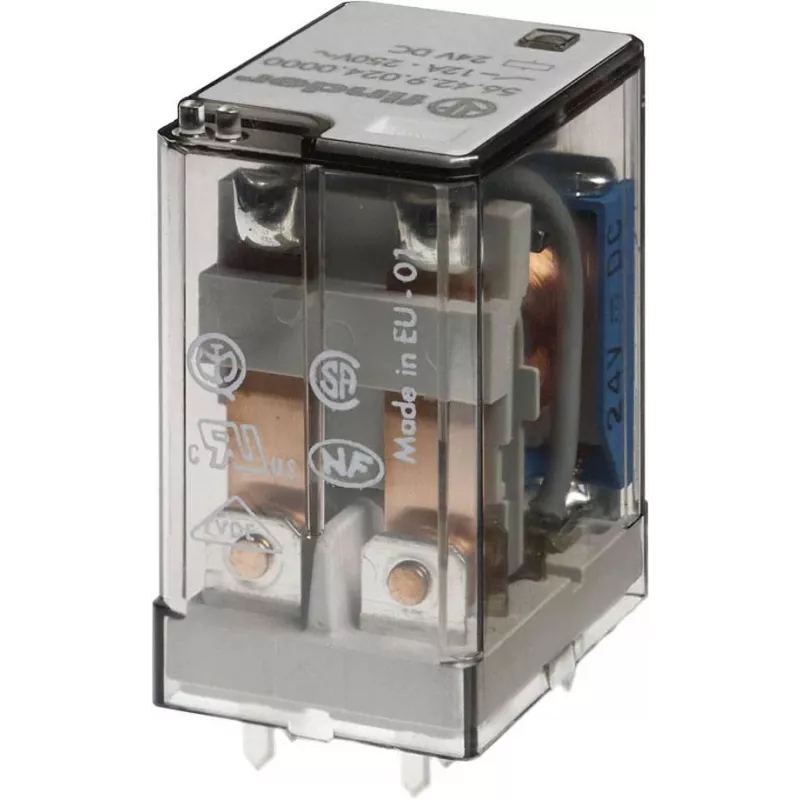

Finder 56.42.9.024.0000 Ρελέ ισχύος PCB 24 V DC 2 CO 12 A

The Finder 56.42.9.024.0000 is a PCB-mount power relay with a monostable, unpolarized DC drive. It delivers 2 changeover contacts rated 12 A, making it suitable for switching moderate power loads on printed circuit boards.

Highlights

• 24 V DC coil, unpolarized, monostable switching
• 2 CO (DPDT) contacts, 12 A rated current
• Flux-proof RT II protection
• Wide operating temperature range: -40 to +70 °C

Full specifications

• Contact configuration: 2 CO (DPDT)
• Rated contact current: 12 A
• Rated contact voltage: 250 V AC
• Contact material: AgNi
• Coil power consumption: 0.6 W DC
• Dielectric strength coil-contact: 2500 V AC
• Dielectric strength open contacts: 1000 V AC
• Max switching power (AC1): 3000 VA
• Max switching voltage: 400 V AC
• Max switching current: 20 A (peak)
• Electrical life at rated load: 100 x 10³ cycles
• Mechanical life: 10 x 10⁶ cycles
• Insulation resistance: > 1000 MΩ
• Operating temperature: -40 to +70 °C
• Protection degree: RT II (flux proof)

Final note

Designed for PCB mounting, this relay offers reliable switching in industrial and automation applications.
