Finder 48.61.9.024.1050 Ρελέ Διεπαφής 24V DC 16A 1 Εναλλασσόμενη

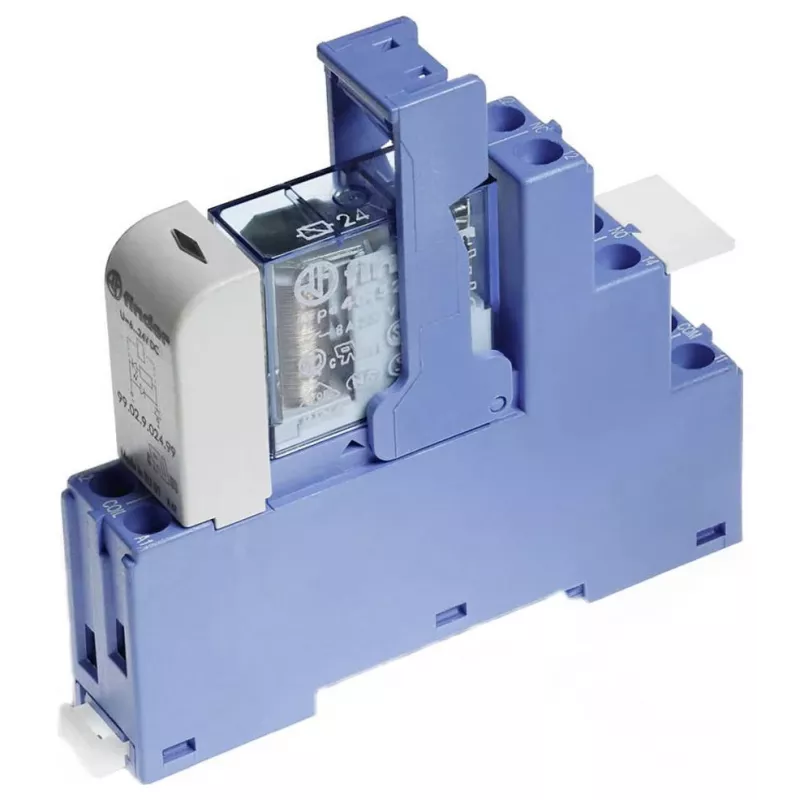

In industrial control cabinets, the Finder 48.61.9.024.1050 interface relay links PLC outputs to higher-current loads. It switches a 16 A circuit with a 24 V DC coil, using a single changeover contact.

Key specifications

• Coil voltage: 24 V DC
• Contact configuration: 1 changeover (SPDT)
• Contact rating: 16 A / 250 V AC
• Mounting: DIN rail
• Terminals: screw

Why choose it

This relay suits automation panels where space is limited and reliable switching is required. The reinforced insulation provides safe separation between coil and contacts.

Ideal use cases

• PLC output expansion
• Motor contactor control
• Heating and lighting loads

Good to know

The relay operates from -40 °C to +70 °C and has a mechanical life of 10 million cycles.
