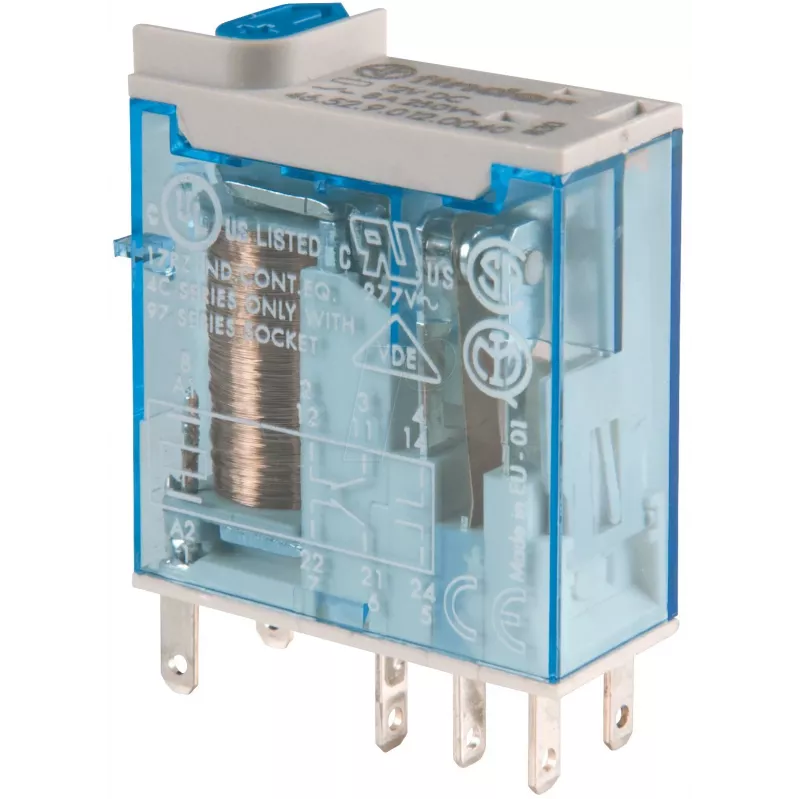

Finder 46.52.9.012.0040 βιομηχανικό ρελέ διασύνδεσης 12 V DC 2 CO 8 A

In industrial control panels and building automation systems, reliable switching of moderate loads is a daily necessity. The Finder 46.52.9.012.0040 is a robust interface relay engineered for such tasks, featuring a 12 V DC coil and a double pole double throw (2 CO) contact arrangement. With an 8 A rated current and reinforced insulation, it handles control and power circuits with confidence. Its compact plug-in design, compatible with Series 97 sockets, simplifies installation and maintenance in crowded cabinets.

Key specifications

• Coil voltage: 12 V DC
• Contact configuration: 2 CO (DPDT)
• Rated current: 8 A
• Max switching voltage: 400 V AC
• Max switching power: 2000 VA
• Contact material: AgNi (Silver Nickel)
• Coil power: 0.3 W
• Coil resistance: 480 Ohm
• Dielectric strength coil-contact: 5.5 kV AC (1 min)
• Operating temperature: -40 to +70 °C
• Mechanical life: 10 million operations
• Electrical life: 100 thousand operations at rated load
• Mounting: Plug-in for Series 97 sockets
• Protection: RT I (Flux proof)
• Terminals: Faston 2.8 x 0.5 mm
• Insulation: Reinforced between coil and contacts

Why choose it

This relay delivers dependable performance in demanding environments. The AgNi contacts ensure low contact resistance and long-term stability, while the reinforced insulation provides a high safety margin. Its flux-proof construction protects against dust and solder flux, extending service life even in less-than-ideal conditions. The plug-in socket compatibility allows quick replacement without rewiring, reducing downtime.

Ideal use cases

• Interface between PLC outputs and higher-power loads
• Switching of contactors, valves, and small motors
• Signal multiplication and isolation in control circuits
• Building automation for lighting and HVAC control
• General industrial machinery and equipment

Good to know

For optimal performance, use with Finder Series 97 sockets and retain clips. The relay is suitable for ambient temperatures from -40 °C to +70 °C, making it versatile for both cold storage and hot process areas. Always verify coil polarity for DC operation and ensure the load does not exceed the rated switching power.
