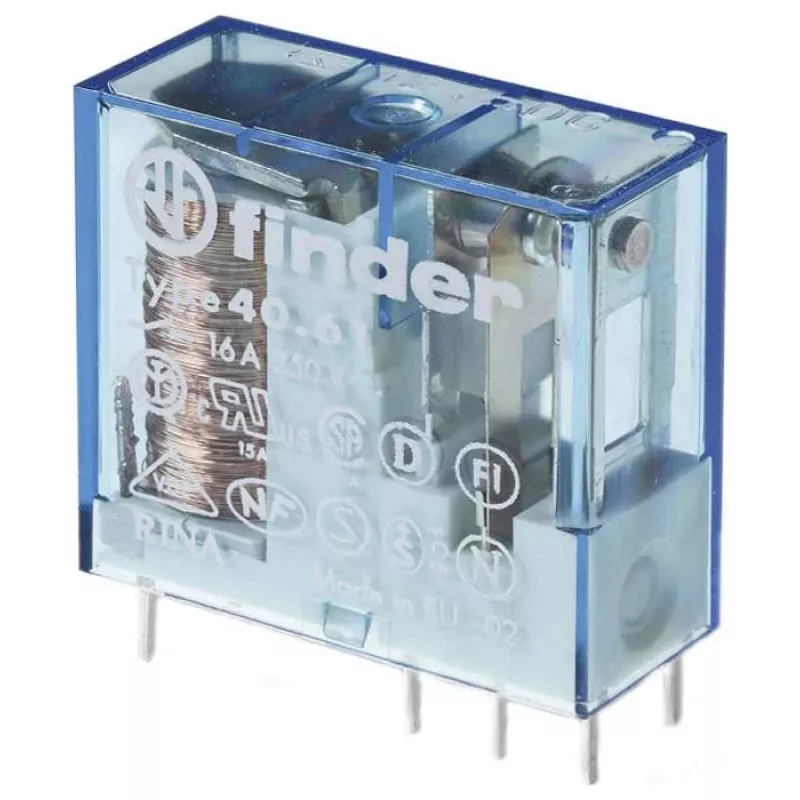

Finder 40.61.9.012.1000 Ρελέ PCB 12V DC 16A SPDT

When a control circuit needs to switch a high-current load reliably from a printed circuit board, a compact and robust relay is essential. The Finder 40.61.9.012.1000 is a PCB mount electromechanical relay with a 12 V DC coil and a single changeover contact rated for 16 A, making it suitable for a wide range of industrial and domestic applications.

Who is it for

This relay is intended for engineers, technicians, and hobbyists who design or maintain electronic control systems, such as HVAC, lighting, or appliance controls, where space is limited but switching capacity is critical.

Main features

• 1 changeover (SPDT) contact configuration
• Rated contact current: 16 A
• Coil voltage: 12 V DC
• PCB through-hole mounting
• Flux proof (RT I) protection
• Wide operating temperature range: -40 to +85 °C

Specifications

• Rated contact voltage: 250 V AC
• Max switching voltage: 400 V AC
• Max switching power (AC1): 4000 VA
• Contact material: AgNi
• Coil power consumption: 0.3 W
• Dielectric strength coil-contact: 5000 V AC
• Dielectric strength open contacts: 1000 V AC
• Electrical life at rated load: 100,000 cycles
• Mechanical life: 10,000,000 cycles
• Insulation resistance: 1000 MΩ
• Number of pins: 5
• Approvals: VDE, UL, CSA

Tips

Ensure the PCB layout provides adequate clearance for the relay's switching voltage. For inductive loads, consider using a snubber circuit to extend contact life.
