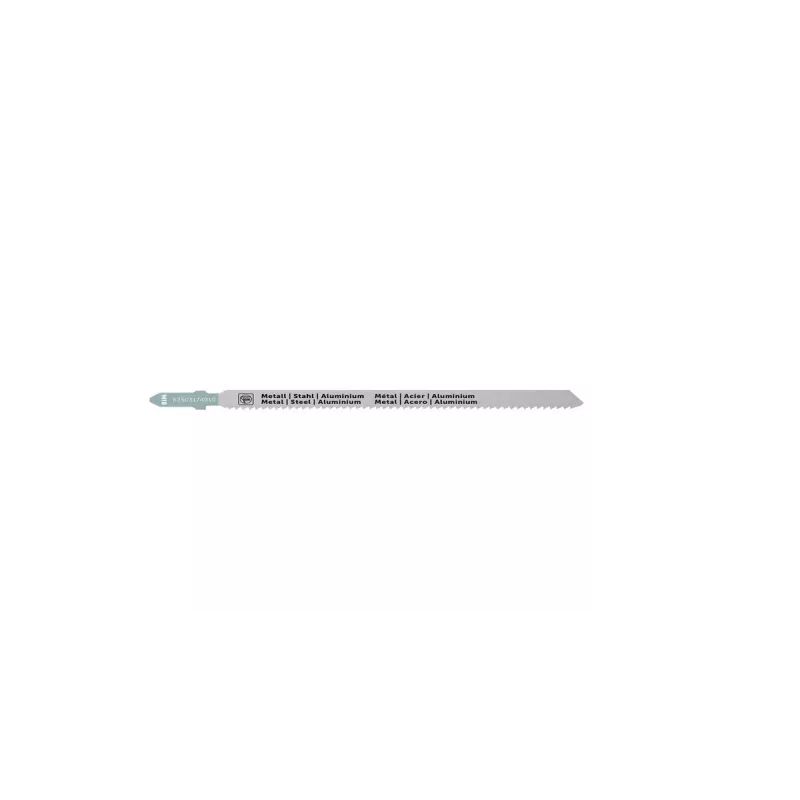

FEIN 63503174010 BIM 110 T2 MSA SC Σετ λεπίδων σέγας για σωλήνες και προφίλ, 5 τεμ.

Cutting pipes and profiles cleanly with a jigsaw often leads to blade wander, rough edges, and premature wear—especially when working with tough metals or mixed materials. The FEIN 63503174010 BIM 110 T2 MSA SC jigsaw blade set tackles these challenges head-on, delivering precise, straight cuts in metal, non-ferrous metals, and plastics with a single, durable blade design.

Who is it for

This 5-piece blade set is built for professional metalworkers, plumbers, electricians, and serious DIYers who frequently cut pipes, profiles, and sheet materials. It is ideal for anyone using a jigsaw with a T-shank mount and needing reliable performance across steel, stainless steel, aluminium, and plastic workpieces.

Main features

• Bi-metal (BIM) construction combines a high-speed steel tooth edge with a flexible alloy body for exceptional durability and break resistance.
• Wavy-set, milled teeth with a 2.0 mm pitch (12.7 TPI) produce clean, burr-free cuts in thin to medium-thick metals and plastics.
• Universal T-shank fits FEIN jigsaws and most other brands, including Bosch, Makita, and Metabo, for maximum tool compatibility.
• 110 mm total length with 85 mm working length provides ample reach for cutting pipes and profiles up to 30 mm in plastic and 15 mm in aluminium.
• Pack of 5 blades ensures you always have a sharp blade on hand for continuous work.

Specifications

• Blade material: Bi-metal (BIM)
• Total length: 110 mm
• Working length: 85 mm
• Tooth pitch: 2.0 mm
• Teeth per inch: 12.7 TPI
• Tooth design: Wavy set, milled
• Shank type: T-shank (universal)
• Pack quantity: 5 pieces
• Max. material thickness (steel): 3-10 mm
• Max. material thickness (stainless steel): 3-8 mm
• Max. material thickness (aluminium): 3-15 mm
• Max. material thickness (plastics): 3-30 mm
• Compatible tools: FEIN jigsaws and other T-shank jigsaws

Tips

For best results, select a blade length that exceeds the material thickness by at least 20 mm and use a moderate cutting speed with light feed pressure. When cutting stainless steel, apply cutting fluid to reduce heat and extend blade life. Always secure the workpiece firmly to minimise vibration and ensure a straight cut.
