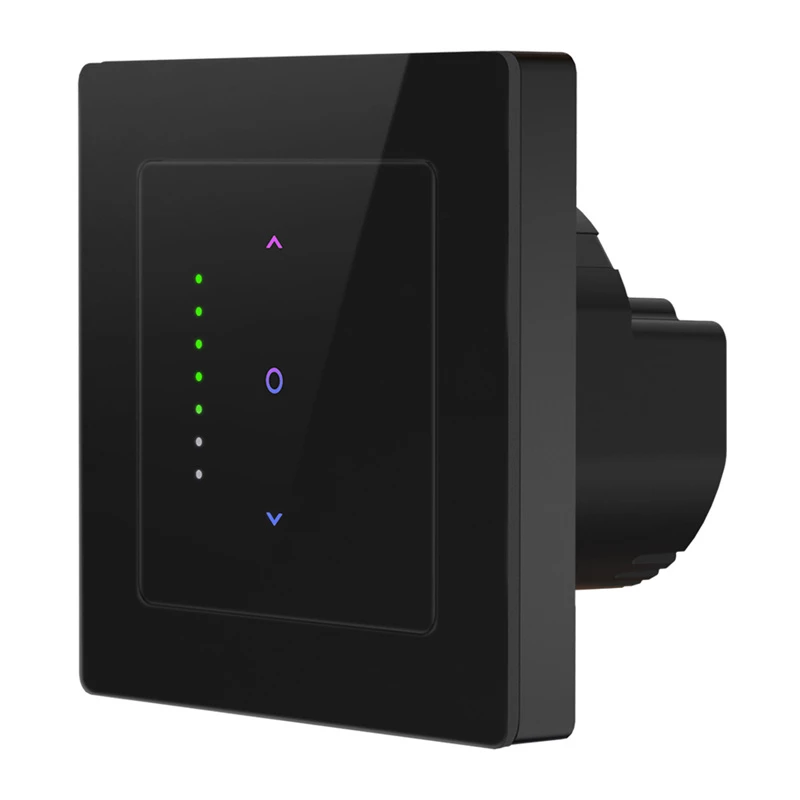

Avatto CS20-EU-B WiFi Touch Smart Blind Switch
Avatto CS20-EU-B is a modern WiFi touch switch that allows you to conveniently control blinds or roller blinds from the Tuya Smart and Smart Life apps. It also supports voice commands via Amazon Alexa and Google Home, and thanks to the percentage control function, it allows you to precisely set the opening level of the roller blinds.
Automation and smart home scenes
The device offers the ability to create schedules for opening and closing at specific times. It also supports automation scenes and group control, allowing integration with other smart devices in the home and the creation of coherent comfort management systems.
Modern design and flexible installation
The glass, black touch panel with LED backlighting looks elegant in any interior. For greater comfort, the backlighting can be turned off completely. The switch is compatible with the System 55 standard, making it easy to fit into popular frames from various manufacturers.
Well-thought-out dimensions and requirements
The panel dimensions are 80 x 55 mm, the mounting depth is 48 mm, and the thickness of the visible part is only 10 mm. The switch can be installed individually or in multiple sets, horizontally or vertically. A neutral wire is required for proper operation.
| Manufacturer | Avatto |
|---|---|
| Model | CS20-EU-B (WiFi) |
| Control type | Touch, app, voice |
| Power supply | 100–240 V AC, 50–60 Hz |
| WiFi frequency | 2.4 GHz |
| System compatibility | System 55 (55x55 mm standard) |
| External dimensions | 80 x 80 x 46 mm (with frame) |
| Installation depth | 36 mm |
| Panel thickness | 10 mm |
| Required wiring | Phase wire (L) + Neutral (N) |
| Compatibility with apps | Tuya Smart, Smart Life |
| Voice control | Amazon Alexa, Google Home |
How to use
Install the switch into a System 55-compatible frame or flush box following local electrical regulations; a neutral (N) and phase (L) connection are required. Pair the device with the Tuya Smart or Smart Life app over a 2.4 GHz WiFi network, then configure blinds control, set percentage positions, and create schedules or automation scenes. Voice control can be enabled by linking the app to Amazon Alexa or Google Home.
Recommendations
Ensure installation is performed by a qualified electrician and verify the available mounting depth and frame compatibility before fitting. Use a stable 2.4 GHz WiFi network for reliable app and voice operation, and turn off panel backlighting if not needed to reduce visual distraction.
