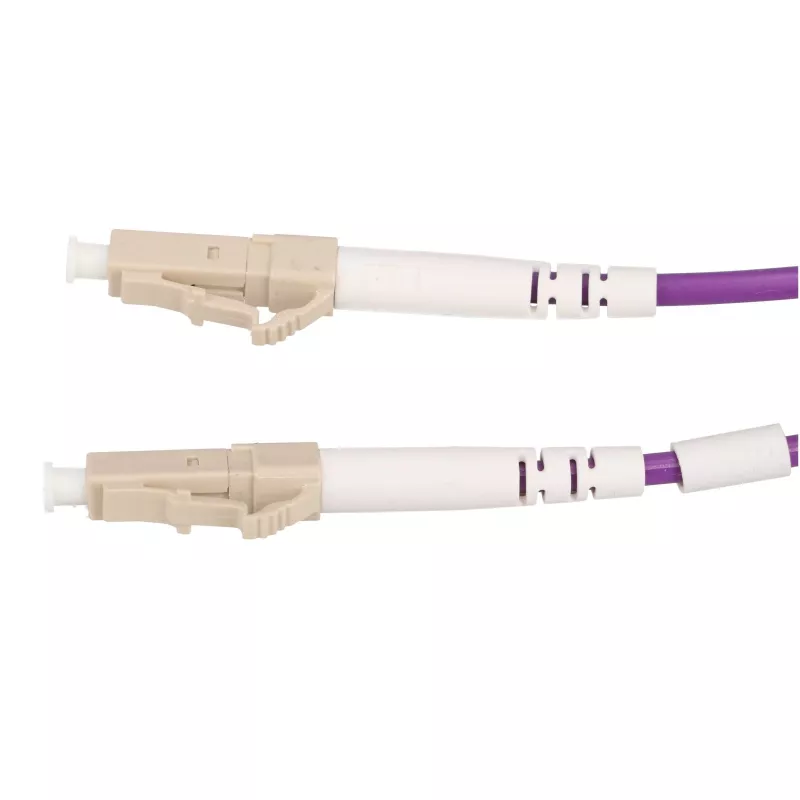

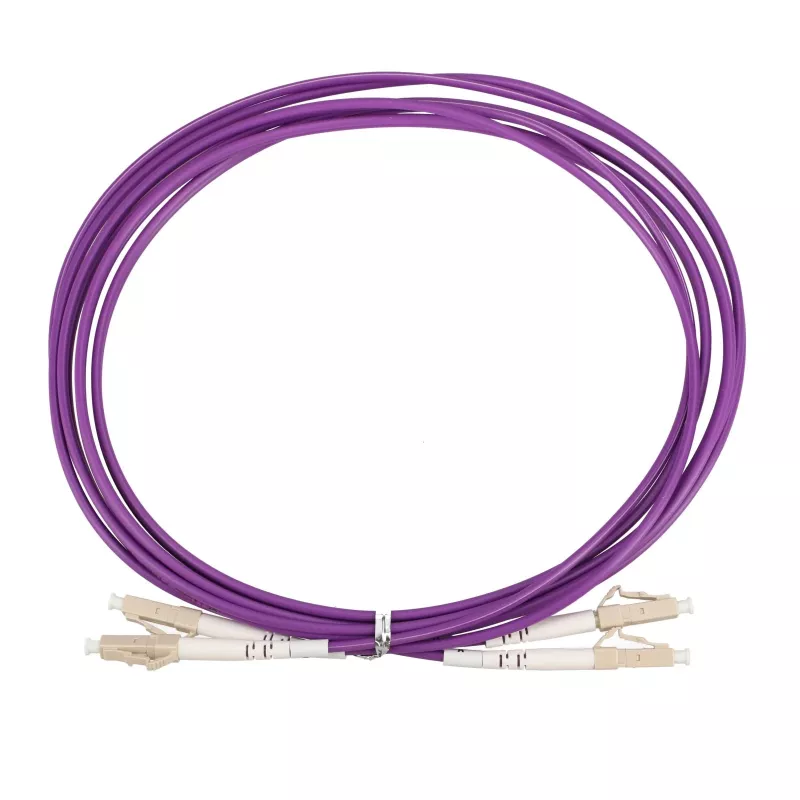

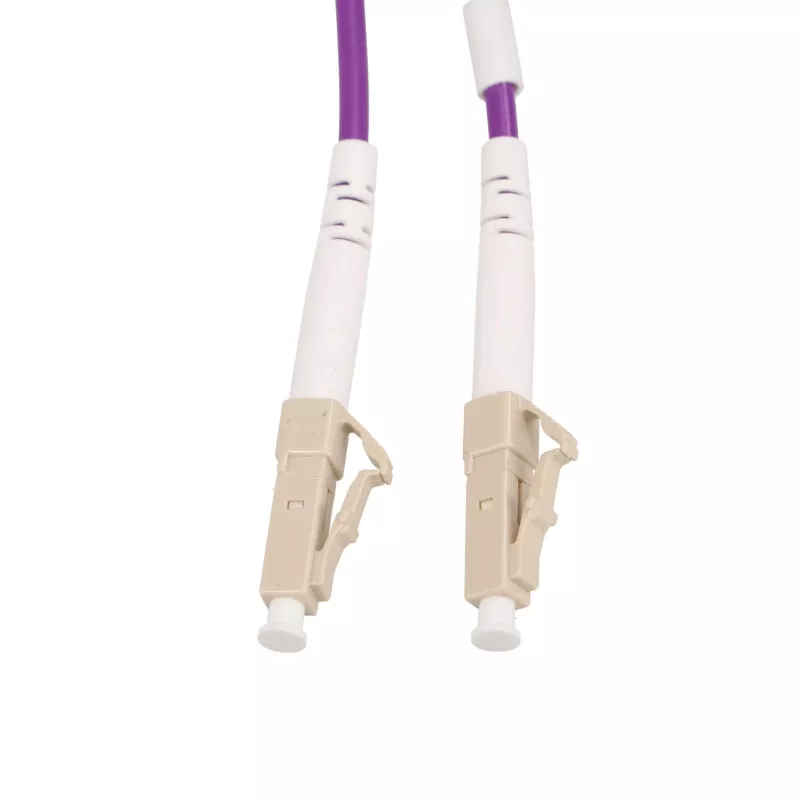

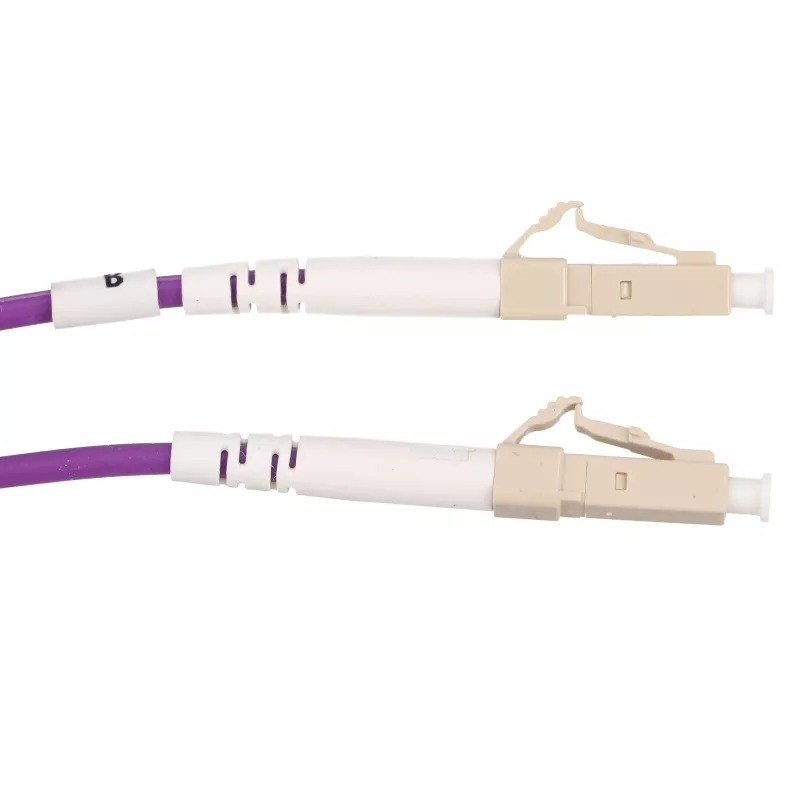

Extralink Καλώδιο patch LC/UPC σε LC/UPC, Multimode OM4 Duplex, 3,0 mm, 3 m

The Extralink LC/UPC to LC/UPC Patch Cord is a high-performance fiber optic cable designed for reliable data transmission in demanding network environments. With multimode OM4 fiber and duplex configuration, this patch cord ensures optimal bandwidth and low signal loss for 40G and 100G Ethernet applications.

Advantages

This patch cord offers exceptional bandwidth and low attenuation, making it ideal for high-speed data centers and enterprise networks. The LSZH jacket provides safety in confined spaces, while the durable 3.0mm diameter ensures flexibility and longevity.

Suitable for

• Data centers requiring high-density cabling
• Enterprise network infrastructure
• Telecommunications and server rooms
• High-speed data transmission up to 100G

Key specifications

• Connector Type: LC/UPC to LC/UPC
• Fiber Type: Multimode OM4
• Fiber Count: Duplex (2 fibers)
• Cable Length: 3 meters
• Cable Diameter: 3.0 mm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Bandwidth (850nm): 4700 MHz-km
• Bandwidth (1300nm): 500 MHz-km
• Attenuation (850nm): ≤ 2.3 dB/km
• Attenuation (1300nm): ≤ 0.6 dB/km
• Operating Temperature: -20°C to +70°C
• Standards: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This patch cord is compatible with standard LC interfaces and is suitable for use with OM4 transceivers.
