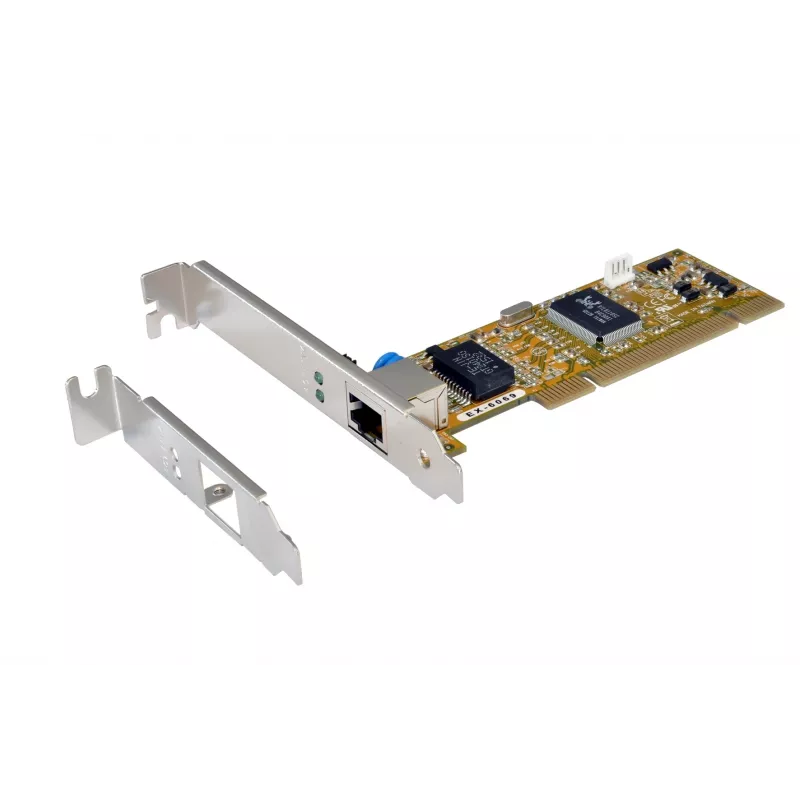

EXSYS PCI Κάρτα δικτύου Gigabit Ethernet EX-6069

Older desktop PCs often lack a Gigabit Ethernet port, limiting them to slow 100 Mbps connections. The EXSYS EX-6069 PCI Gigabit Ethernet Network Card solves this by adding a high-speed RJ-45 port to any standard PCI slot, enabling fast and reliable wired networking.

Who is it for

This card is ideal for users who need to upgrade a legacy desktop computer to Gigabit speeds for file transfers, streaming, or online gaming. It suits both home users and small offices looking to extend the life of existing hardware.

Main features

• Gigabit Ethernet: supports 10/100/1000 Mbps data transfer rates.
• PCI 32-bit interface: compatible with standard PCI slots in desktop PCs.
• Realtek RTL8169SC chipset: proven reliability and broad driver support.
• Auto-negotiation and Auto MDI/MDIX: automatically adjusts speed and cable type.
• Wake-on-LAN and Jumbo Frame support (up to 9KB).
• LED indicators for link and activity.

Specifications

• Host interface: PCI 32-bit
• Bus speed: 33/66 MHz
• Data transfer rate: 10/100/1000 Mbps
• Network ports: 1 x RJ-45
• Chipset: Realtek RTL8169SC
• Network standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1Q, 802.1P
• Flow control: IEEE 802.3x full duplex
• Auto-negotiation: Yes
• Auto MDI/MDIX: Yes
• Wake-on-LAN: Yes
• Jumbo Frame support: up to 9KB
• LED indicators: Link/Activity
• Operating system support: Windows 98SE to 10, Windows Server, Linux, Mac OS 10.x
• Form factor: Standard Profile PCI Card

Tips

Before installation, ensure your computer has a free PCI slot and that you download the latest drivers from the manufacturer's website for optimal performance.
