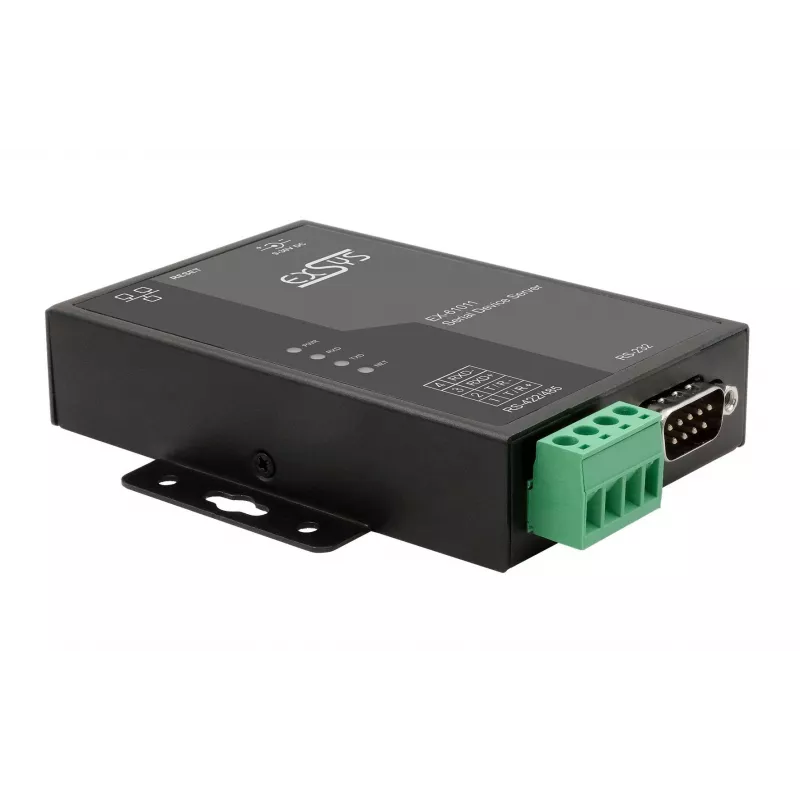

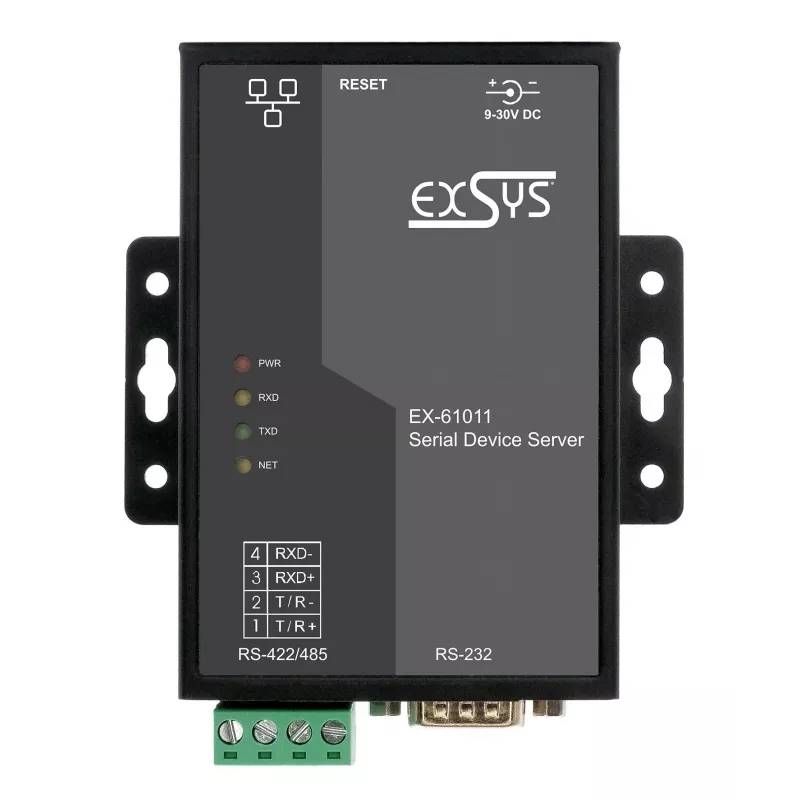

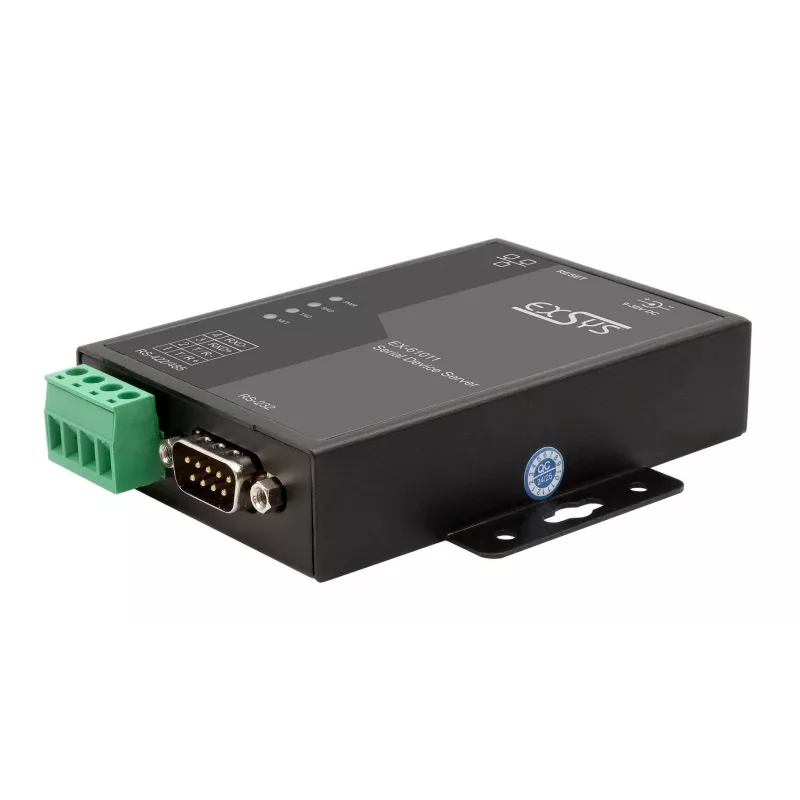

EXSYS EX-61011 σειριακός διακομιστής συσκευών RS-232/422/485 σε Ethernet

Connect legacy serial equipment to modern Ethernet networks with the EXSYS EX-61011, a rugged 1-port device server supporting RS-232, RS-422, and RS-485 interfaces. It delivers baud rates up to 230.4 Kbps and flexible power options with a 9-30V DC input.

Overview

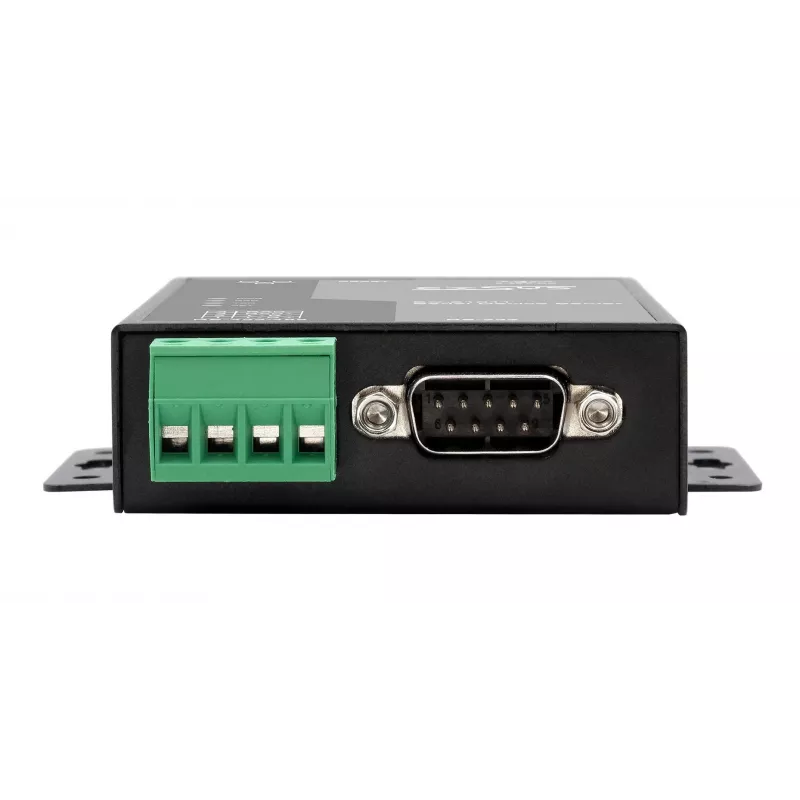

The EX-61011 bridges the gap between serial devices and IP-based systems. Its DB9 male connector accommodates RS-232, RS-422, or RS-485, while the auto-sensing 10/100 Mbps Ethernet port ensures seamless network integration. A metal housing provides durability for industrial environments.

What stands out

• Multi-interface support: RS-232, RS-422, and RS-485 in one device
• Wide input voltage range: 9-30V DC with included power adapter
• Web-based, Telnet, and Windows utility management
• Operating modes: Virtual COM, Serial Tunnel, TCP Server, TCP Client, UDP

Technical details

• 1 serial port (DB9 male), 1 Ethernet port (RJ45, 10/100 Mbps)
• Baud rate: 300 bps to 230.4 Kbps
• Data bits: 5, 6, 7, 8; Stop bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark
• Flow control: RTS/CTS, XON/XOFF, None
• Supported protocols: TCP/IP, UDP, ICMP, ARP, HTTP, DHCP, Telnet, DNS, SNMP, SMTP, NTP
• Operating temperature: 0°C to 55°C; storage: -20°C to 85°C
• Humidity: 5% to 95% RH (non-condensing)

Our verdict

A versatile and robust serial-to-Ethernet converter, ideal for industrial automation, POS systems, and legacy device networking.
