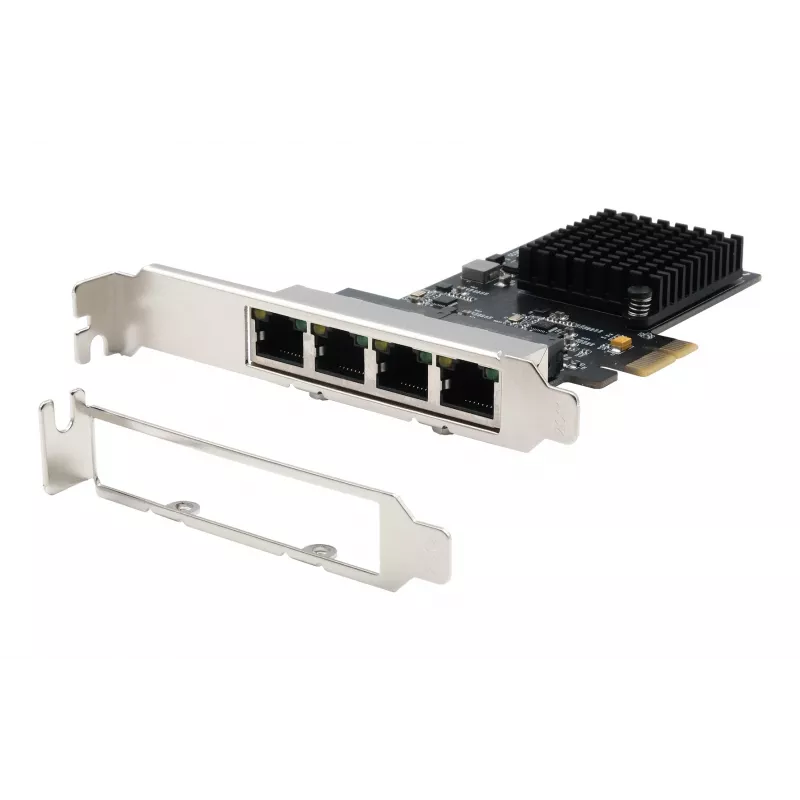

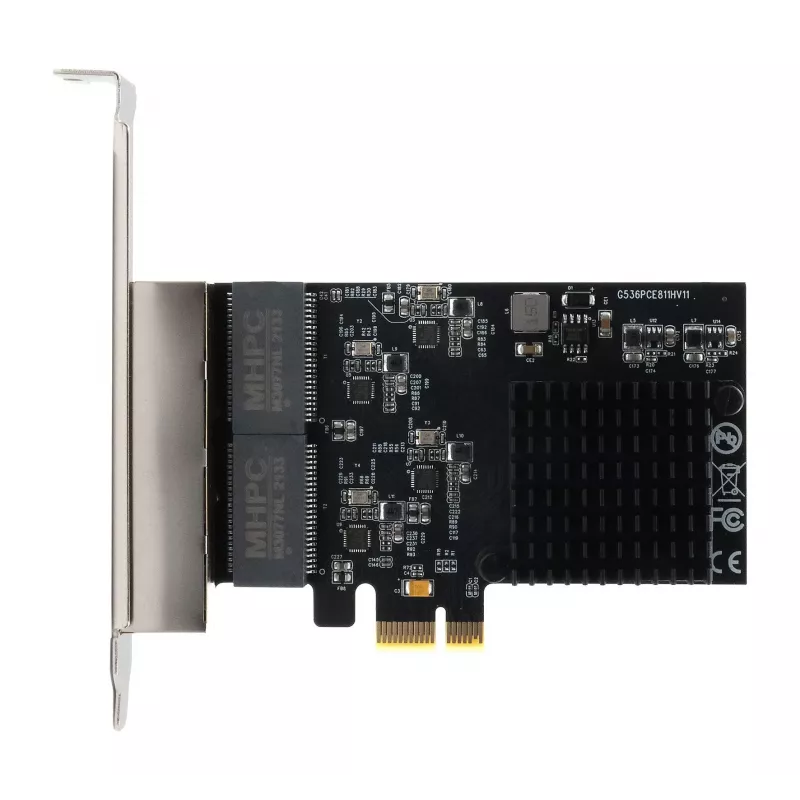

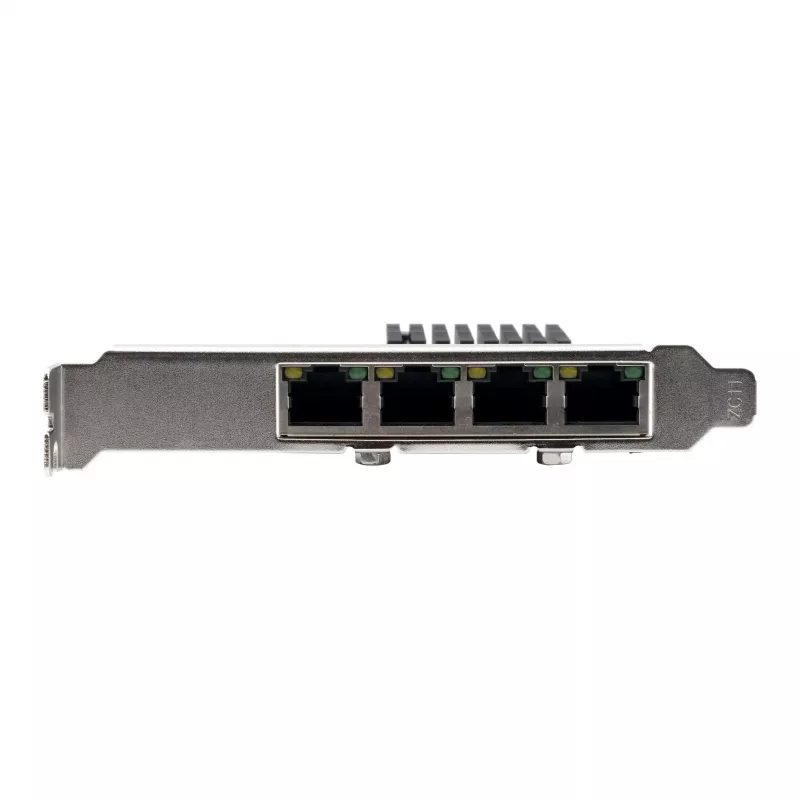

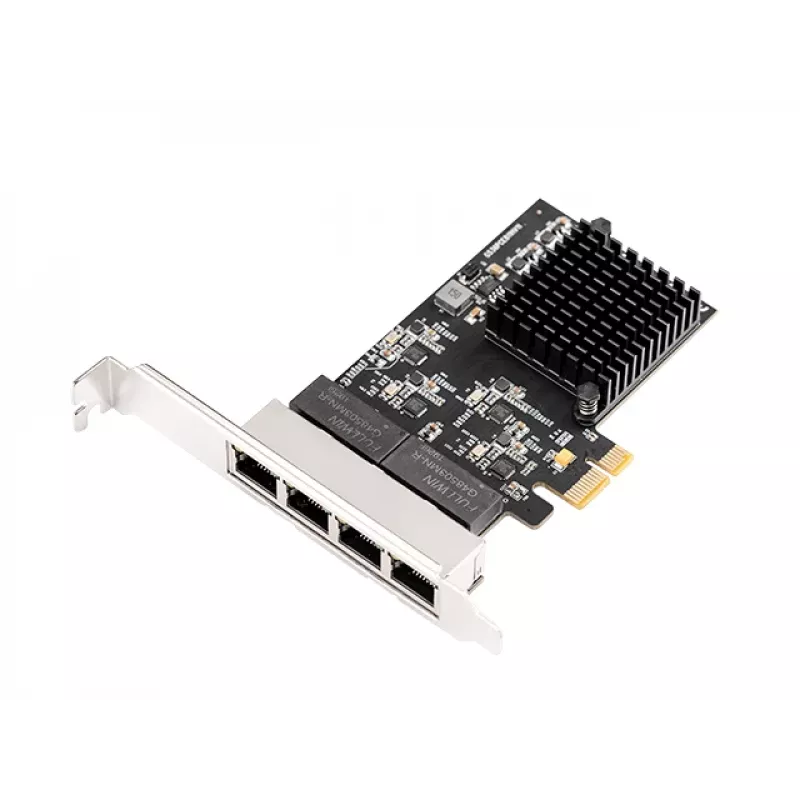

EXSYS EX-6083 PCIe x4 Gigabit Ethernet 4-Port Low-Profile Κάρτα δικτύου

The EXSYS EX-6083 stands out by packing four independent Gigabit Ethernet ports onto a single PCIe x4 card, driven by the proven Intel I350-T4 controller. This makes it a compact, low-profile solution for servers, workstations, or security appliances that demand multiple reliable network connections without sacrificing expansion slots.

Highlights

• Four RJ45 Gigabit Ethernet ports with 10/100/1000 Mbps auto-negotiation
• PCI Express x4 interface, PCIe 2.1, backward compatible
• Intel I350-T4 chipset for stable, hardware-accelerated networking
• Low-profile bracket installed, standard bracket included
• Supports VLAN tagging, link aggregation, jumbo frames up to 9.5 KB
• Wake-on-LAN and PXE boot for remote management

In daily use

This card excels in virtualized environments and network-heavy applications. With support for IEEE 802.1Q VLANs and link aggregation, you can segment traffic or combine ports for higher throughput and redundancy. Jumbo frame support reduces CPU overhead when transferring large files, and flow control (IEEE 802.3x) prevents packet loss under load. The low-profile form factor allows installation in slim desktops and 1U/2U rack servers, while the included standard bracket covers full-height cases.

Full specifications

• Host interface: PCI Express x4, PCIe 2.1
• Ports: 4x RJ45, Gigabit Ethernet (10/100/1000 Mbps)
• Controller: Intel I350-T4
• Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1Q, 802.1p
• Jumbo frame support: up to 9.5 KB
• VLAN support: IEEE 802.1Q
• Link aggregation (teaming): Yes
• Wake-on-LAN: Yes
• PXE boot support: Yes
• Flow control: IEEE 802.3x
• LED indicators: Link/Activity per port
• Form factor: Low profile (standard bracket included)

Final note

For IT professionals needing a dependable multi-port Gigabit adapter with broad OS support, the EXSYS EX-6083 delivers enterprise-grade features in a space-saving design.
