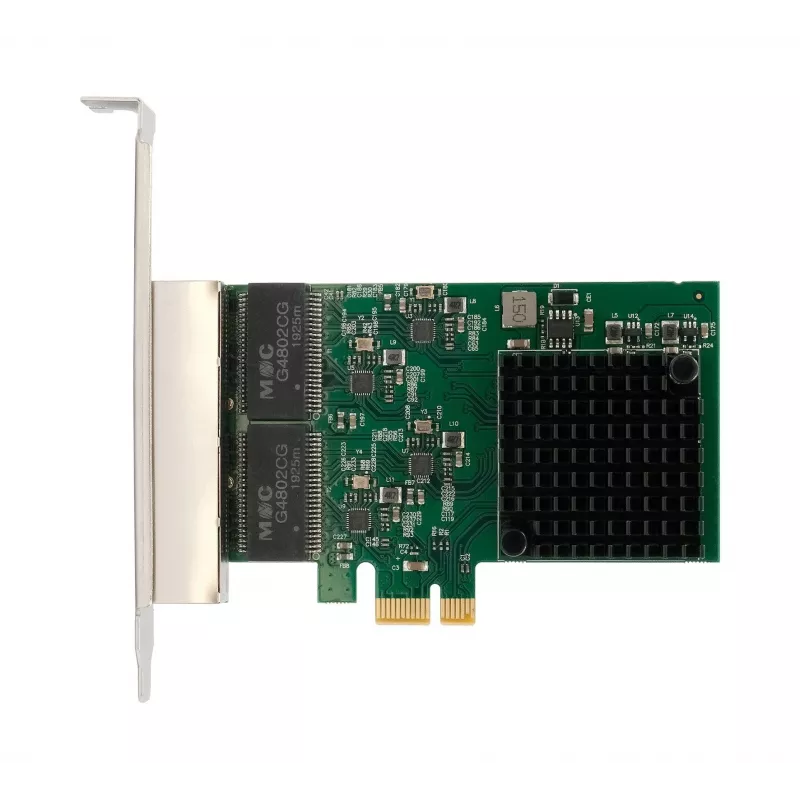

EXSYS EX-60104 Quad 1 Gigabit Ethernet PCIe x1 κάρτα (Realtek RTL8111H)

When a server or workstation needs more wired network ports than the motherboard provides, the EX-60104 solves the problem with four independent Gigabit Ethernet interfaces on a single PCIe x1 card. It is a straightforward way to add capacity for virtualisation, routing, or link aggregation without replacing the host system.

Who is it for

System integrators, homelab builders, and IT administrators who need multiple physical LAN segments or redundant uplinks in a compact, low-profile-compatible form factor. The card fits standard and low-profile chassis and works with Windows, Linux, and macOS.

Main features

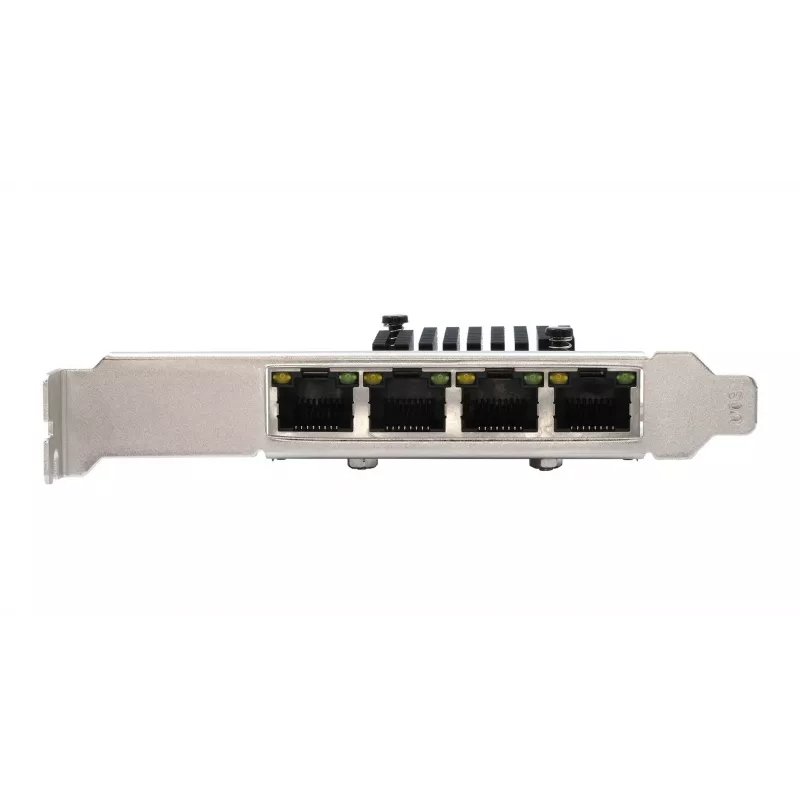

• Four RJ45 Gigabit Ethernet ports, each driven by a dedicated Realtek RTL8111H controller
• PCI Express x1 host interface, compatible with x4, x8, and x16 slots
• Supports 10/100/1000 Mbps data rates with auto-negotiation and full duplex
• Jumbo frame support up to 9K bytes for efficient large transfers
• Wake-on-LAN and PXE boot support for remote management and deployment
• LED indicators for link status and activity on each port

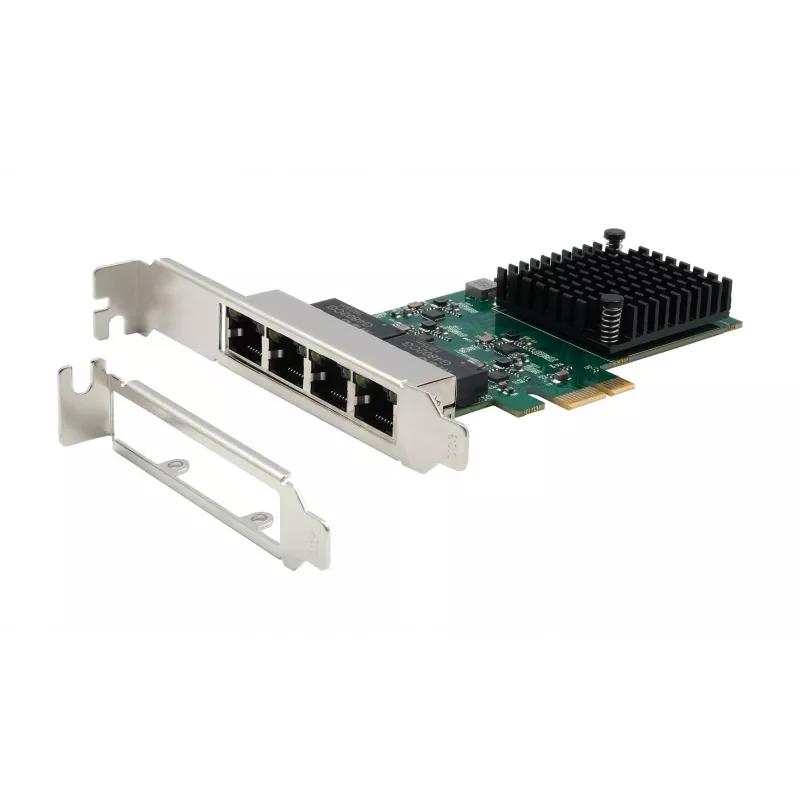

• Includes low-profile bracket for slim chassis

Specifications

• Host interface: PCI Express x1
• Ethernet ports: 4 x RJ45
• Data transfer rate: 10/100/1000 Mbps
• Chipset: 4x Realtek RTL8111H
• PCIe standard: PCI Express 1.1
• Jumbo frame support: up to 9K bytes
• Wake-on-LAN: Yes
• PXE boot support: Yes
• LED indicators: Link/Activity per port
• Full duplex support: Yes
• Auto-negotiation: Yes
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.1Q VLAN, 802.3x Flow Control
• Operating system support: Windows (XP/Vista/7/8/10/11, Server 2003/2008/2012/2016/2019/2022), Linux, macOS
• Form factor: Standard profile (low-profile bracket included)
• Cabling: Cat. 5e or higher UTP/STP
• Operating temperature: 0°C to 55°C
• Storage temperature: -20°C to 70°C
• Humidity: 5% to 95% non-condensing

Tips

For best performance, use Cat. 5e or better cabling and ensure the PCIe slot provides adequate airflow. The card is ideal for virtualised environments where each VM can be assigned a dedicated physical port.
