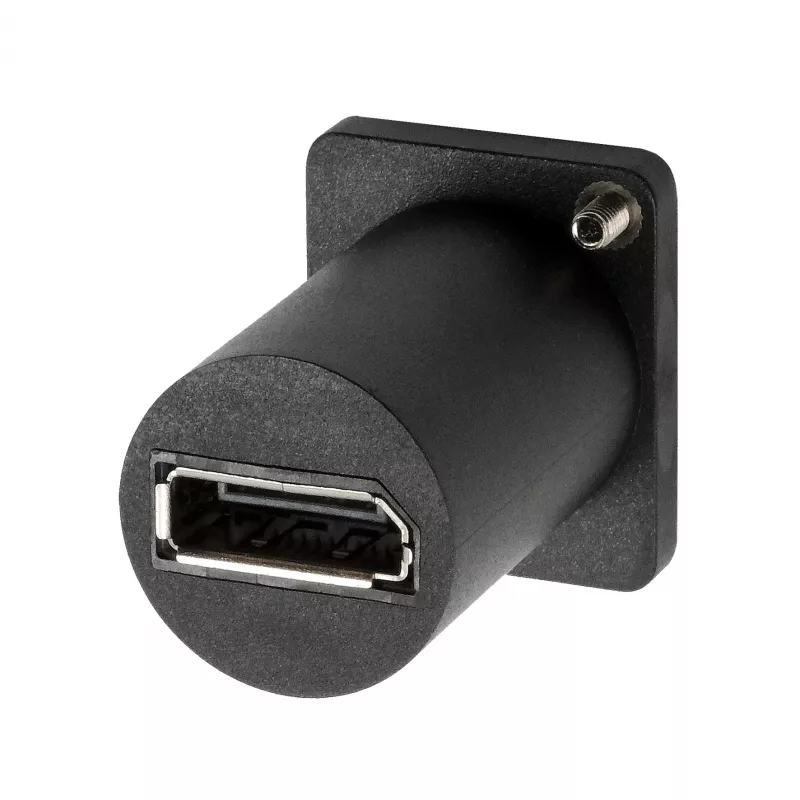

EXSYS EX-49172 Προσαρμογέας Τύπου D Υποδοχή USB-C σε Υποδοχή DisplayPort

Integrate a USB-C source into a DisplayPort infrastructure with the EXSYS EX-49172 D-Type panel-mount adapter. Designed for AV installers and system integrators, this adapter provides a robust USB-C female port on one end and a DisplayPort female port on the other, allowing you to connect a USB-C device to a DisplayPort display or cable. Its D-Type form factor enables secure mounting in panels, walls, or desks, making it ideal for permanent installations in conference rooms, classrooms, and control centers.

Key specifications

• Connector 1: USB-C Female
• Connector 2: DisplayPort Female
• DisplayPort Standard: 1.4
• Maximum Resolution: 7680 x 4320 @ 30Hz (8K), 3840 x 2160 @ 120Hz (4K), 2560 x 1440 @ 144Hz (2K)
• HDR Support: Yes
• HDCP Version: 2.2
• USB-C Feature: DisplayPort Alternate Mode
• Housing Material: Metal
• Colour: Black
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -10°C to 80°C
• Humidity Range: 10% to 85% RH (non-condensing)
• Audio Support: Yes (via DisplayPort)
• Power Source: Bus-powered from USB-C source

Why choose it

The EX-49172 delivers high-resolution video and audio with support for 8K at 30Hz, making it suitable for demanding digital signage and high-end displays. Its metal housing and D-Type mounting ensure durability and a professional finish in permanent installations. The adapter is bus-powered, requiring no external power supply, and supports HDCP 2.2 for protected content.

Ideal use cases

• Connecting USB-C laptops to DisplayPort monitors in corporate environments
• Integrating USB-C sources into existing DisplayPort-based AV systems
• Panel-mount applications in podiums, conference tables, or wall plates
• Digital signage and video walls requiring high-resolution output

Good to know

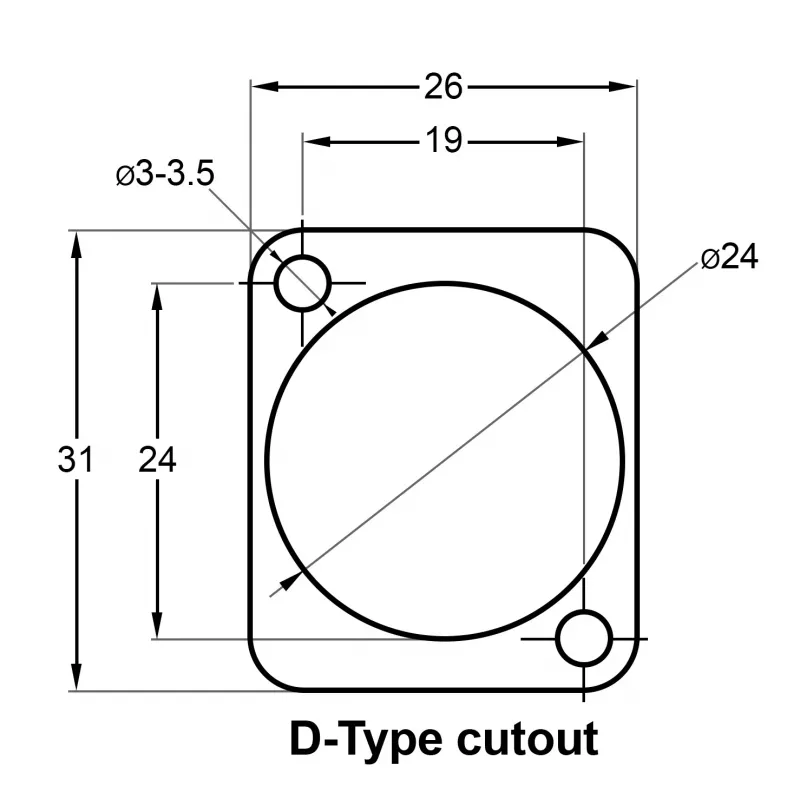

The adapter uses USB-C DisplayPort Alternate Mode, so the source device must support this feature. It is compatible with DisplayPort 1.4 and earlier standards. The D-Type form factor allows for clean cable management and secure connections in fixed installations.
