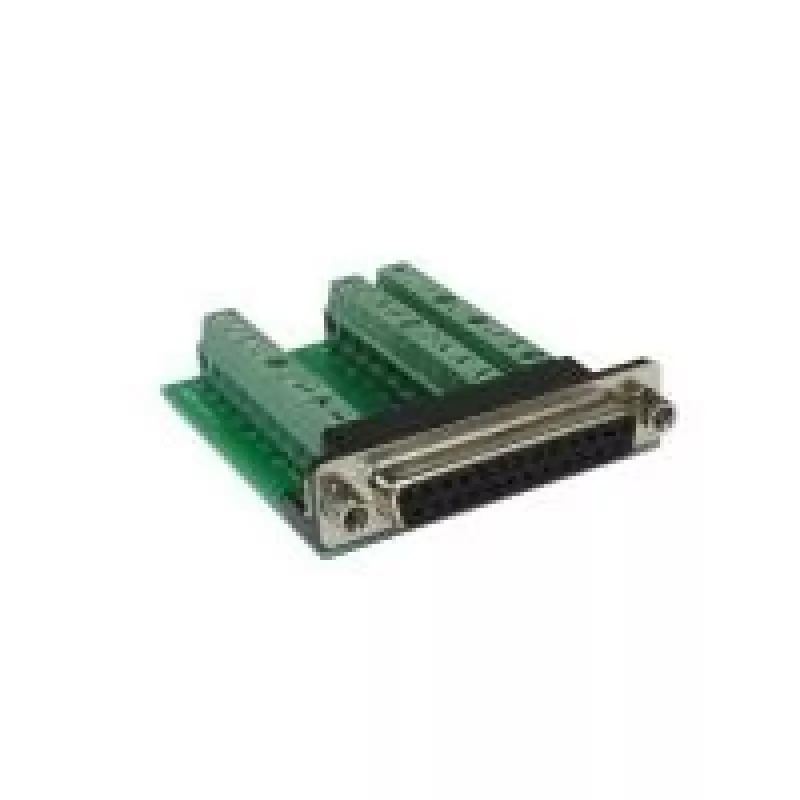

EXSYS EX-49030 Προσαρμογέας 25-pin D-Sub υποδοχή θηλυκή σε 27-pin Terminal Block

This D-SUB to screw terminal adapter converts a 25-pin D-SUB male connector to a 27-pin screw terminal block, enabling easy wiring for serial communication and industrial control applications. The green terminal block accepts wires from 0.2 mm² to 2.5 mm² (24-14 AWG) and features a direct 1:1 pin assignment.

Advantages

Simplifies connection of field wiring to D-SUB interfaces without soldering. Integrated mounting holes allow secure panel installation. The silver metal D-SUB shell and green plastic terminal block provide durable construction.

Suitable for

• RS232, RS485, and RS422 serial connections
• Industrial control panels
• Prototyping and testing setups

Key specifications

• Connector 1: D-SUB male, 25-pin
• Connector 2: Screw terminal block, 27-pin
• Wire gauge: 0.2 mm² to 2.5 mm² (24-14 AWG)
• Pin assignment: 1:1 direct
• Operating temperature: -20°C to 85°C
• RoHS compliant

Recommendations

Ideal for integrating serial devices with screw terminal connections in industrial environments.
