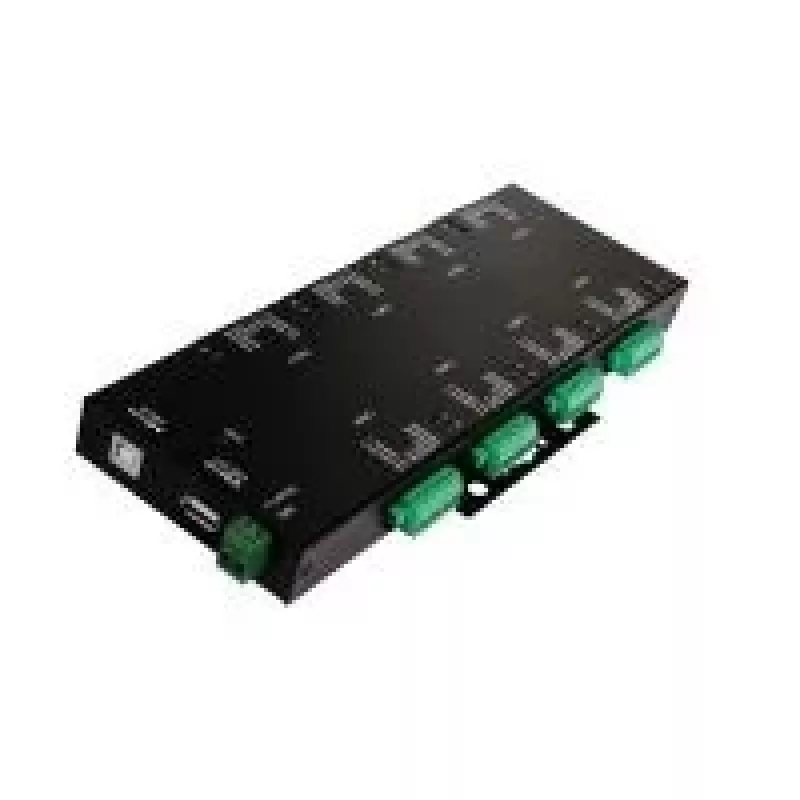

EXSYS EX-1339HMV hub USB 2.0 σε 8 θύρες σειριακές RS-232/422/485, μεταλλικό

The EXSYS EX-1339HMV consolidates eight serial ports into a single USB 2.0 connection, supporting RS-232, RS-422, and RS-485 standards per port. Its metal housing and 2.5 kV optical isolation suit industrial environments where electrical noise and ground loops are common.

Highlights

• 8x DB9 male serial ports, each configurable for RS-232, RS-422, or RS-485
• USB 2.0 Type-B upstream, backward compatible with USB 1.1
• FTDI chipset with drivers for Windows, Linux, and macOS
• 15 kV ESD protection and 2.5 kV optical isolation
• Metal housing, wall mountable, optional DIN-rail kit

In daily use

Connect legacy serial devices such as barcode scanners, PLCs, or industrial sensors to a modern computer. Each port operates independently with baud rates up to 921.6 kbps. The external 9–24 V DC power supply (included) ensures stable operation even when all ports are active.

Full specifications

• Host interface: USB 2.0 Type-B
• Serial ports: 8x DB9 male, RS-232/422/485 selectable
• Max baud rate: 921.6 kbps
• Data bits: 7, 8; Stop bits: 1, 2; Parity: None, Even, Odd, Mark, Space
• Flow control: RTS/CTS, XON/XOFF, None
• Optical isolation: 2.5 kV; ESD protection: 15 kV
• Power input: 9–24 V DC, external supply included
• Operating temperature: -20°C to 70°C
• LED indicators: Power, Tx/Rx per port

Final note

A rugged multi-port serial hub for demanding industrial connectivity.
