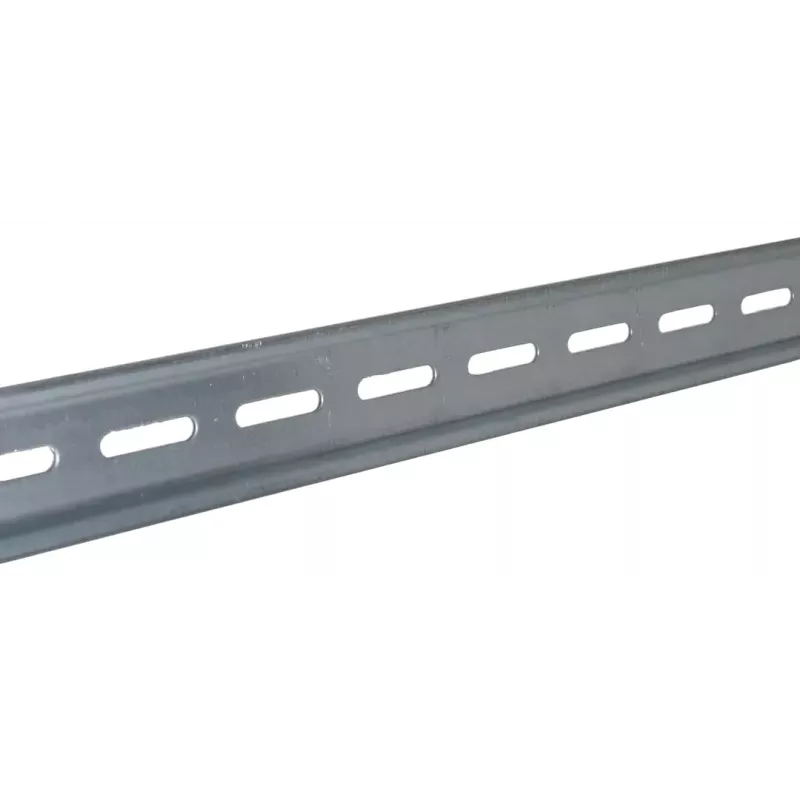

ETI TH35x7,5/A Ράγα DIN, 2 m, γαλβανισμένος χάλυβας (002911025)

DIN rail for mounting modular electrical devices. The TH35x7.5/A profile provides a 35 mm wide, 7.5 mm high top-hat mounting surface in a 2-meter length, made from galvanized steel for corrosion resistance.

Advantages

Galvanized steel construction resists corrosion, ensuring long-term reliability in electrical enclosures. The unperforated design provides a solid, continuous mounting surface without pre-drilled holes, allowing flexible positioning of devices.

Suitable for

• Mounting modular electrical devices conforming to DIN EN 60715
• Distribution boards, control panels, and industrial enclosures
• Applications requiring a standard 35 mm top-hat rail

Key specifications

• Profile type: Top Hat (TH)
• Standard profile designation: TH35x7.5
• Length: 2000 mm
• Width: 35 mm
• Height: 7.5 mm
• Material: Galvanized steel
• Perforation: Unperforated (solid)
• Standard compliance: EN 60715
• Mounting method: Screw-on
• Operating temperature range: -25°C to +70°C

Recommendations

For secure mounting of modular devices in industrial and commercial electrical installations.
