ESYLUX PD-C 360i/12 mini KNX Παθητικός υπέρυθρος αισθητήρας (PIR) - Οροφής - 12m - Λευκό

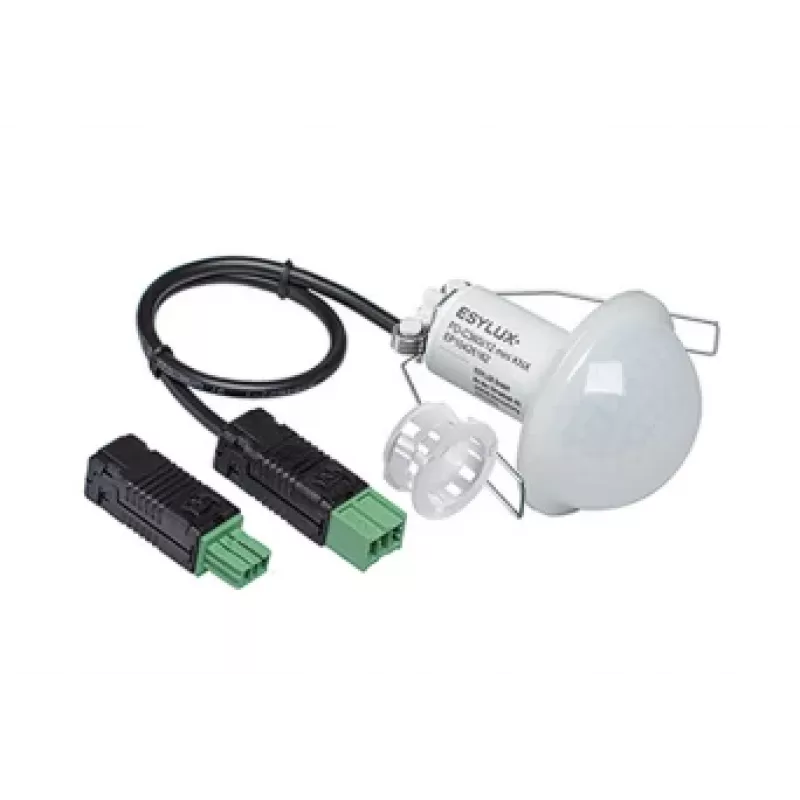

The ESYLUX PD-C 360i/12 mini KNX is a high-performance passive infrared (PIR) presence and motion detector designed for ceiling recessed mounting. It integrates seamlessly into KNX building automation systems, offering precise detection and constant light control for energy-efficient indoor environments.

Advantages

This sensor combines presence detection, constant light control, and HVAC management in a single compact device. With a 360° detection angle and a 12-meter diameter range, it covers large areas reliably. The integrated light sensor measures ambient light from 10 to 2000 lux, enabling automatic lighting adjustment. Its KNX bus connectivity ensures easy integration and low power consumption (<0.5 W).

Suitable for

• Office spaces and meeting rooms
• Classrooms and lecture halls
• Open-plan areas and corridors
• Commercial and industrial buildings

Key specifications

• Sensor type: Passive Infrared (PIR)
• Connectivity: KNX Bus (wired)
• Mounting: Ceiling recessed (cut-out Ø37 mm, depth 34 mm)
• Detection angle: 360°
• Detection range (diameter): 12 m
• Recommended mounting height: 2.5 m
• Light measurement range: 10 - 2000 lux
• Operating voltage: KNX Bus (21-30V DC)
• Protection rating: IP20
• Operating temperature: -25 to +50 °C
• Colour: White
• Material: UV-stabilised polycarbonate
• Power consumption: <0.5 W
• Control channels: 3 (Light, HVAC, Presence)
• Detection zones: 1120 switching segments

Recommendations

For optimal performance, install at the recommended height of 2.5 m and ensure the sensor has a clear view of the area. Pair with KNX actuators and DALI gateways for advanced lighting control.
