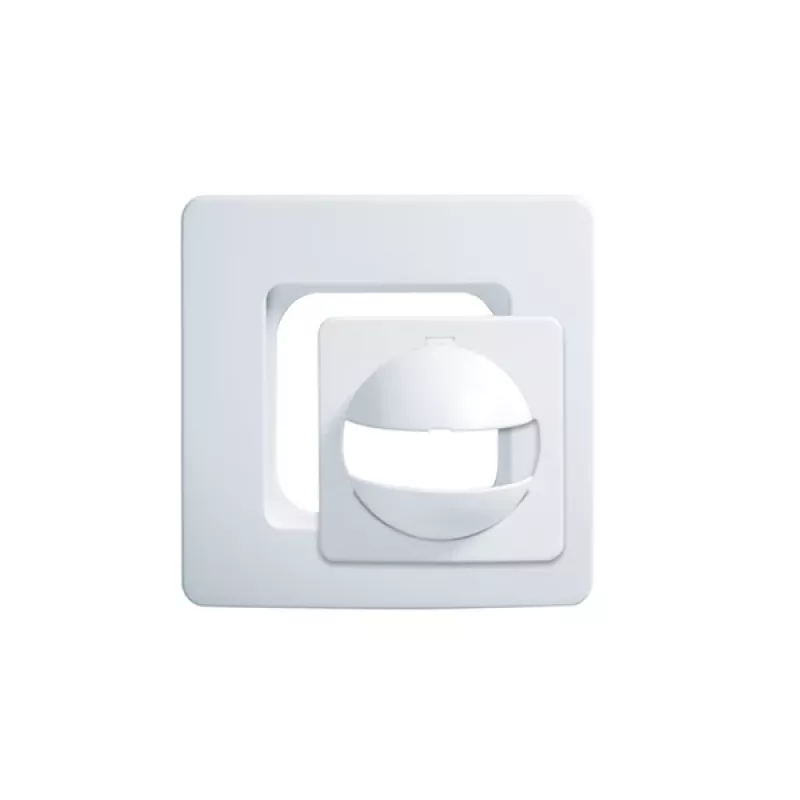

ESYLUX EM10055119 360° PIR Motion Detector White Surface Mount 8m Range 230V

The ESYLUX EM10055119 is a high-quality passive infrared (PIR) motion detector designed for indoor surface mounting. With a 360° detection angle and an 8 m diameter range (at 2.5 m mounting height), it is ideal for monitoring corridors, stairwells, and small offices. The detector operates at 230 V AC and features a relay output for switching lighting loads up to 2300 W incandescent or 300 W LED. Its adjustable light sensor (5–2000 lux) and time delay (10 s–30 min) provide flexible automation. The white UV-stabilised polycarbonate housing ensures durability and a clean aesthetic.

Advantages

Reliable 360° PIR detection with a wide 8 m diameter range. Energy-efficient standby power consumption below 0.5 W. Easy surface mounting with adjustable settings for light threshold and time delay. Suitable for both incandescent and LED loads up to 300 W. Robust UV-stabilised polycarbonate material ensures long life.

Suitable for

• Corridors and hallways
• Stairwells
• Small offices
• Storage rooms
• Indoor areas requiring automatic lighting control

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range (diameter): 8 m at 2.5 m mounting height
• Recommended mounting height: 2.0–4.0 m
• Operating voltage: 230 V AC, 50/60 Hz
• Max. switching power (incandescent): 2300 W
• Max. switching power (LED): 300 W
• Light sensor range: 5–2000 lux
• Time delay range: 10 s–30 min
• Protection class: IP20
• Colour: White
• Standby power consumption: <0.5 W
• Ambient temperature: 0°C to +50°C
• Material: UV-stabilised polycarbonate
• Control output: Relay (NO contact)
• Dimensions: 87 mm x 87 mm x 32 mm (height x width x depth)
• Weight: 32 g

Recommendations

For optimal performance, mount at 2.5 m height and avoid direct sunlight or heat sources. Use with compatible ESYLUX accessories for extended functionality.
