ESYLUX BASIC EXPR MD 360° 08 IR 1C FM IP23 WH Ανιχνευτής κίνησης

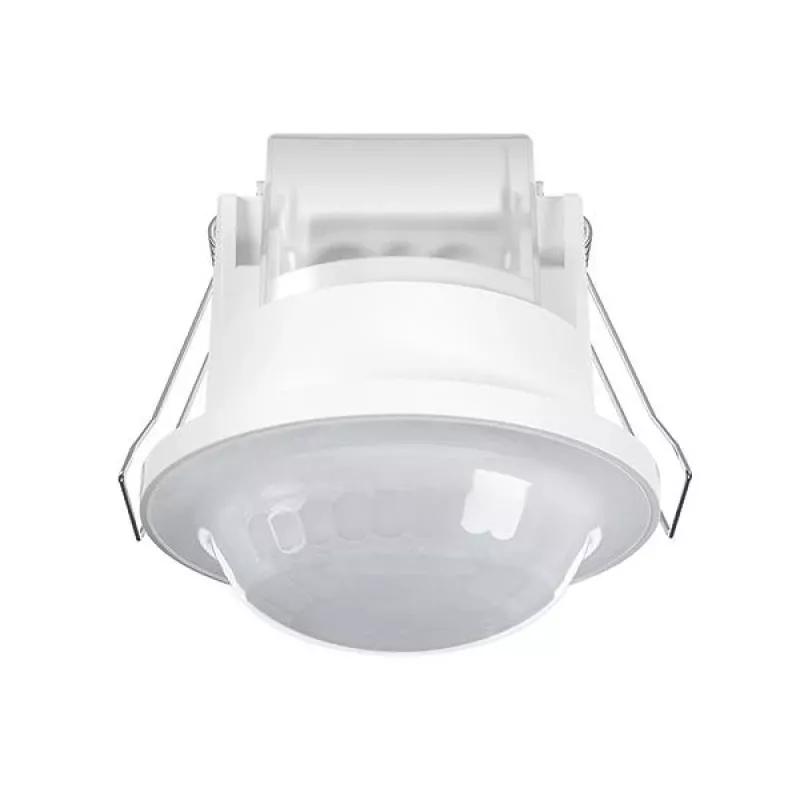

The ESYLUX BASIC EXPR MD 360° 08 IR 1C FM IP23 WH is a passive infrared (PIR) motion detector designed for ceiling flush-mounting. It offers a 360° detection angle and an 8 m detection range at 2.5 m mounting height, making it ideal for indoor lighting control in offices, corridors, and small rooms.

Advantages

Energy-efficient automatic lighting control with adjustable time delay (10 s to 30 min) and brightness threshold (5-2000 lux). Low standby power consumption (<0.5 W) and optional manual override or remote control.

Suitable for

• Ceiling-mounted indoor lighting control
• Offices, meeting rooms, corridors, stairwells
• Small to medium-sized rooms

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range: 8 m (diameter at 2.5 m height)
• Mounting: Ceiling flush-mounted
• IP rating: IP23
• Colour: White
• Supply voltage: 230 V AC, 50 Hz
• Switching capacity (resistive): 2300 W
• Switching capacity (LED): 300 W
• Time delay: 10 s - 30 min
• Brightness threshold: 5 - 2000 lux
• Mounting height: 2.0 - 4.0 m
• Channels: 1 (Light)
• Standby power: <0.5 W
• Operating temperature: -25 °C to +50 °C
• Material: UV-stabilised polycarbonate
• Ceiling cut-out: 60 mm

Recommendations

For optimal performance, mount at 2.5 m height and ensure clear line of sight. Use with compatible ESYLUX remote control for advanced settings.
