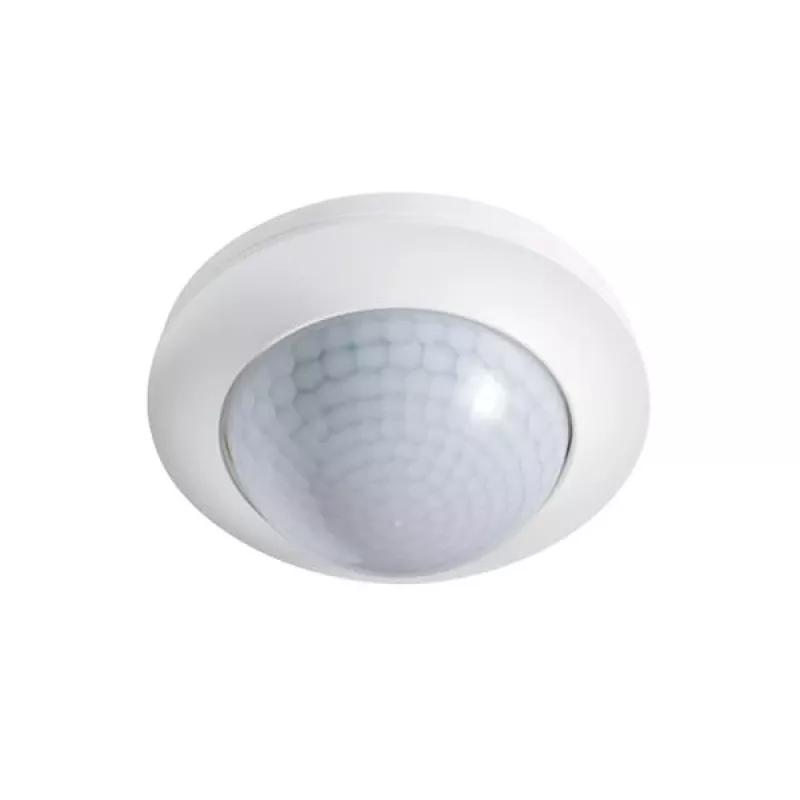

ESYLUX Ανιχνευτής παρουσίας PD-C 360/24 BMS DALI-2

The ESYLUX PD-C 360/24 BMS DALI-2 is a high-performance ceiling-mounted presence detector designed for professional building management. With a 360° detection angle and a large presence detection area of up to 50 m², it ensures reliable occupancy sensing in offices, meeting rooms, and commercial spaces. The device integrates seamlessly into DALI-2 and BMS systems, enabling constant light control, presence-dependent HVAC control, and scene recall.

Advantages

Energy-efficient operation with only 0.5 W power consumption, mixed light measurement for precise constant light control, and compatibility with DALI-2 broadcast or group channels for up to 20 ECGs. The UV-stabilised polycarbonate housing in white (RAL 9010) ensures durability and a clean aesthetic.

Suitable for

• Office buildings and conference rooms
• Educational facilities and libraries
• Commercial and retail spaces
• Healthcare and hospitality environments

Key specifications

• Detection angle: 360°
• Presence detection area (3m height): Ø 8 m (50 m²)
• Movement detection area (3m height): Ø 24 m (452 m²)
• Mounting: Ceiling flush-mounted, cut-out Ø 68 mm
• Supply voltage: 110–240 V AC, 50/60 Hz
• Interface: DALI-2 (Master) and BMS
• IP rating: IP20
• Operating temperature: -25 °C to +50 °C

Recommendations

For optimal performance, mount at 2.5–3.5 m height (recommended 3 m). Use optional remote control or DALI-2 bus for configuration. Ideal for projects requiring energy-efficient, intelligent lighting and HVAC control.
