Εσωτερικός προσαρμογέας SATA DeLOCK 95264

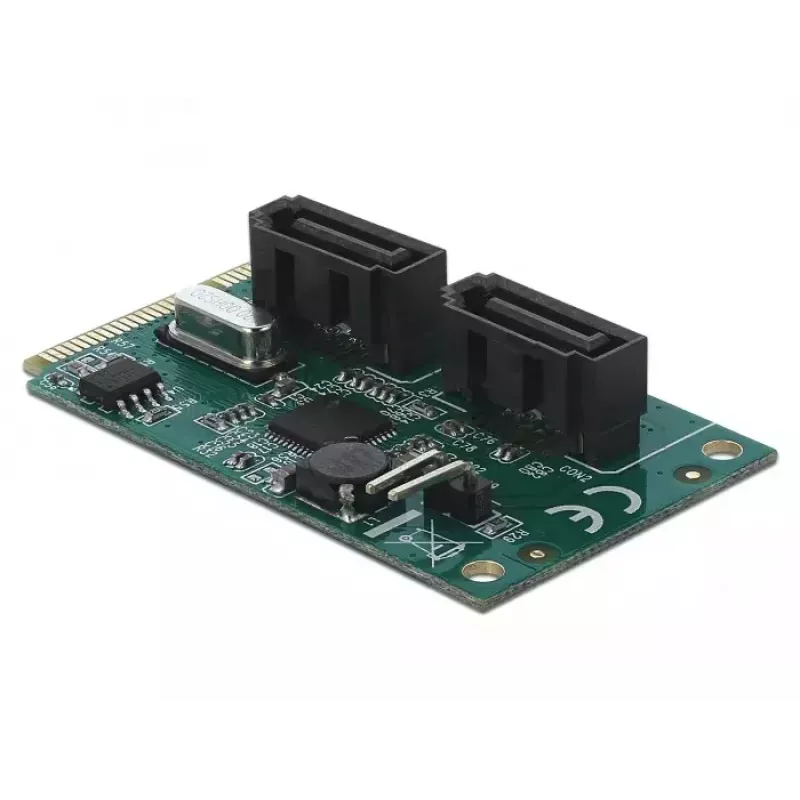

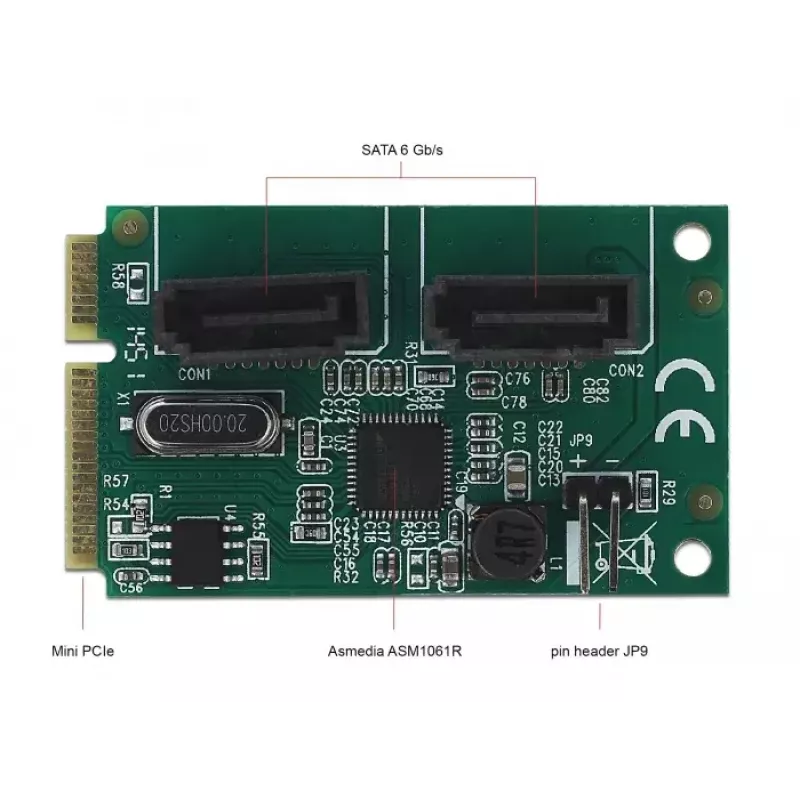

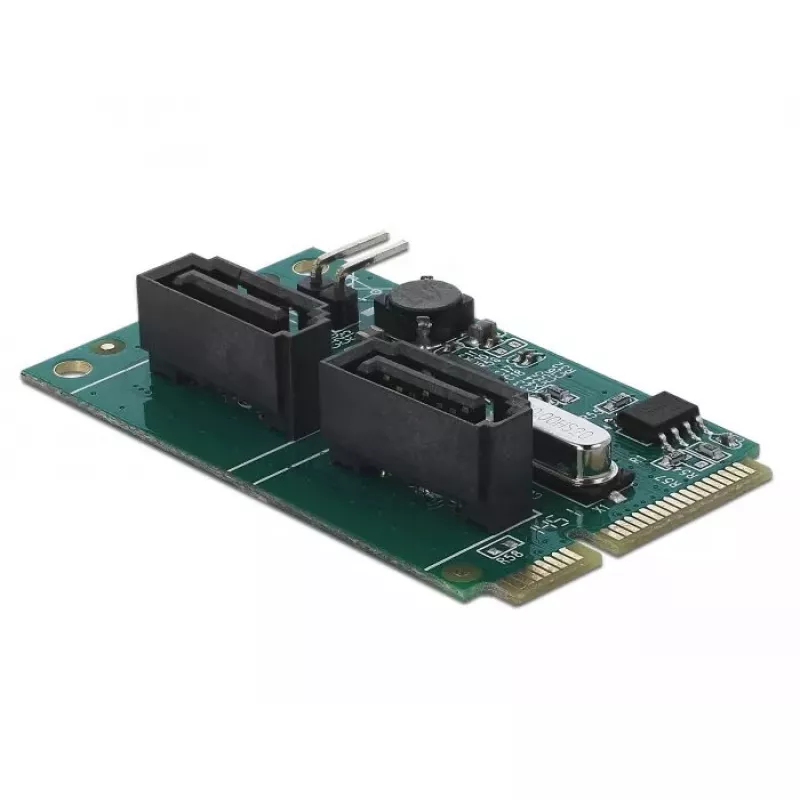

The Internal SATA Adapter DeLOCK 95264 is an internal PCIe card that adds two SATA ports to a system, providing SATA output at up to 6 Gbit/s. The card supports chipset-based RAID modes including RAID 0, RAID 1 and SPAN to combine or mirror connected drives. Management and configuration of the RAID mode is handled by the adapter's chipset and is not accessible through the operating system or BIOS. Compatible host interface: PCIe. Compatible with Windows 10, 8.1, 8 and 7.

Advantages

This adapter expands available internal storage connections by adding two SATA ports while offering hardware-level support for RAID 0, RAID 1 and SPAN. With a 6 Gbit/s SATA bandwidth it supports modern SATA drives and SSDs. The PCIe host interface provides a direct internal connection without requiring external power or hubs. The chipset-based RAID implementation performs RAID functions independently of the OS or BIOS.

Suitable for

Key specifications

How to use

Install the adapter into an available PCIe slot on the motherboard and secure it in the chassis. Connect up to two SATA drives to the adapter’s SATA ports using standard SATA cables and provide drive power from the system power supply. The adapter’s chipset manages RAID functions; select the desired RAID mode according to the adapter’s hardware procedure or documentation. Because RAID management is chipset-based, no RAID configuration is available through the operating system or BIOS.

Recommendations

Before installing, back up important data and verify that your case has an available PCIe slot and free SATA power connectors. Use identical drive models for RAID 1 or RAID 0 to achieve consistent performance and capacity. Consult the adapter documentation for chipset-specific instructions when changing RAID modes.
