Εσωτερικός προσαρμογέας SATA DeLOCK 62961

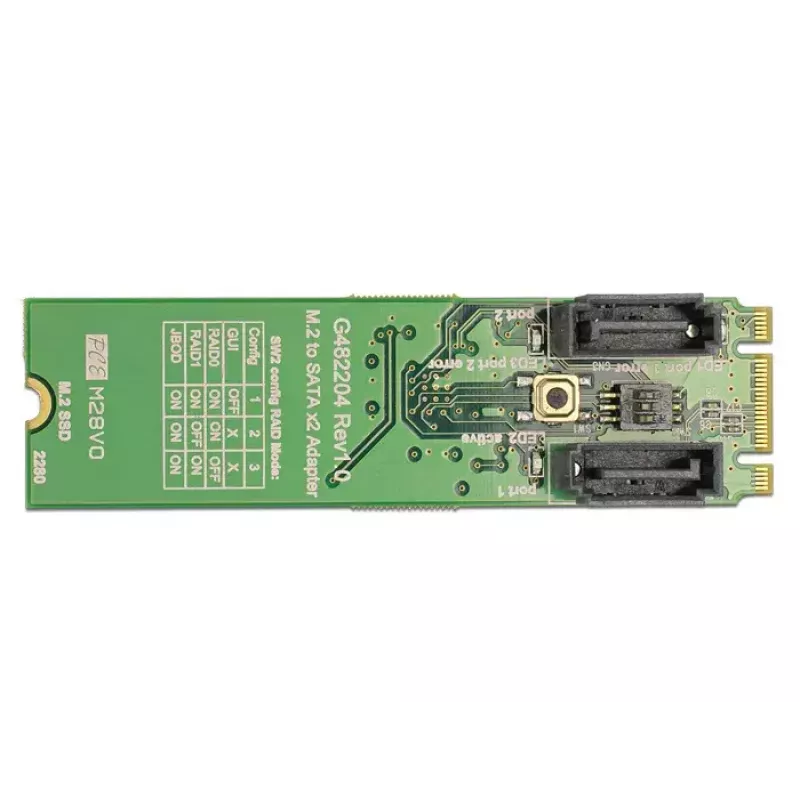

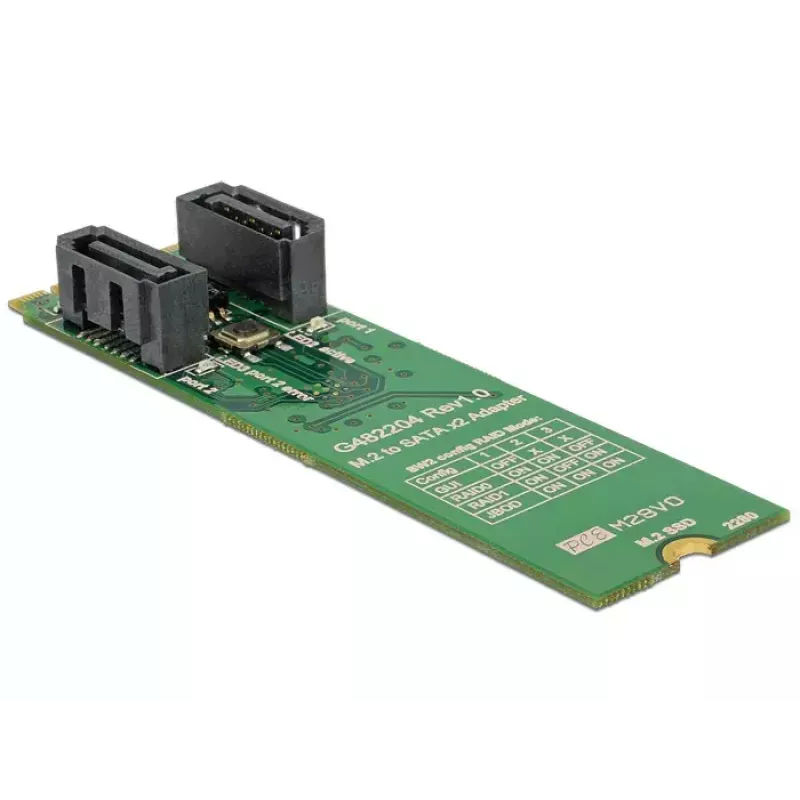

The DeLOCK 62961 is an internal SATA adapter with an M.2 host interface and two SATA outputs. Powered by the Asmedia ASM1092R chipset, the adapter supports data transfer rates up to 6 Gbit/s and is available in a green design. It enables expansion of a system's SATA connectivity and supports RAID 0, RAID 1 and JBOD configurations for flexible storage setups.

Advantages

The internal SATA adapter provides two additional SATA ports via an M.2 connection, supports standard SATA transfer speeds up to 6 Gbit/s and offers hardware compatibility through the Asmedia ASM1092R chipset. Built for internal installation, it features a compact form factor (22 × 80 × 11 mm) and comes packaged in a box for storage and transport.

Suitable for

• Adding two internal SATA ports to a system with an available M.2 slot
• Building small RAID arrays (RAID 0, RAID 1) or using JBOD for multiple drives
• Compact PC builds and systems with limited drive bays

Key specifications

• Host interface: M.2
• Output interface: SATA (2 ports)
• Chipset: Asmedia ASM1092R
• Supported modes: RAID 0, RAID 1, JBOD
• Max. transfer rate: 6 Gbit/s
• Internal: Yes
• Colour: Green
• Dimensions: 22 × 80 × 11 mm

How to use

Install the adapter into an appropriate M.2 slot inside the computer following the system manufacturer's instructions for M.2 devices. Connect SATA drives to the adapter's SATA outputs with standard SATA cables. Configure RAID modes (RAID 0, RAID 1) or JBOD in the system BIOS/UEFI or via the host controller software as required. Ensure the system is powered off during installation and that drives are secured before powering the system back on.

Recommendations

Verify M.2 slot compatibility and available lanes in your motherboard documentation before installation. When using RAID, back up important data prior to array creation and follow recommended procedures for drive matching and secure mounting to reduce vibration and improve reliability.
