Εσωτερικός προσαρμογέας mSATA DeLOCK 62545

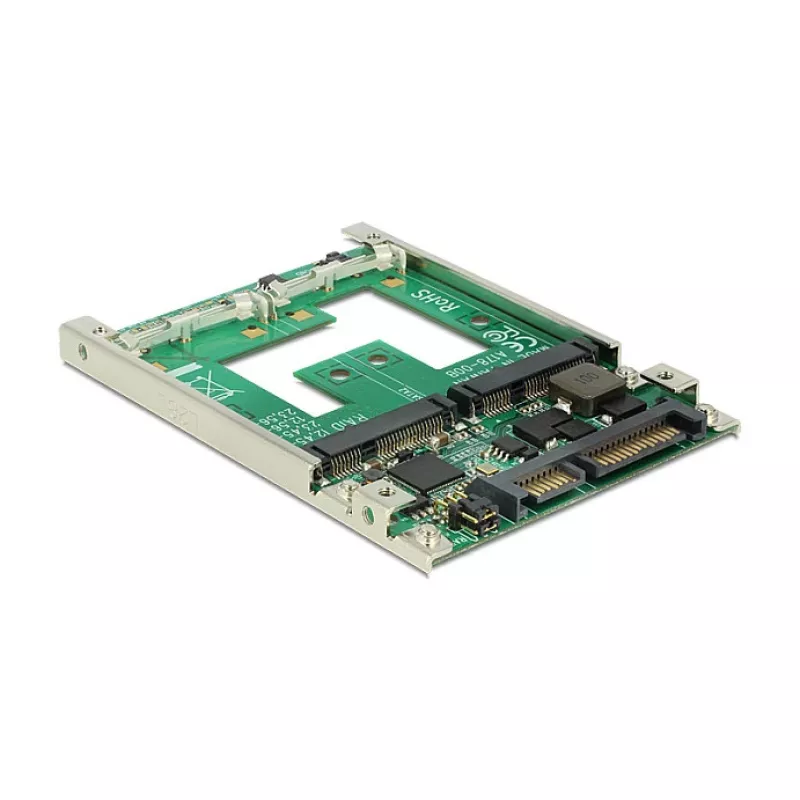

The DeLOCK 62545 internal mSATA adapter allows installation of up to two mSATA SSDs and connects them to a SATA 22-pin interface so they can be used like a 2.5" HDD. With compact dimensions of 100 mm x 70 mm x 7 mm, this adapter is designed for internal installation in space-constrained systems and enables the integration of mSATA storage into standard SATA bays.

Advantages

The adapter supports connection of mSATA SSDs to a standard SATA host interface, offers a slim form factor for tight installations, and enables use of two mSATA modules as a single 2.5" drive replacement. It is compatible with internal SATA connections and simplifies upgrading or adding solid-state storage without external enclosures.

Suitable for

• Systems with limited internal space where a compact storage adapter is needed
• Upgrading legacy PCs or small form factor systems to mSATA SSDs
• Integrating mSATA modules into SATA-based storage bays

Key specifications

• Brand: DELOCK
• Model: 62545
• Host interface: SATA (22 pin)
• Output interface: mSATA (supports up to two mSATA SSDs)
• Installation: internal
• Dimensions: 100 mm x 70 mm x 7 mm
• Category: I/O adapters and controllers
• MPN: 62545
• EAN: 4043619625451

How to use

Install the adapter into your system's internal drive bay and connect the SATA 22-pin host cable to the motherboard or SATA controller. Mount up to two mSATA SSD modules onto the adapter according to the module connectors and secure them if required. After connecting power and data, the operating system should detect the SSDs as SATA storage devices; configure RAID or OS settings as needed.

Recommendations

For best results, ensure compatibility of your motherboard SATA port and confirm power and data connections before starting. Back up data before making disk configuration changes and follow standard ESD precautions when handling SSD modules.
