Εσωτερικός προσαρμογέας M.2 DeLOCK 90432

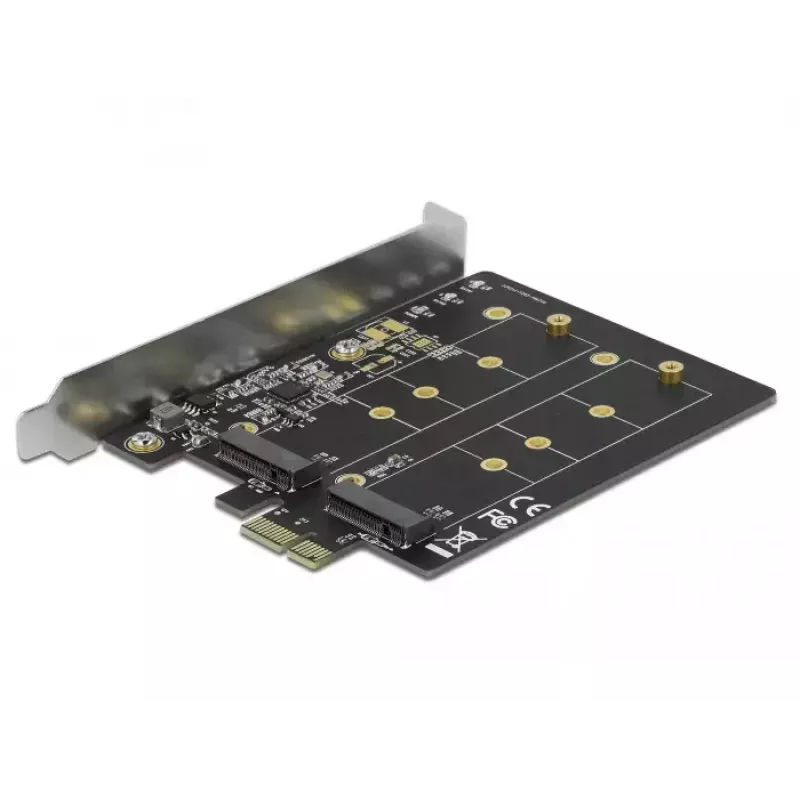

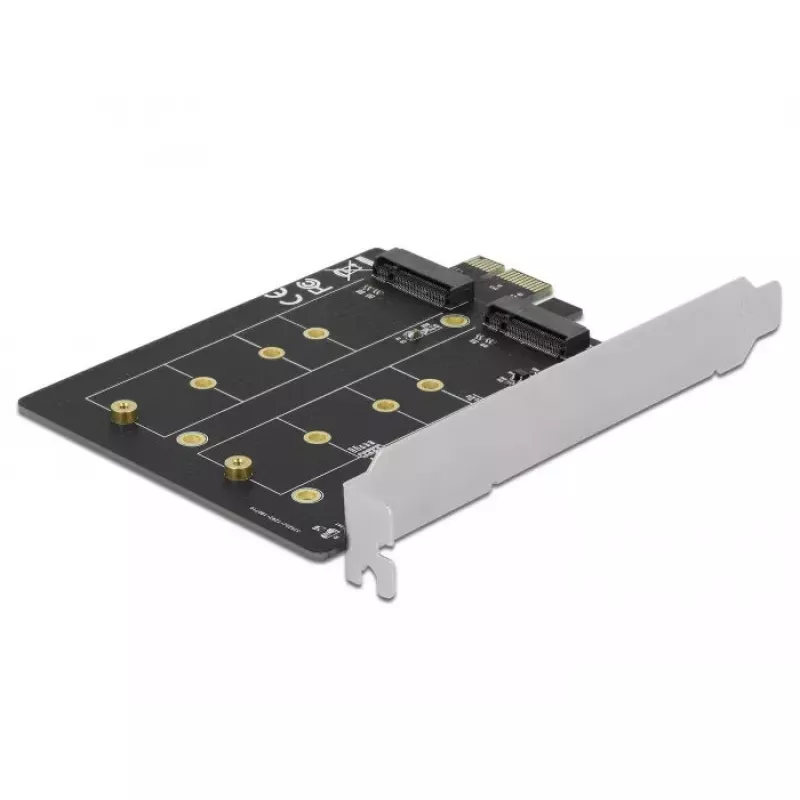

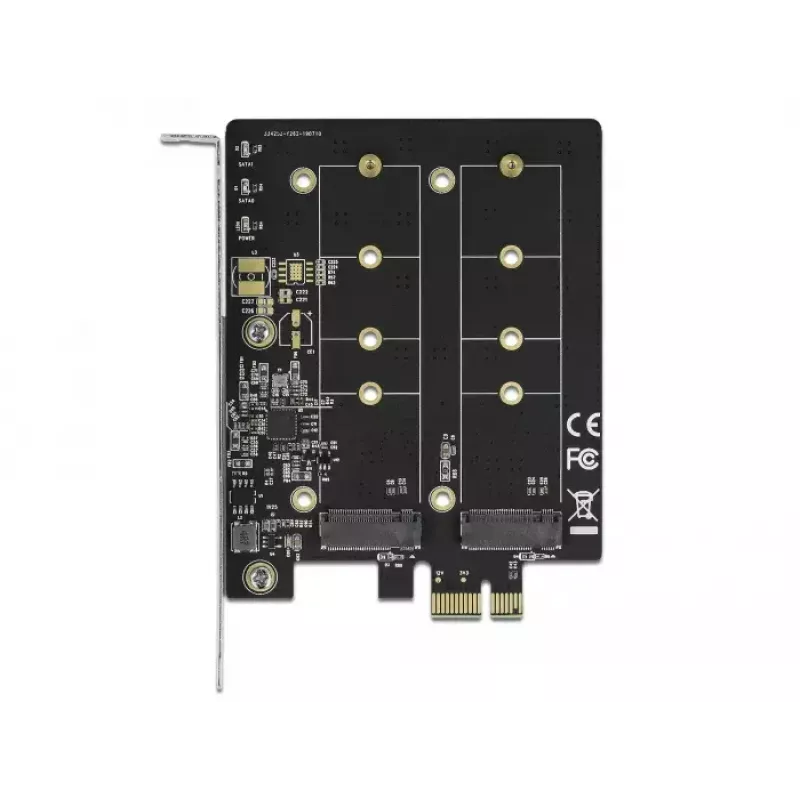

The Internal M.2 Adapter DeLOCK 90432 is a PCIe expansion card that provides two M.2 slots for SATA modules in sizes 2280, 2260, 2242 and 2230. It connects to a motherboard via a PCIe interface and uses a JMicron JMB582 chipset. The card is finished in black and is intended for internal installation in desktop systems to expand storage options.

Advantages

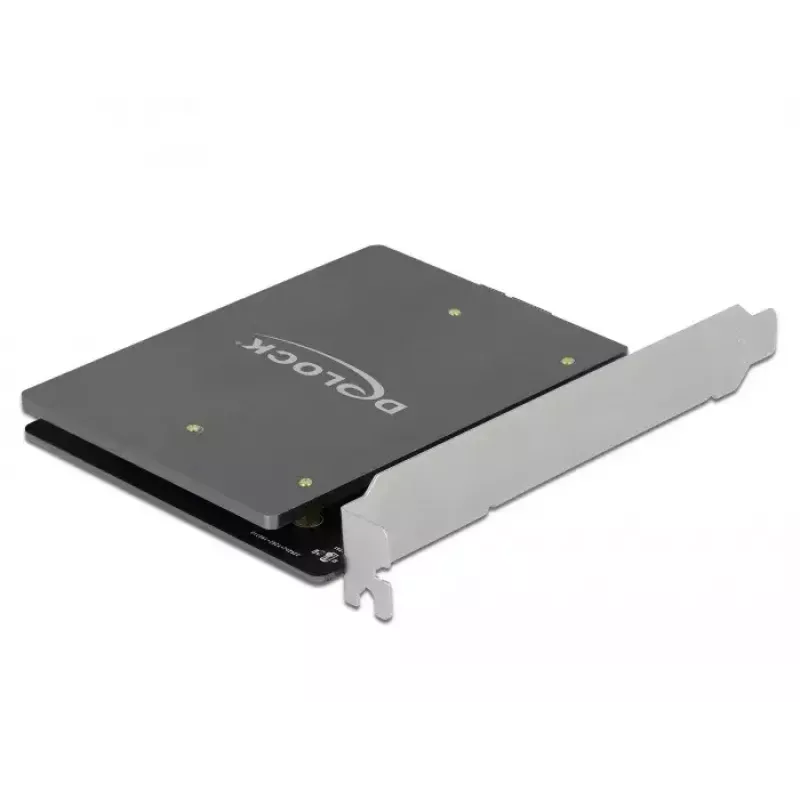

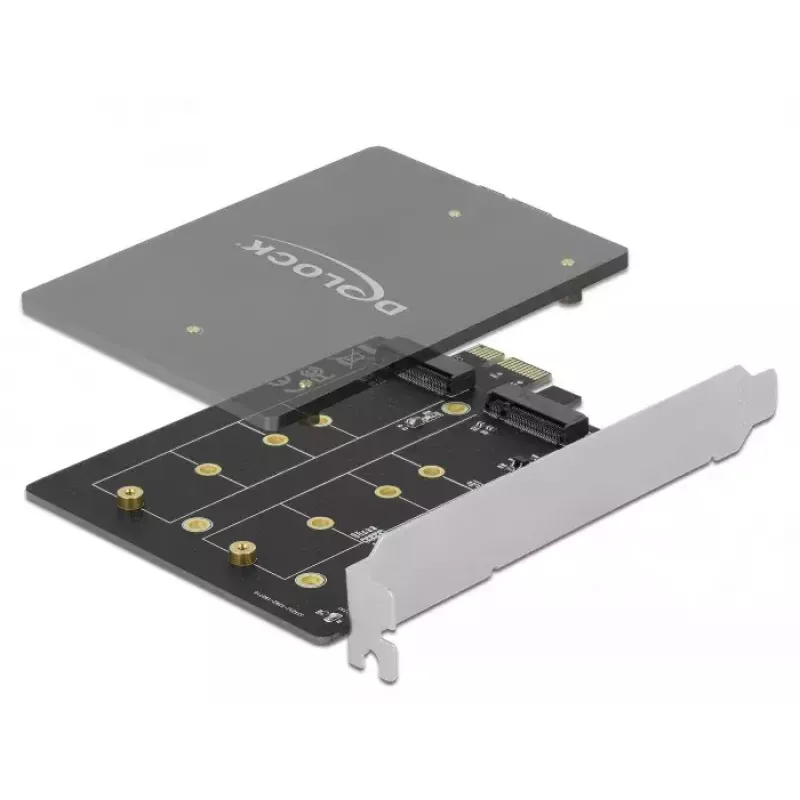

The adapter supports two M.2 SATA modules simultaneously and fits multiple module lengths (2280/2260/2242/2230). A large integrated heat sink ensures sufficient cooling of installed M.2 modules, and the PCIe 3.0-compatible connection provides a standard interface for modern motherboards. The compact black design allows straightforward installation inside most PC cases.

Suitable for

• Adding two M.2 SATA drives to a desktop PC
• Upgrading storage capacity with 2280, 2260, 2242 or 2230 M.2 modules
• Systems that support PCIe expansion cards

Key specifications

• Host interface: PCIe (PCI Express)
• Chipset: JMicron JMB582
• Supported module types: M.2 SATA
• Supported module sizes: 2280, 2260, 2242, 2230
• Installation: Internal PCIe card
• Colour: Black

How to use

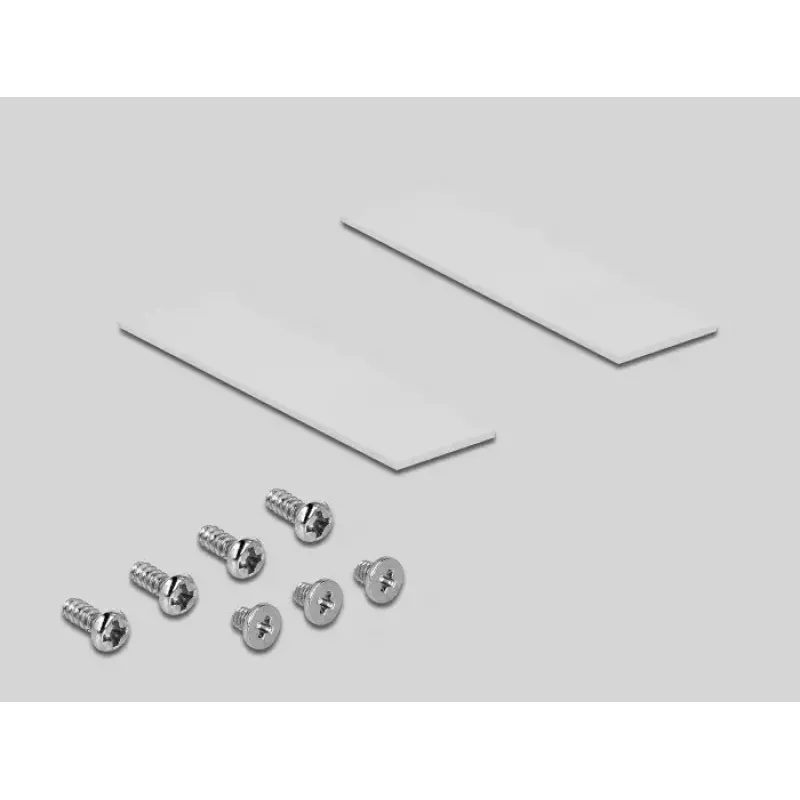

Power off the PC and open the case. Insert the adapter into a free PCIe slot on the motherboard and secure it with a screw. Mount M.2 SATA modules into the provided slots according to their length, fasten them with the appropriate standoffs or screws, and ensure contact with the heat sink. Close the case, power on the system and install any required drivers or OS support if necessary (Windows 10 editions such as Education and Enterprise are supported). Verify the drives are recognised in the system BIOS/UEFI or the operating system storage manager.

Recommendations

Install M.2 SATA modules of supported lengths only, ensure good airflow around the card for effective cooling, and consult your motherboard manual to select an appropriate PCIe slot. Handle M.2 modules with care to avoid ESD damage.
