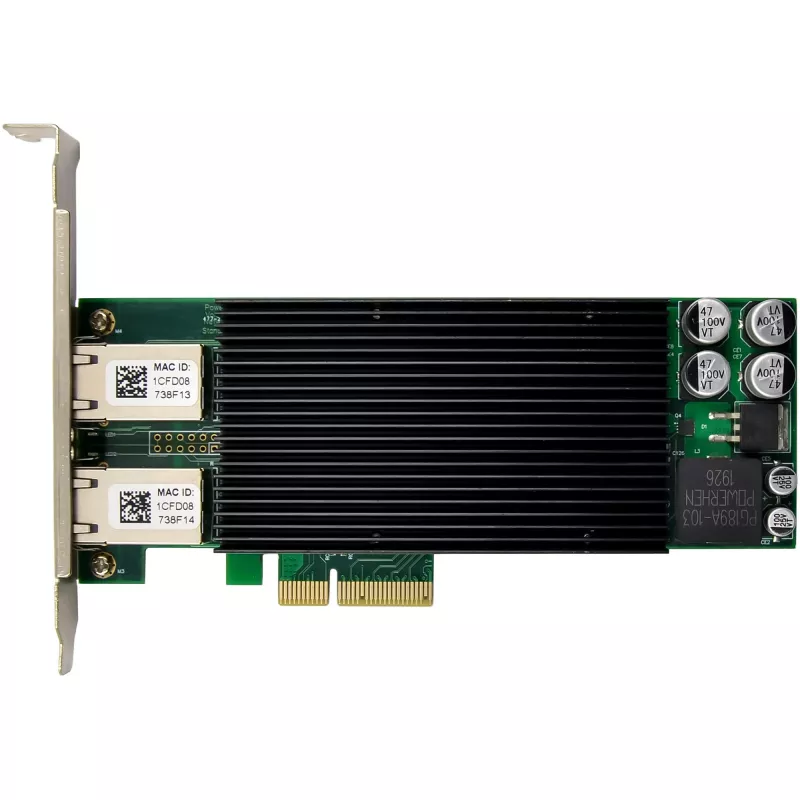

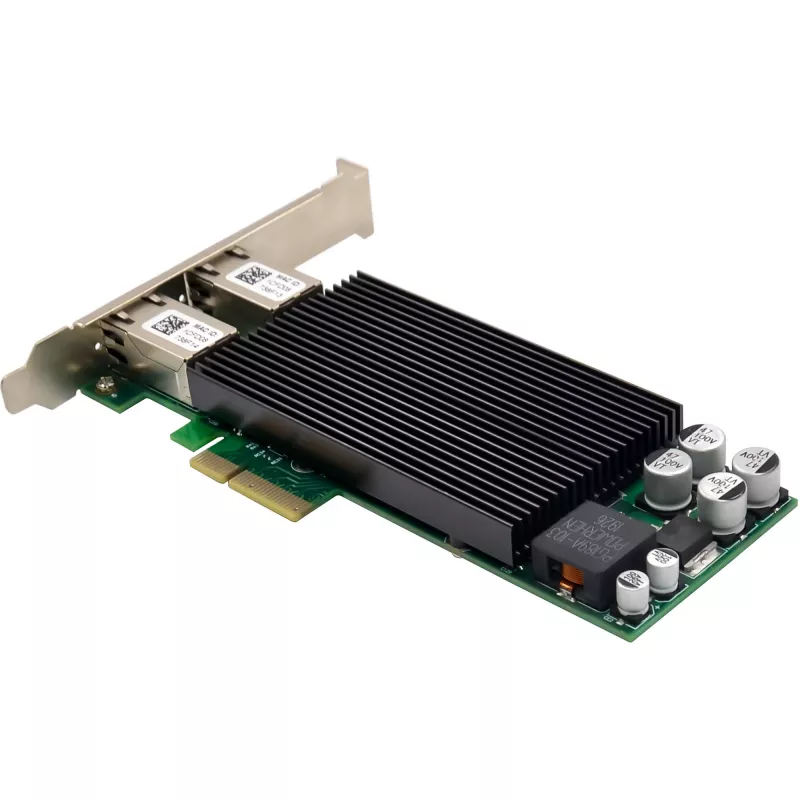

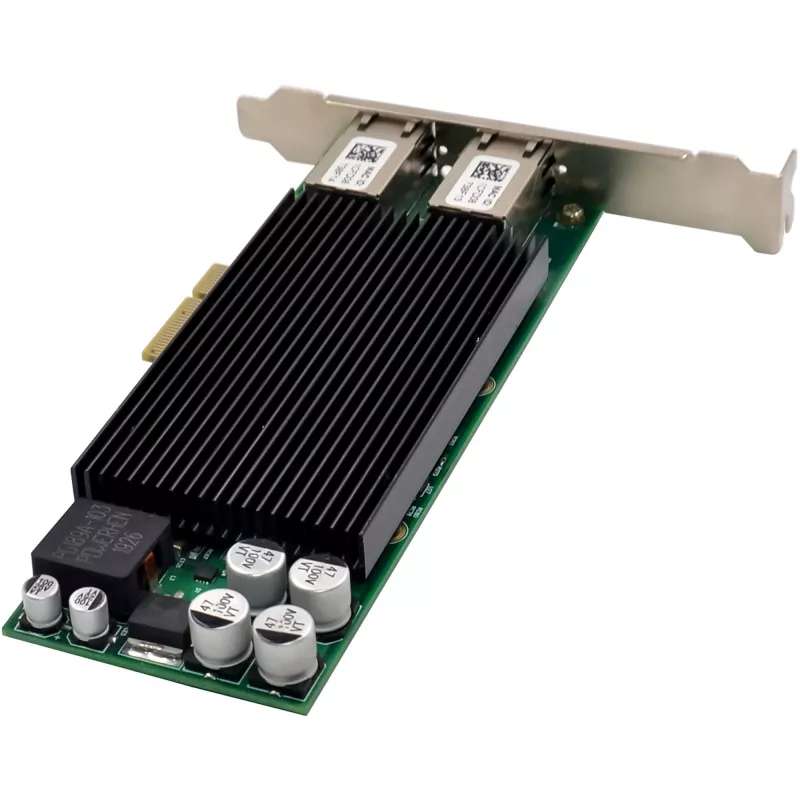

Εσωτερική κάρτα δικτύου Ethernet InLine 51125P 1000 Mbit/s PCI Express

Dual Gigabit Ethernet with PoE+for a fast and reliable connection
2x RJ45 portswith 10/100/1000 Mb/s data rate
Supports Power over Ethernet Plus (PoE+)with up to 30 W per port
Intel NHI350AM2 chipsetfor high performance and energy efficiency

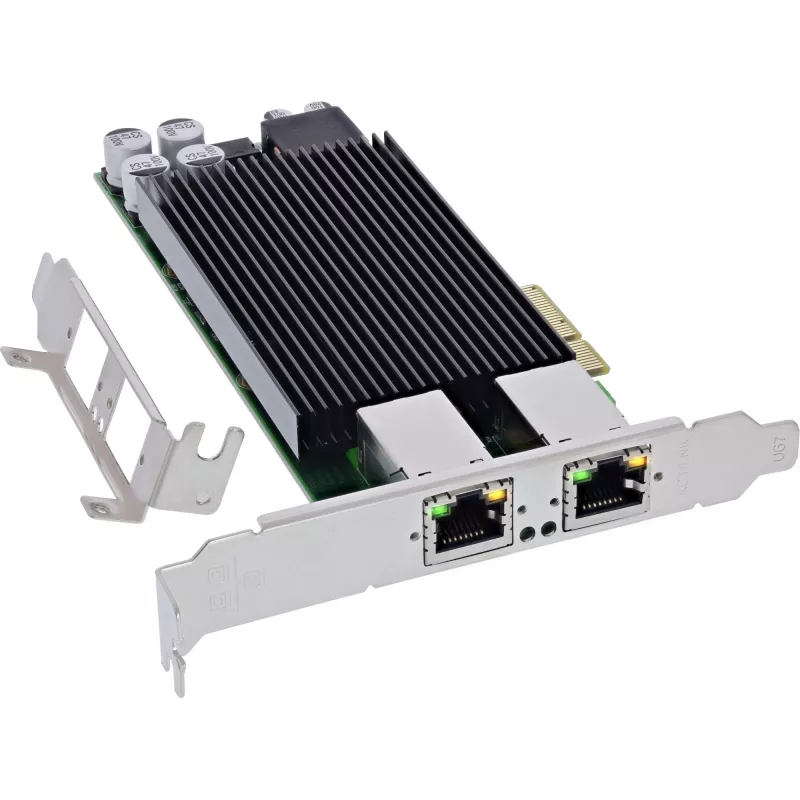

PCIe x4 interfacewith standard and low-profile bracket

The InLine® Dual Gigabit Network Card PoE+offers a high-performance and versatile solutionfor professional use in servers, workstations and AV applications. With two RJ45 Gigabit interfaces, it enables a reliable 10/100/1000 Mb/s Ethernet connectionand supports modern network technologies for optimized performance and energy efficiency.
Thanks to PoE+ (IEEE 802.3af/at) with up to 30 W per port, it is ideal for IP cameras, access points and VoIP telephones, which can be supplied with power directly via the network cable - without a separate power source.
Additional features such as VLAN support (802.1Q), Jumbo Frames up to 9K, Flow Control (802.3x)and Virtual Machine Device Queues (VMDq)ensure optimized network performance and efficient use of system resources.
Technical data:

Bus type: PCIe v2.1 (5.0 GT/s) 4-lanes
Connection: 2 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)
Chipset: Intel NHI350AM2
Supported protocols: IPv4, IPv6
PoE+ (Power over Ethernet)
Maximum power: 30 W per port
Voltage range: 44-57 V DC per port
Dimensions: 160 mm x 69 mm (PCIe board)

Maximum cable length:

10BASE-T: Category-3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category-5e or higher (up to 100 m)

Network & protocol supportSupported IEEE standards:

IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control), IEEE 802.1Q (VLAN)
IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
IEEE 802.1Qav (audio-video bridging)
IEEE 1588 & 802.1AS (precise time synchronization)

Features:

Auto-negotiation (10/100/1000 Mb/s)
MDI/MDI-X (automatic crossover detection)
Receive-Side Scaling (RSS)
Support for jumbo frames (up to 9K)
UDP/TCP & IP Checksum Offloading
Virtual Machine Device Queues (VMDq, up to 8 VMs)
Interrupt throttling control

Operating system support

Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Other: FreeBSD, virtualization environments (e.g. VMware ESXi)

Environmental conditions:

Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90%

Scope of delivery:

1x InLine® Dual Gigabit network card PoE+, 2x RJ45 1Gb/s
1x low-profile slot bracket
1x driver CD
1x operating instructions (German/English)

InLine 51125P. Host interface: PCI Express. Country of origin: Taiwan. Chipset: Intel NHI350AM2. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Server operating systems supported: Windows Server 2008 R2, Windows Server 2016, Windows Server 2019. Width: 160 mm, Depth: 69 mm

How to use

Install the card into an available PCIe x4 (or larger) slot on the host motherboard and secure it with the supplied standard or low-profile bracket. Connect network devices to the RJ45 ports using appropriate Ethernet cables (Cat5e or higher for Gigabit). If using PoE, ensure the connected devices support PoE/PoE+ and verify the host system and cabling deliver the required voltage (44–57 V DC). Install drivers from the supplied CD or download up-to-date drivers for your operating system (Windows, Windows Server, Linux kernel ≥2.6.30, FreeBSD, virtualization platforms).

Recommendations

For stable Gigabit operation and PoE+ delivery use Cat5e or better cabling and keep cable runs ≤100 m. Verify power budget per port and overall system power requirements before connecting multiple PoE devices. For virtualized environments enable VMDq and RSS in the driver to improve performance across multiple VMs.
