Ερμάριο τοίχου EFB Elektronik 691709FGR.1

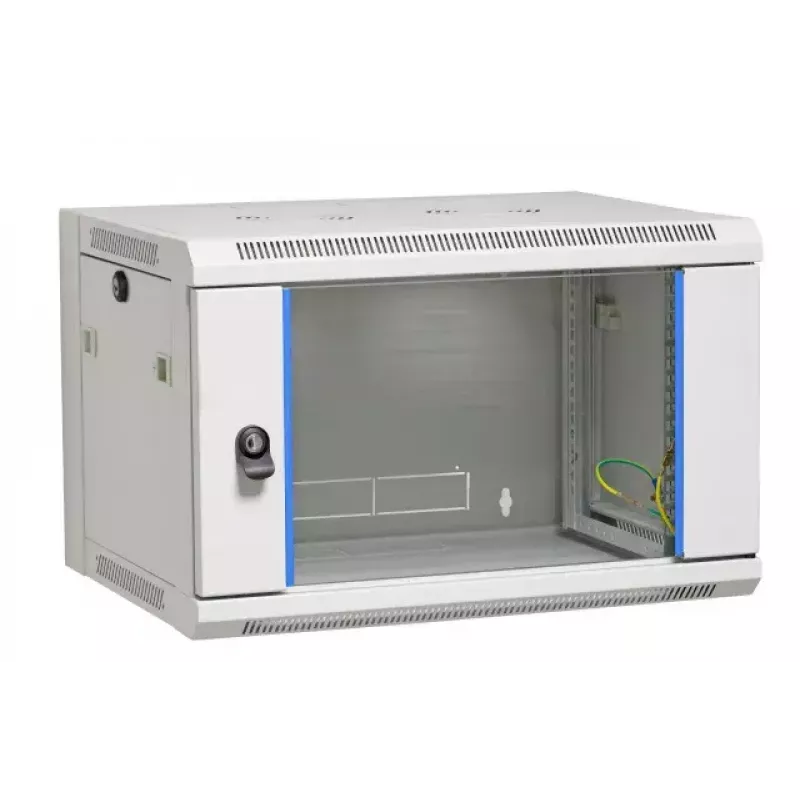

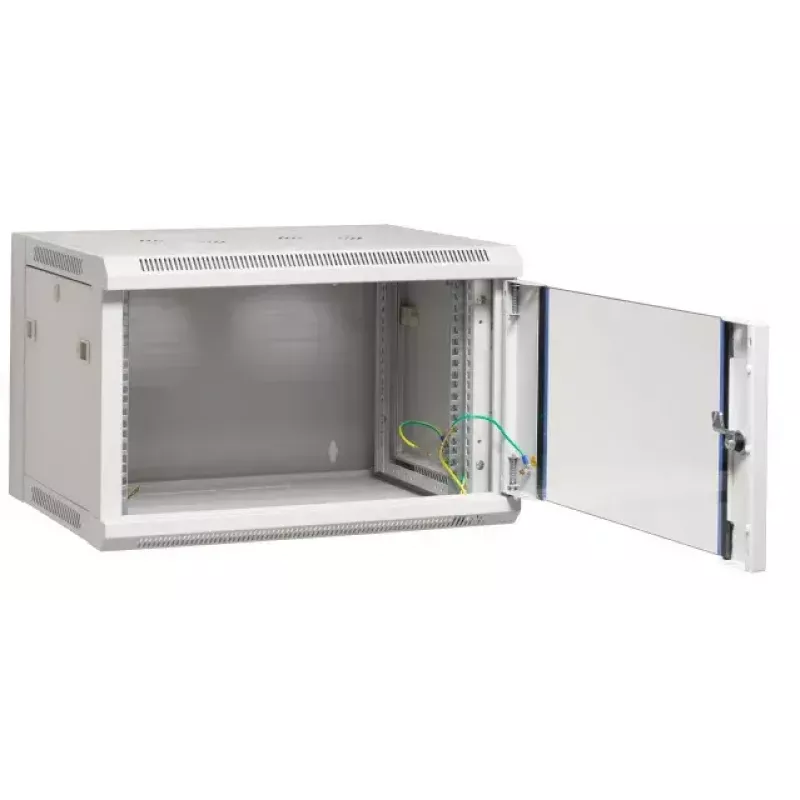

The EFB Elektronik 691709FGR.1 wall mounted rack is a compact cabinet for structured mounting of network and telecom equipment. With external dimensions of 570 mm width, 450 mm depth and 500 mm height and an IP20 protection rating, the unit is intended for indoor installation where protection against solid objects and organized cable routing are required. The rack supports common 19-inch mounting hardware and is suitable for environments such as small offices, server rooms, comms closets and home networks where a space-saving, wall-mounted solution is preferred.

Advantages

This wall mounted rack offers a combination of sturdy construction and compact footprint that simplifies installation on suitable walls. The IP20 rating provides protection from dust and accidental contact with internal parts while keeping the design open for ventilation. The cabinet’s dimensions accommodate standard networking devices and patch panels and allow tidy cable entry and management, reducing clutter and improving accessibility for maintenance.

Suitable for

• Mounting network switches, patch panels and routers in small offices or retail sites
• Housing telecommunications equipment in comms cupboards and server rooms
• Organizing home network components in utility rooms or garages

Key specifications

• External width: 570 mm
• External depth: 450 mm
• External height: 500 mm
• Protection rating: IP20 (protection against solid objects larger than 12 mm)
• Mounting type: wall mounted cabinet suitable for 19-inch equipment
• Airflow: open/front and rear access for passive ventilation

How to use

Choose a load-bearing wall and verify that wall anchors and fixings are suitable for the cabinet weight and the installed equipment. Mark mounting points according to the cabinet’s rear mounting holes, drill and install appropriate hardware, then hang and secure the rack. Install 19-inch rails or mounting brackets if not pre-fitted, mount network devices and route cables through available entry points. Verify ventilation clearance around the cabinet and ensure power and network connections are accessible for future maintenance.

Recommendations

Install the rack in a dry, indoor location and avoid direct exposure to moisture. Use correct wall fixings rated for dynamic and static loads, and distribute the weight of installed equipment evenly. Maintain at least 50–100 mm clearance at the top and sides for airflow, and label cable runs to simplify troubleshooting and upgrades.
