Ερμάριο rack Lanberg FF01-6827-12BL

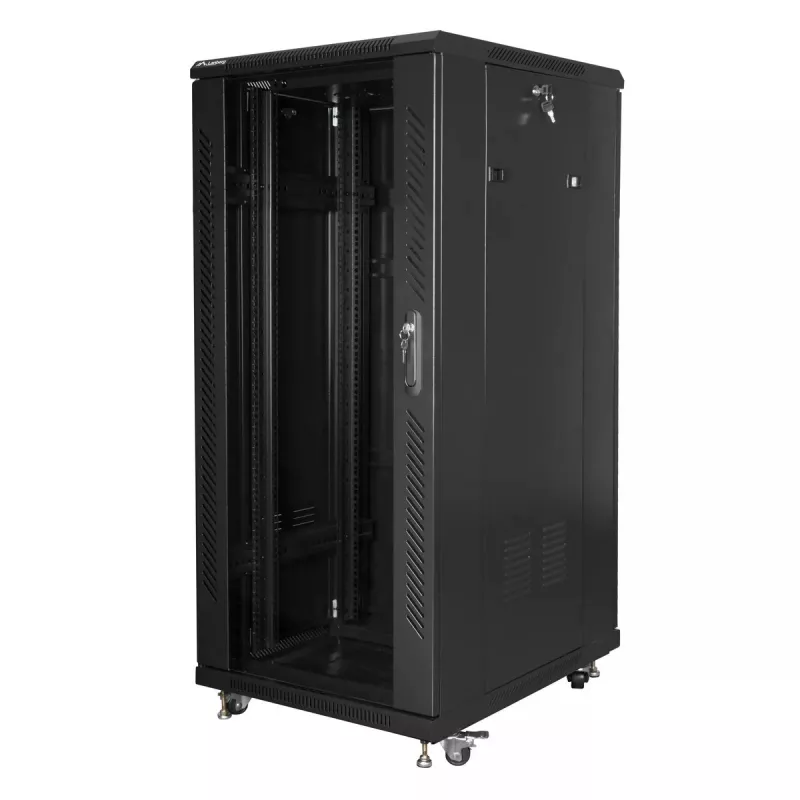

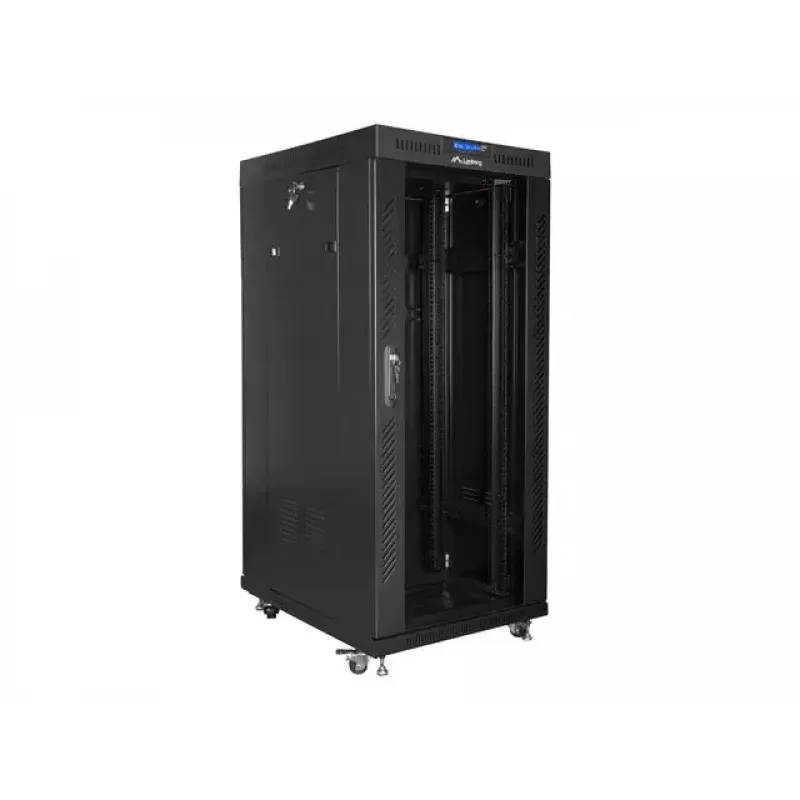

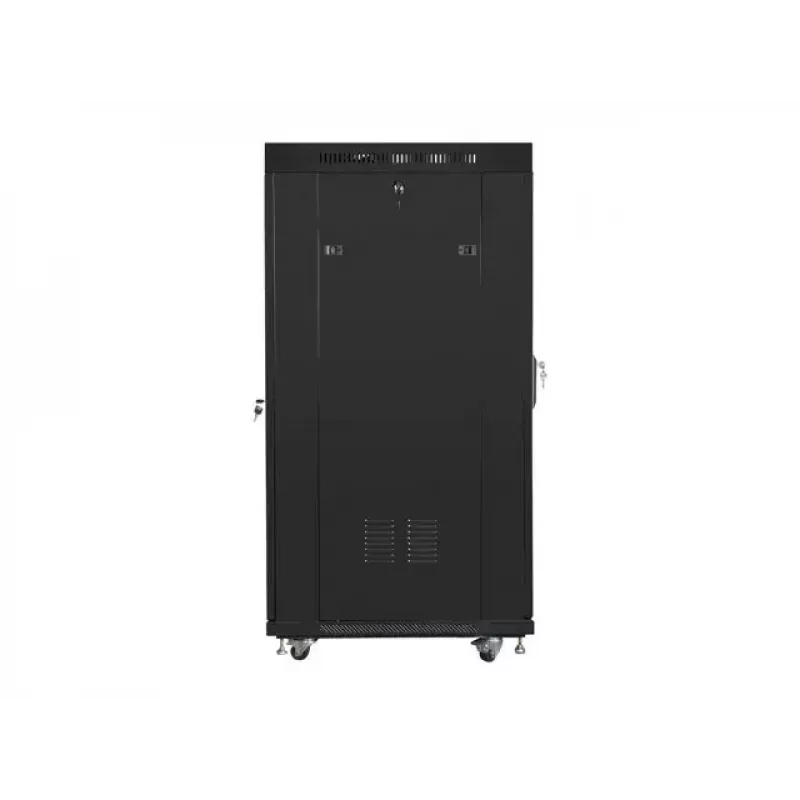

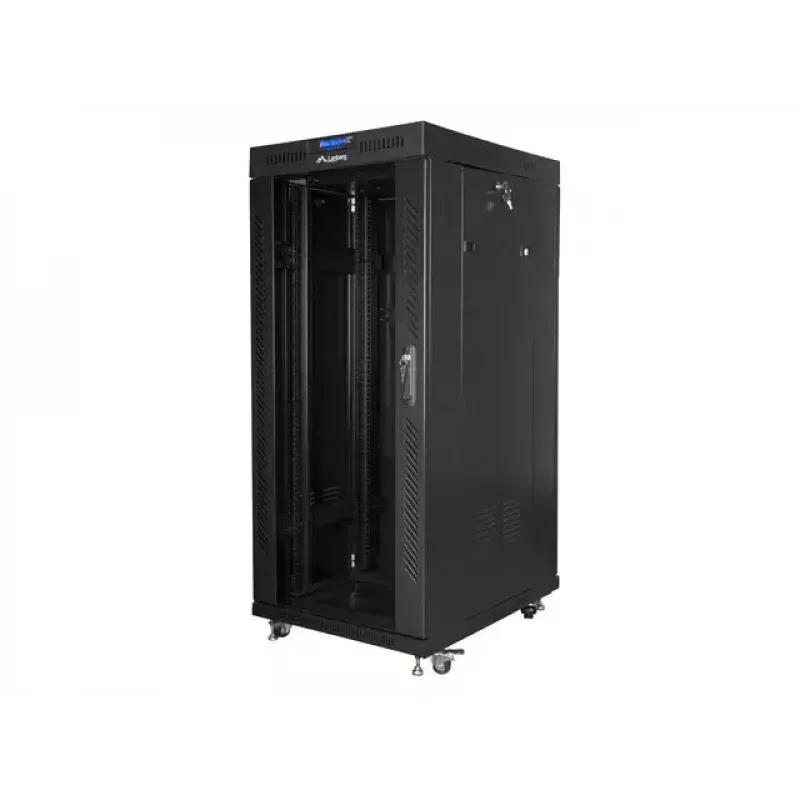

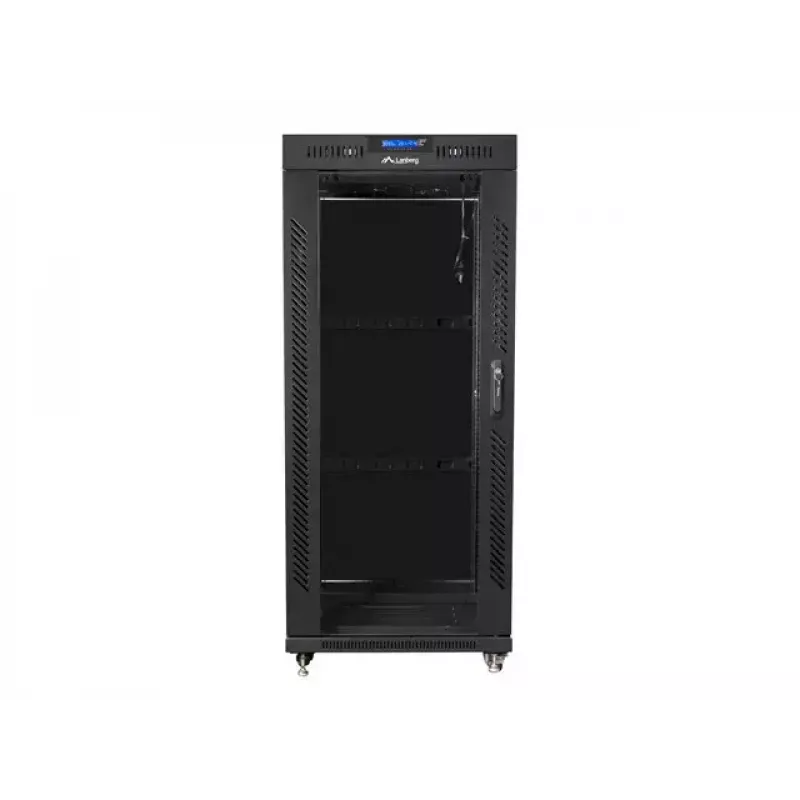

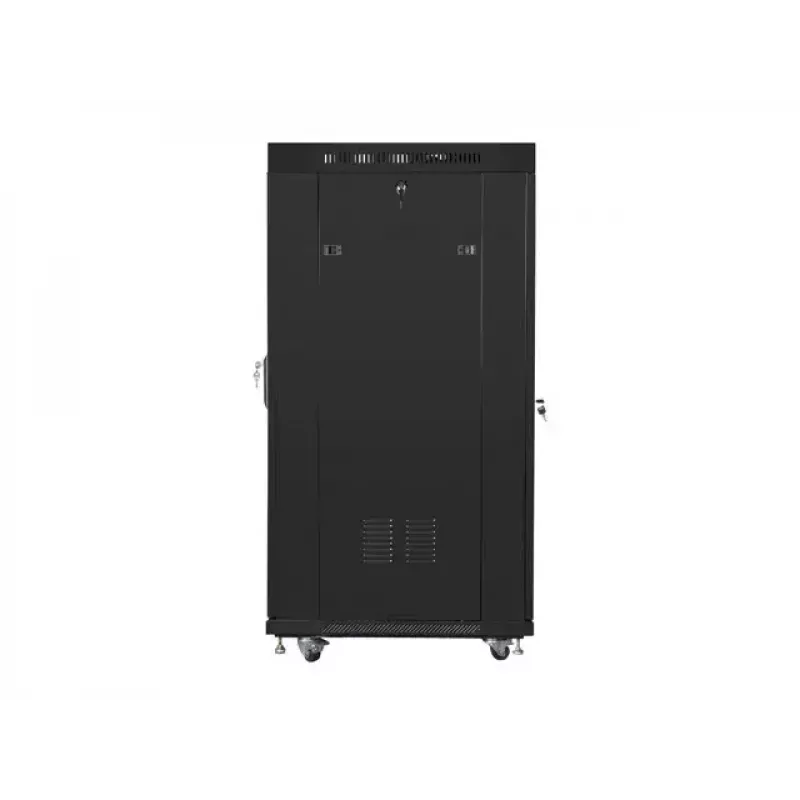

Freestanding rack Lanberg FF01-6827-12BL is a 27U, 19" cabinet designed to expand network infrastructure and house cabling and equipment with a maximum load capacity of 800 kg. Constructed from cold-rolled steel and finished in black, the cabinet includes adjustable vertical mounting rails (depth up to 720 mm), front tempered glass door with lock (reversible for left or right opening), removable lockable side panels, rear solid steel door with lock, castor wheels and adjustable feet for stability, and an IP20 rating for indoor installations.

Advantages

The cabinet offers robust construction for reliable equipment support up to 800 kg and flexible mounting thanks to fully adjustable vertical rails. Built-in features include a front LCD display showing internal temperature, time and fan status, four 230 V fans in a tray for airflow, multiple cable entry points on top and bottom with blank panels, and a set of accessories (M6 cage nuts and rail fittings) supplied for straightforward installation. The flat-pack design (three packs) simplifies transport and on-site assembly.

Suitable for

• Network closets and patching installations
• Server rooms and small to medium business IT racks
• Data centers requiring 27U freestanding cabinets
• Low-voltage systems: CCTV, IP surveillance, access control, alarm and fire protection systems

Key specifications

• Rack capacity: 27U, 19"
• Maximum load capacity: 800 kg
• Dimensions (H×W×D): 1431 × 600 × 800 mm
• Maximum mounting depth: 720 mm
• Weight: 73.6 kg
• IP rating: IP20
• Colour: Black
• Front door: Tempered glass with lock (reversible)
• Cooling: Fan tray with 4 × 230 V fans

How to use

Assemble the cabinet from the three flat packs following the manufacturer's instructions and secure it in the intended indoor location. Install the vertical mounting rails to the required depth (up to 720 mm) and mount equipment using the supplied M6 cage nuts and rail accessories. Route cabling through the top or bottom cable entry panels; use the blank entry panels as needed to close unused openings. Connect the fan tray to a suitable 230 V power supply and monitor the front LCD for internal temperature and fan status. Use the lockable doors and side panels to secure installed equipment.

Recommendations

Install the rack on a level surface and ensure adequate clearance for front and rear access. Distribute equipment weight evenly and observe the 800 kg load limit. For environments with higher dust or moisture, consider additional sealing or placing the cabinet in a controlled room, since the product has IP20 protection suitable for indoor use only.
