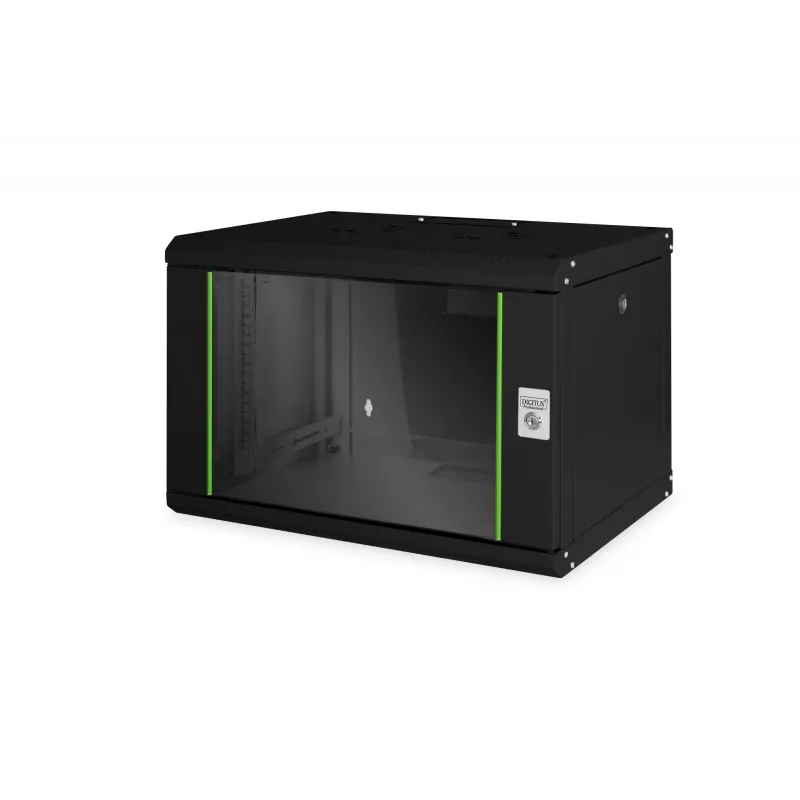

Ερμάριο επιτοίχιας τοποθέτησης Digitus DN-19 07-U-SW

The DIGITUS® Unique Series wall mounted rack DN-19 07-U-SW is a 7U network cabinet designed for indoor IT infrastructure with a compact footprint (600 x 450 mm). Constructed from up to 1.5 mm thick sheet steel and finished in jet black (RAL 9005), the cabinet supports up to 100 kg and meets IP20 protection for indoor environments. It includes a lockable front safety-glass door with steel frame, removable and lockable side panels, adjustable 19" mounting rails, and pre-cut cable inlets on the roof, back and floor for flexible cabling.

Advantages

The cabinet offers a robust steel construction suitable for secure wall mounting and flexible deployment. Adjustable and labeled 483 mm (19") profile rails allow precise equipment fitting while the sliding cable inlet with foam seal and pre-cut openings simplify cable entry. Removable, lockable side panels and a reversible hinged front door improve accessibility for installation and maintenance. Optional levelling feet or casters enable conversion to a free-standing unit.

Suitable for

• Small server rooms and network closets
• Switches, patch panels and 19" network equipment up to 7U
• Office environments requiring secure, indoor wall-mounted cabinets
• Environments where organized cable entry and moderate load capacity (up to 100 kg) are needed

Key specifications

• Brand: DIGITUS
• Model: DN-19 07-U-SW
• Rack capacity: 7U
• External dimensions (W x H x D): 600 x 420 x 450 mm
• Maximum load: 100 kg
• Material: up to 1.5 mm sheet steel
• Colour: Jet black (RAL 9005)
• Protection rating: IP20
• Front door: lockable safety-glass with steel frame
• Mounting rails: galvanized 483 mm (19"), adjustable depth, labeled in RU

How to use

Install the housing by bolting the frame plate to a suitable load-bearing wall, then attach the cabinet housing to the fixed frame. Fit equipment into the adjustable 19" rails and secure with appropriate rack screws. Use the sliding roof inlet with foam seal and the pre-cut back and floor openings to route cables; install a fan module in the pre-cut roof area if required. Side panels and the front door can be removed or locked to perform maintenance or to secure installed devices.

Recommendations

Mount on a solid, load-bearing wall and ensure even distribution of equipment weight within the 100 kg limit. Keep the cabinet in indoor, dry environments consistent with IP20 rating and use appropriate ventilation or a fan module when installing heat-generating equipment.
