Equip Περιστρεφόμενη βάση τοίχου TV 13 inch-55 inch

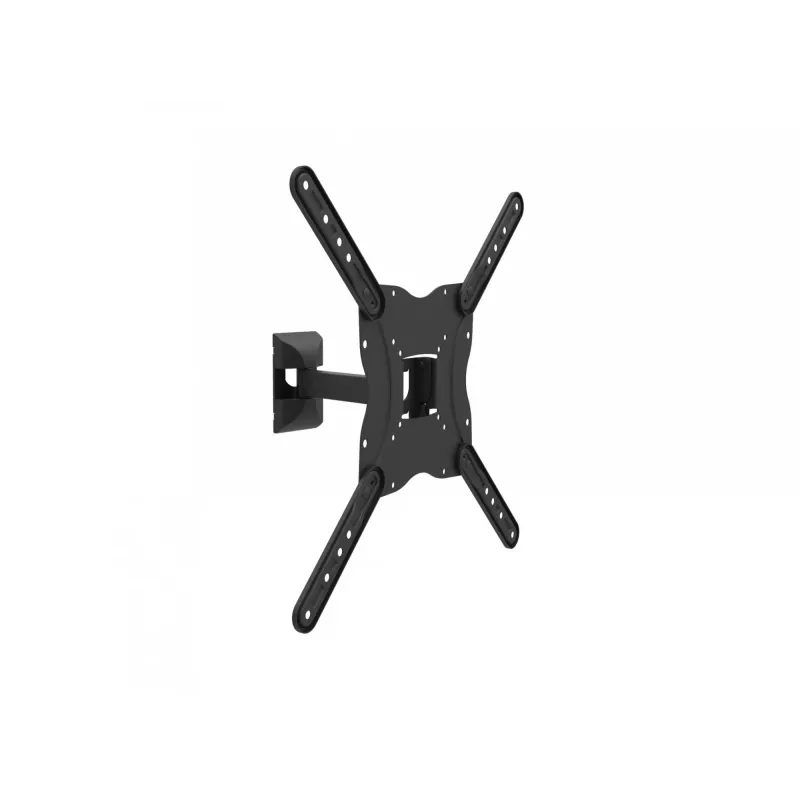

The Equip TV Wall Mount Bracket is a compact, sturdy mounting solution for LCD and plasma screens from 13" to 55". It supports a maximum weight of 30 kg and is compatible with VESA patterns from 75x75 mm up to 400x400 mm. The bracket's black finish and adjustable distance from wall (6.5–21.2 cm) provide a versatile and discreet option for home or office installations.

Advantages

The bracket offers a pivoting tilt range of -14° to 5° for improved viewing angles and supports most common VESA standards, simplifying compatibility with a wide range of TVs. Its compact design and 1.4 kg product weight make it easy to handle during installation, and the product works with typical wall materials such as brick, concrete and wood.

Suitable for

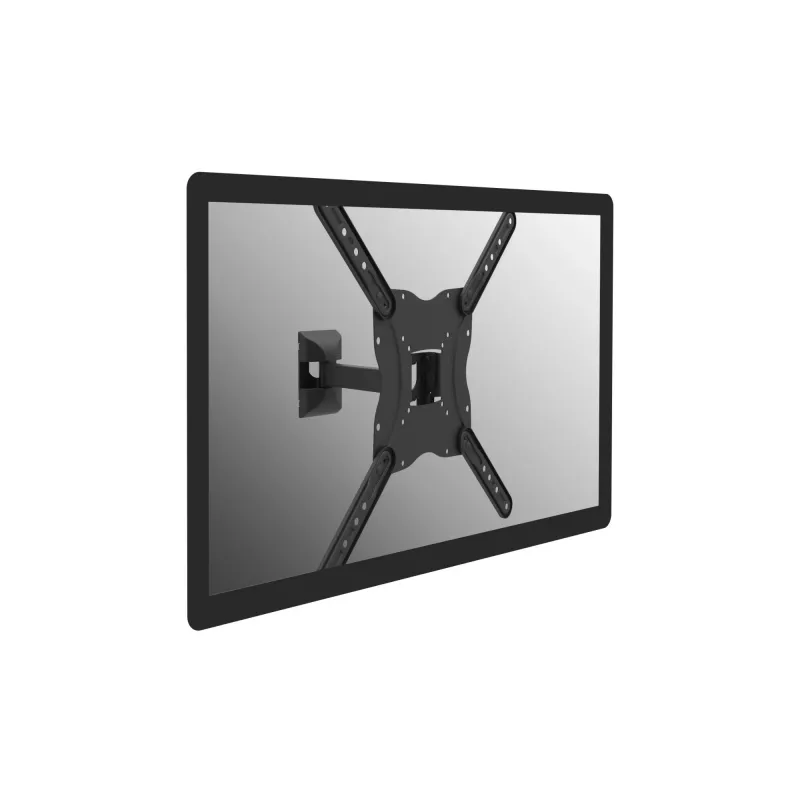

• Mounting 13"–55" LCD and plasma TVs
• Home living rooms and bedrooms

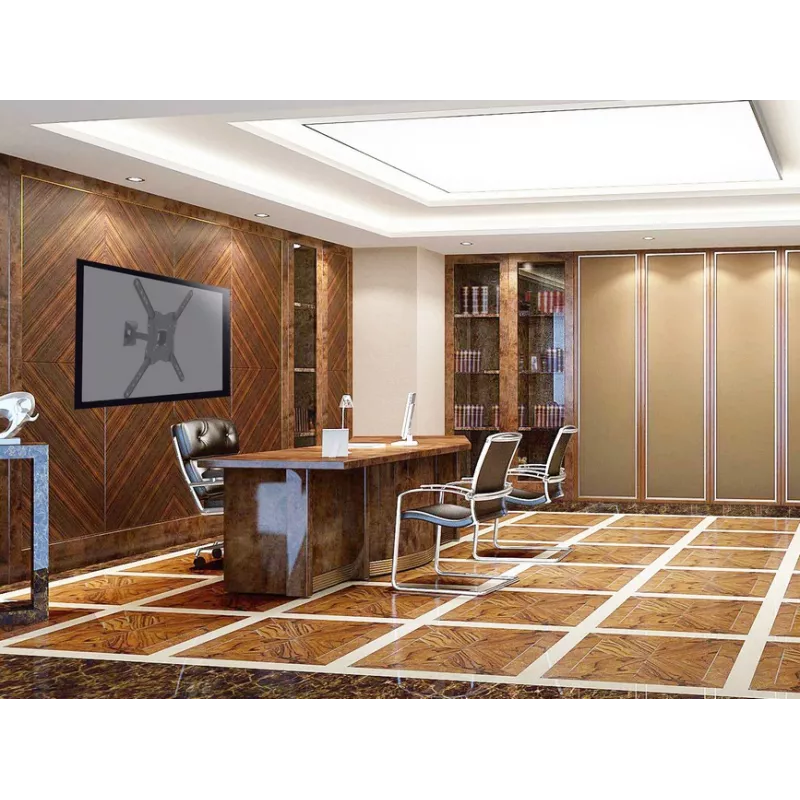

• Small offices, meeting rooms and reception areas
• Installations on brick, concrete or wooden walls

Key specifications

• Screen size compatibility: 13"–55"
• Maximum weight capacity: 30 kg

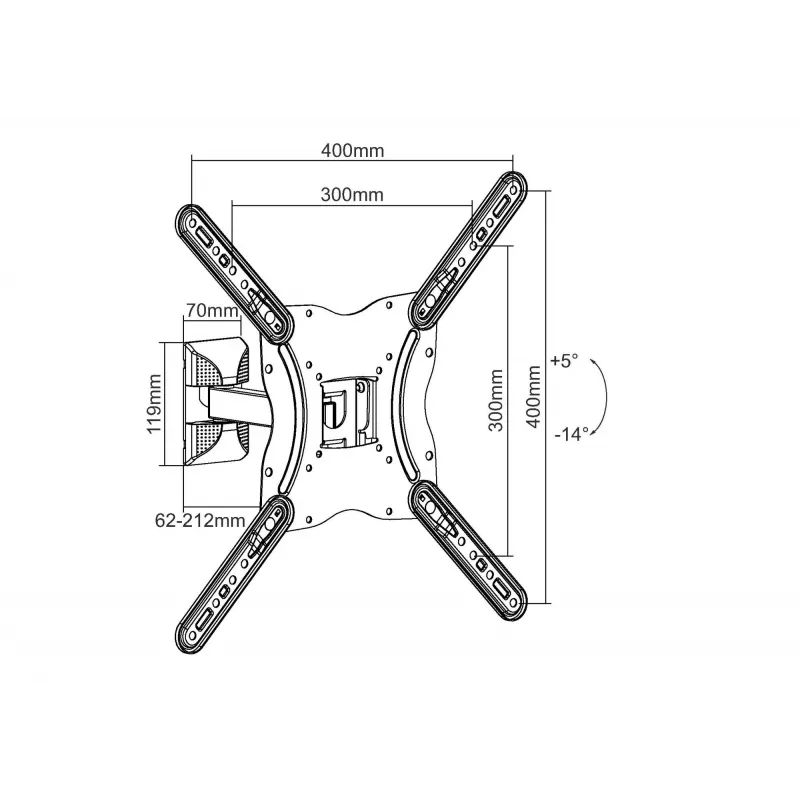

• VESA compatibility: 75 x 75 mm up to 400 x 400 mm
• Tilt range: -14° to 5°
• Distance from wall: 6.5 cm–21.2 cm
• Product colour: Black
• Product weight: 1.4 kg

How to use

Follow the graphic guide included in the package to mark mounting points and fix the bracket to a suitable wall surface. Select appropriate wall anchors and screws for the wall material (brick, concrete or wood), attach the bracket to the wall, then fasten the TV to the mount using the correct VESA holes and hardware. Adjust the tilt within the -14° to 5° range to achieve the desired viewing angle.

Recommendations

Verify the TV's weight and VESA pattern before installation and use wall fixings appropriate for the wall type. If unsure about load-bearing capability or complex installations, consider professional fitting to ensure safe and secure mounting.
