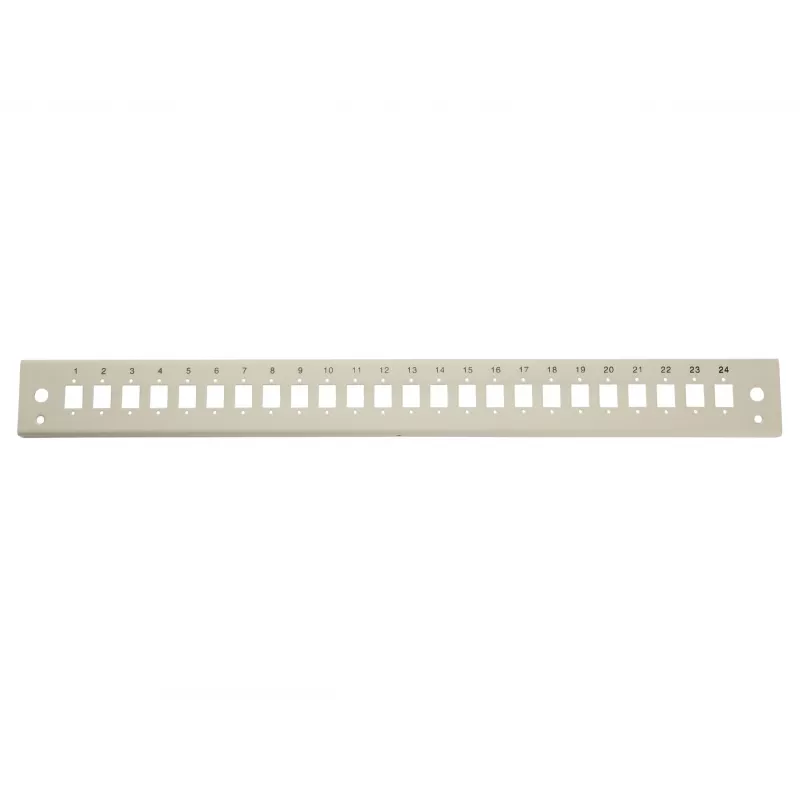

Equip Patch panel 19 ιντσών 24x LC Duplex, SC Simplex, χάλυβας, γκρι, 1U

In a busy data center or server room, managing dense fiber connections cleanly and reliably is critical. The Equip 19" Patch Panel provides a robust 1U rack-mount solution with 24 LC Duplex ports, accommodating up to 48 fibers. Its grey steel construction (RAL 7035) ensures durability and blends seamlessly into standard rack environments. The panel includes two splice cassettes, integrated strain relief, and cable routing features, making it ideal for structured cabling in enterprise networks, telecommunications rooms, and high-density fiber installations.

Key specifications

• Rack standard: 19 inch, 1U height
• Port configuration: 24 x LC Duplex (48 fibers total)
• Adapter type: LC Duplex
• Material: Steel, grey (RAL 7035)
• Mounting: Rack mount, front panel removable
• Cable entry: Rear with multiple entry points
• Included: 2 splice cassettes, integrated strain relief and cable routing
• Fiber compatibility: Multimode and Singlemode
• Operating temperature: -20°C to +70°C
• Operating humidity: 10% - 90% RH (non-condensing)
• Certifications: RoHS, REACH

Why choose it

This patch panel offers high-density fiber management in a compact 1U form factor, saving valuable rack space while maintaining organization. The removable front panel simplifies access for installation and maintenance. The included splice cassettes and integrated cable management reduce installation time and ensure proper fiber routing, minimizing signal loss and bend-related issues. Its steel construction provides long-term reliability, and the neutral grey finish matches most rack aesthetics.

Ideal use cases

• Data centers requiring high-density fiber patching
• Telecommunications rooms and MDFs/IDFs
• Enterprise LAN backbone connections
• Server rooms with fiber-to-the-server deployments
• Structured cabling projects demanding neat and scalable fiber management

Good to know

The panel supports both multimode and singlemode fibers, offering flexibility for current and future network upgrades. It comes with two splice cassettes, allowing for organized splicing of up to 48 fibers. The rear cable entry with multiple points and integrated strain relief ensures secure and tidy cable routing. The panel is compliant with RoHS and REACH, meeting environmental and safety standards. For installation, standard 19" rack mounting hardware is required (not included).
