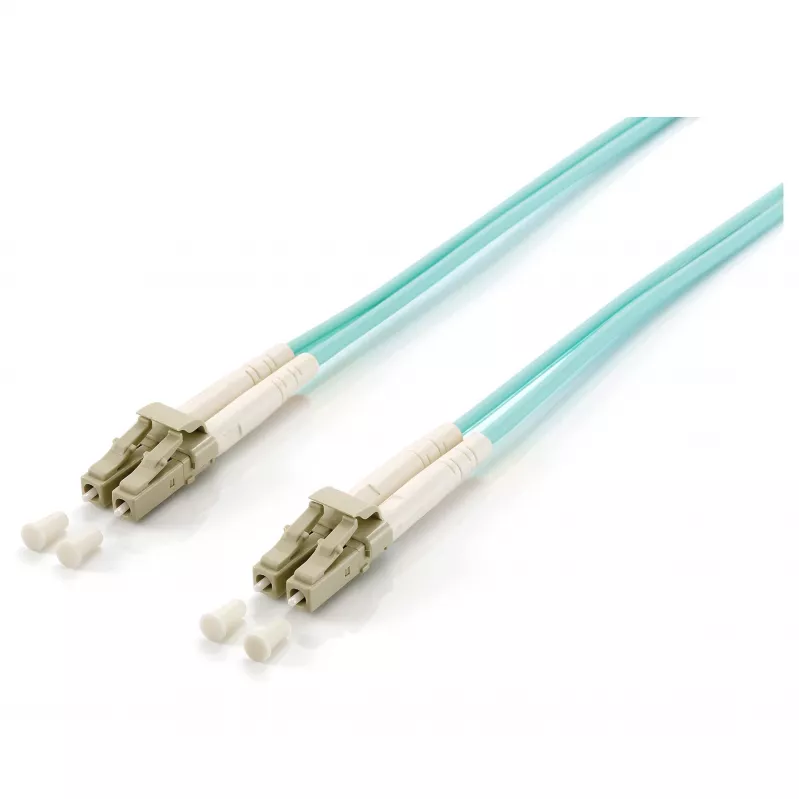

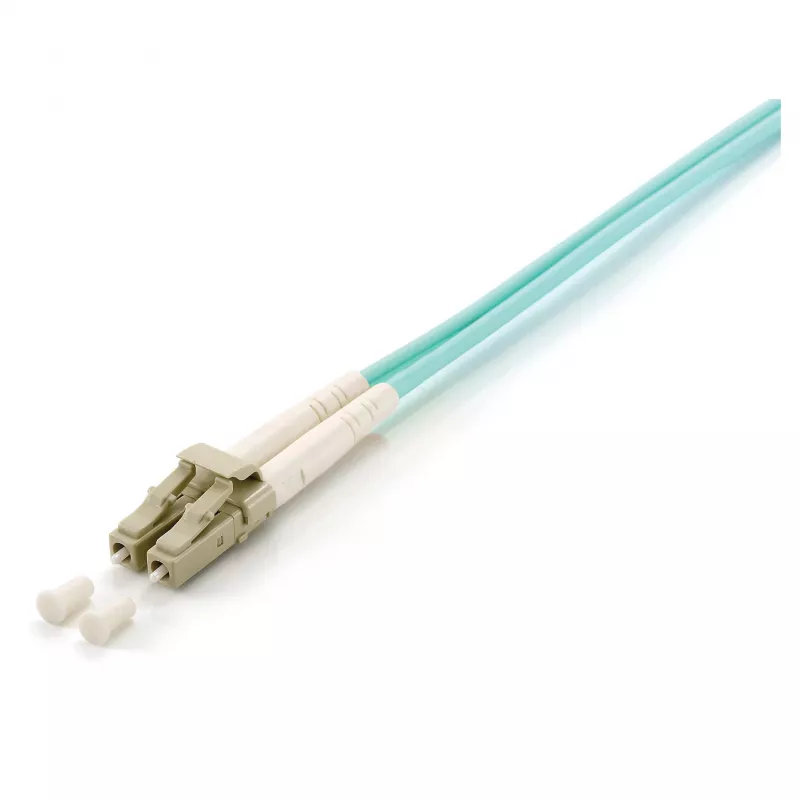

Equip Fiber Optic Patch Cable LC to LC 35m Multimode Duplex OM3 Τιρκουάζ

The Equip Fiber Optic Patch Cable LC to LC 35m Multimode Duplex OM3 Turquoise is a high-performance fiber optic cable designed for reliable data transmission in demanding network environments. With a length of 35 meters and OM3 multimode fiber, it supports 10 Gigabit Ethernet and is ideal for data centers, SAN, and LAN applications.

Advantages

This patch cable offers low insertion loss (<0.3 dB) and high return loss (>30 dB), ensuring minimal signal degradation. The LSZH jacket provides safety in confined spaces, and the turquoise color aids in easy identification.

Suitable for

• 10 Gigabit Ethernet (10GbE) networks
• Data centers and server rooms
• Storage Area Networks (SAN)
• Local Area Networks (LAN)

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Connector Type A: LC
• Connector Type B: LC
• Fiber Mode: Multimode
• Fiber Class: OM3
• Number of Fibers: 2 (Duplex)
• Cable Length: 35 m
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Turquoise
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Ferrule Material: Ceramic
• Polish Type: UPC
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC interfaces and is suitable for use in structured cabling systems.
