Επιτοίχιο Rack Equip λεπτό Flex Ντουλάπι 19 ιντσών 5U RAL7035 Γκρι

The Equip Slim Flex 19" Cabinet is a wall-mounted 5U slim rack in light grey (RAL7035) designed to house both active and passive network equipment. With a maximum load capacity of 30 kg and a total weight of 8.5 kg, the cabinet includes lockable access and rack rails for 2U/3U devices. Its compact dimensions (500 mm width, 475 mm depth, 475 mm height) make it suitable for small offices, server closets or homes where a neat and space-saving installation is required.

Advantages

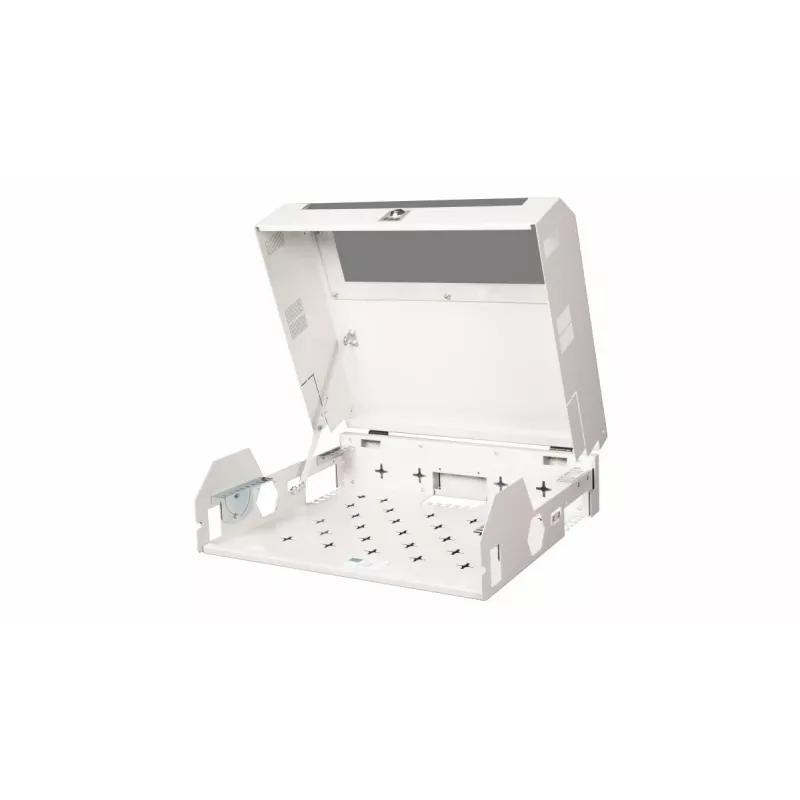

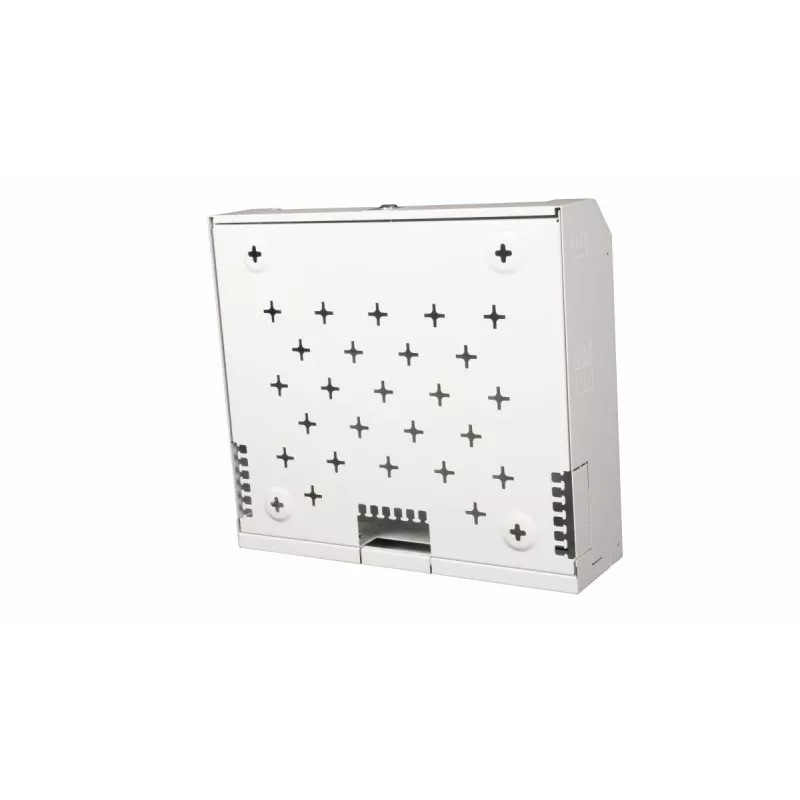

The cabinet provides flexible rail configuration with a rotatable 3U front rail that can be mounted vertically, horizontally or angled, and a fixed 2U rear rail for passive components. Pre-punched mounting holes in the lower housing allow installation of non-rack-mountable devices such as DSL routers. A separate device mounting plate is available as an optional accessory. The unit’s lightweight construction and included key lock simplify installation and secure mounted equipment.

Suitable for

• 2U and 3U network switches and patch panels
• Passive network components and terminal blocks
• Small routers, modems or non-rackable devices mounted in the lower compartment
• Space-constrained office or residential installations

Key specifications

• Model: Equip Slim Flex 19" Cabinet 5U (ESF-05-G)
• Dimensions (W×D×H): 500 × 475 × 475 mm
• Rack capacity: 2U/3U
• Maximum load: 30 kg
• Weight: 8.5 kg
• Colour: Light grey (RAL7035)

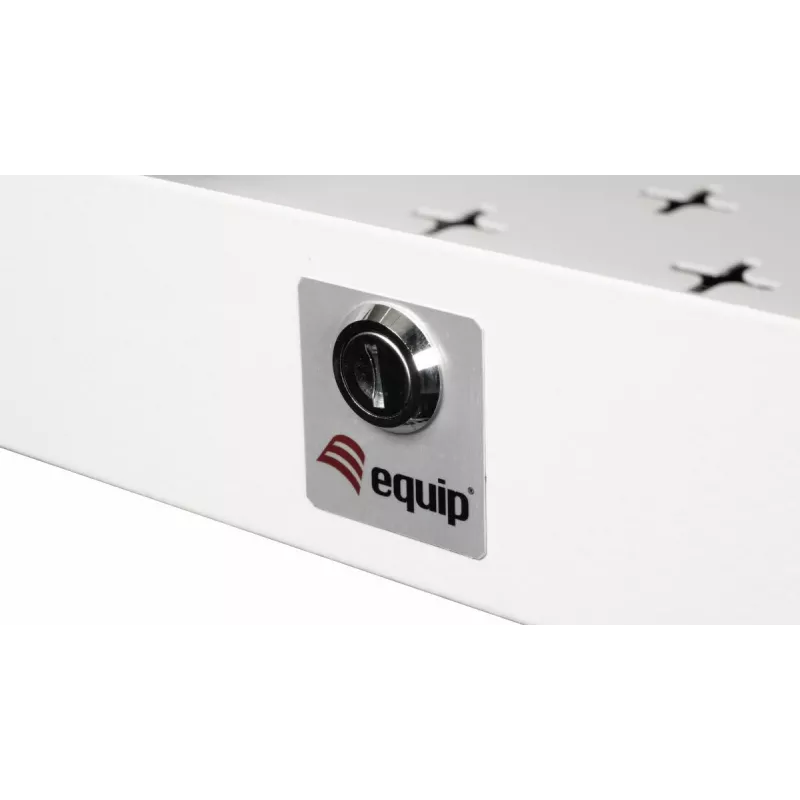

• Security: Key lock included
• EAN: 4015867232606

How to use

Mount the cabinet securely to a suitable load-bearing wall using appropriate fixings (not supplied) that match the wall material. Choose the front rail orientation (vertical, horizontal or angled) according to the devices you will install, and fit 2U or 3U equipment into the rack rails. Place non-rack-mountable devices in the lower housing using the pre-punched holes or install an optional mounting plate for a firmer attachment. Lock the front access to protect equipment after installation.

Recommendations

Install the cabinet at a height that allows safe access and proper airflow around installed devices. Verify wall fixings and combined equipment weight do not exceed the 30 kg maximum load. Use suitable cable management and do not obstruct ventilation openings to ensure reliable operation.
