Επιτοίχιο rack 4U 600x450 γκρι - Extralink

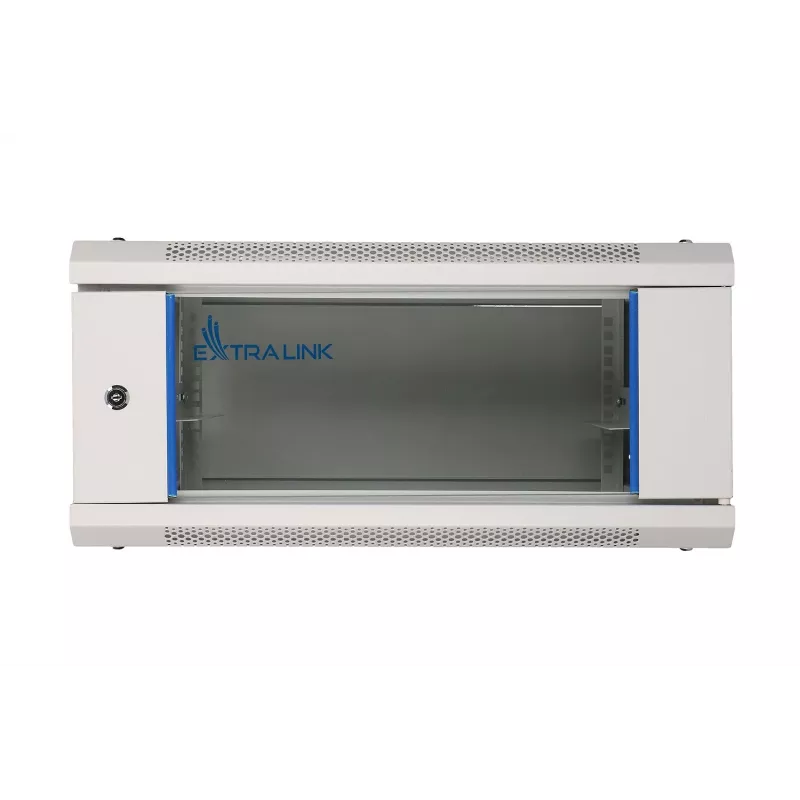

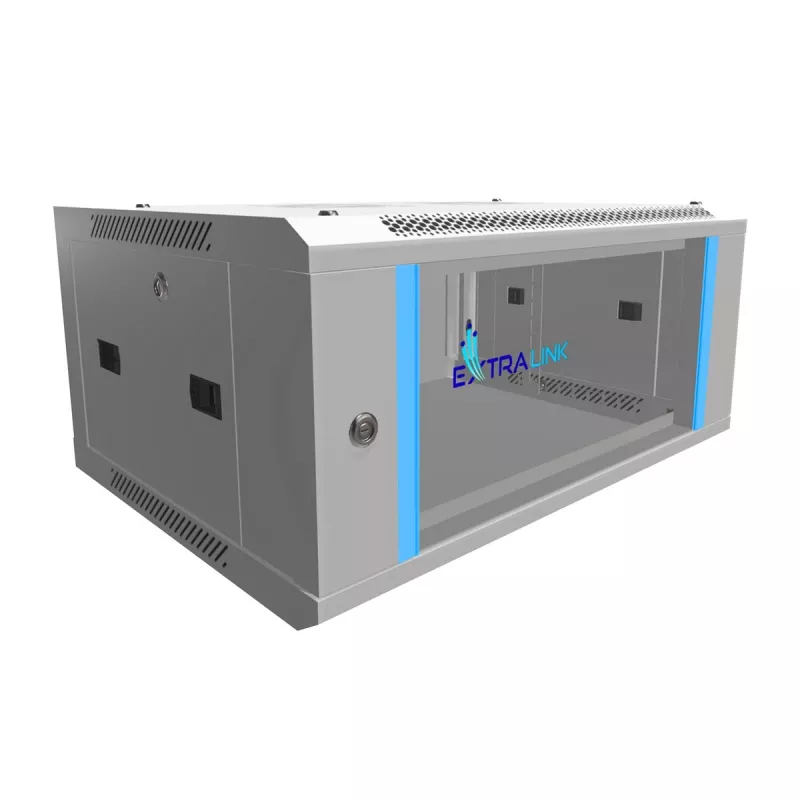

The Extralink 4U wall-mounted rack cabinet (600 x 450 mm) is a compact solution for mounting networking, server and CCTV equipment on walls in offices, server rooms and control rooms. The enclosure is made from cold-rolled steel with a tempered glass front door that can be configured to open to the left or right. The cabinet has a height designation of 4U and a total height of 280 mm, with a grey finish and a secure key lock included.

Advantages

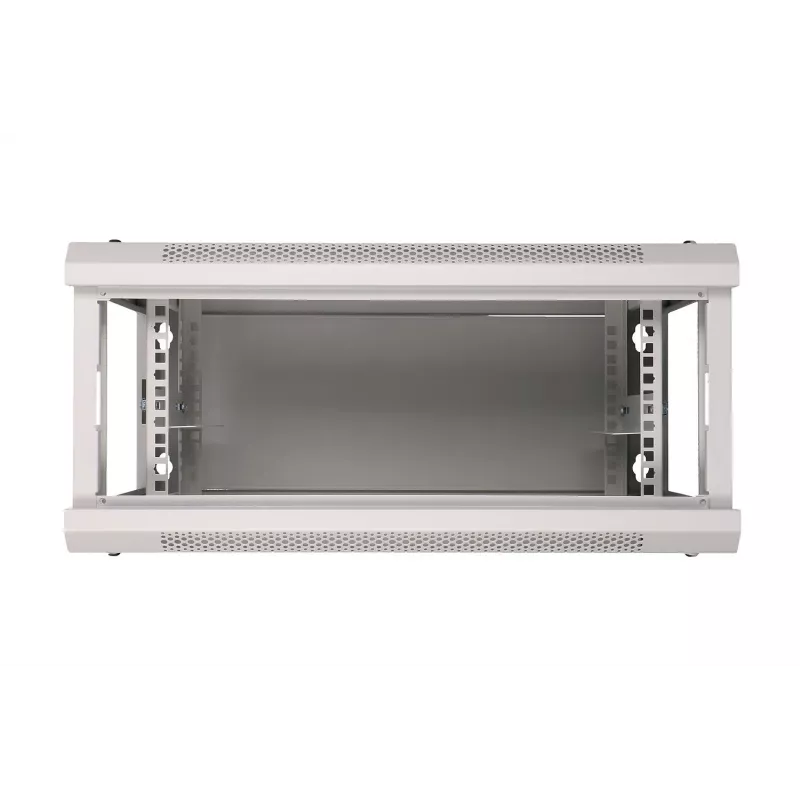

This 4U rack cabinet provides a sturdy steel construction combined with a tempered-glass front for device visibility. Side panels are removable using snap fasteners for quick access to equipment and cabling. The top panel includes two fan mounting positions and an additional cable conduit to improve ventilation and cable routing. The cabinet is optimized for wall mounting and supports orderly installation of 19" rack equipment within a compact footprint.

Suitable for

Key specifications

How to use

Mount the cabinet securely to a suitable load-bearing wall following local installation and safety regulations. Install 19" equipment into the vertical rails using the clearly marked U designations to position devices. Use the snap fasteners to remove side panels when routing cables or accessing internal components. If additional cooling is needed, install fans in the two top mounting positions and route cables through the provided conduit.

Recommendations

Install only equipment within the cabinet's 4U capacity and observe the maximum load limit. Ensure proper ventilation by leaving clearance around the cabinet and consider adding the recommended fans when housing heat-generating devices. Lock the front door to restrict physical access to installed equipment.
