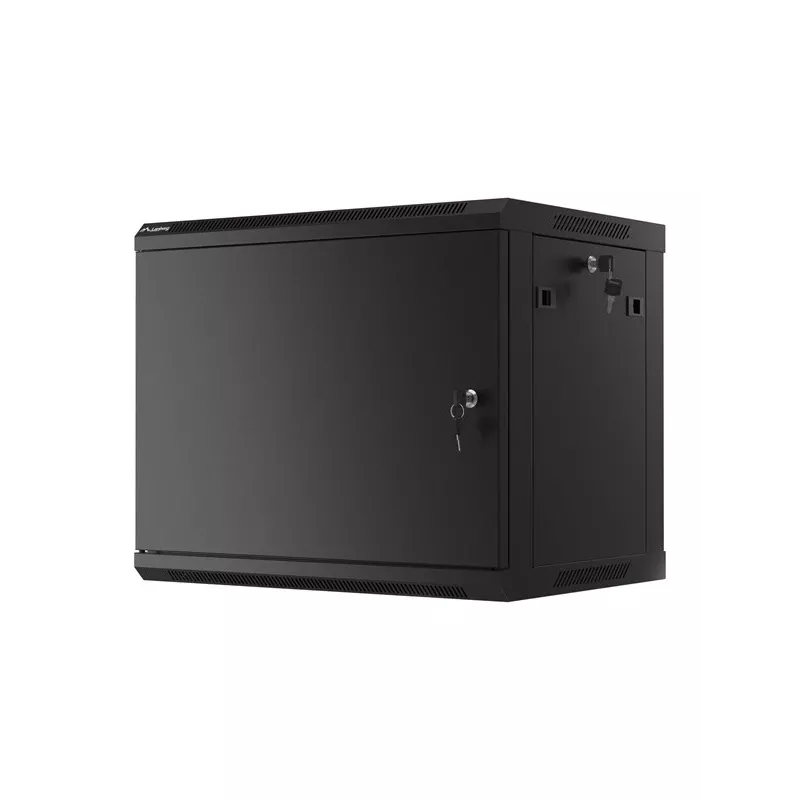

Επιτοίχια βάση rack Lanberg WF01-6409-00B 9U μαύρο

Wall mount, single section Lanberg cabinet WF01-6409-00B is a 9U wall-mounted rack designed to organize network equipment and cabling in 19" size. The cabinet supports a maximum load of 60 kg, has IP20 protection rating, and is supplied in a flat pack for self-assembly. It features a lockable front door that can rotate up to 180°, removable side panels with locks, and cable entry panels on the top and bottom. The chassis is made of high-grade cold-rolled steel and the product is finished in black.

Advantages

The Lanberg WF01-6409-00B offers compact 9U capacity suitable for wall mounting, a sturdy steel construction with a 60 kg load limit, and IP20 protection for indoor installations. Its removable side panels and a front door with a 180° opening and lock facilitate easy access for maintenance. Flat-pack delivery reduces transport costs and the included rail mounts, M6 cage nuts and blank entry panels simplify installation.

Suitable for

• Network equipment organization in small and medium businesses
• Server rooms and network closets with limited floor space
• CCTV and IP surveillance systems
• Low-voltage systems: cable TV, alarm and access control systems, fire protection

Key specifications

• Rack capacity: 9U
• Maximum load: 60 kg
• Dimensions (H x W x D): 521.35 mm x 600 mm x 450 mm
• Maximum mounting depth: 379.5 mm
• Weight: 19.72 kg
• Protection rating: IP20
• Material: cold-rolled steel
• Colour: Black
• Front door: lockable, opens to 180°

How to use

Unpack the flat-packed cabinet and assemble the frame following the supplied instructions. Secure the cabinet to a suitable wall structure using appropriate fasteners for the wall type and ensure it is level. Install the 19" rail mounts at the required U positions using the included M6 cage nuts. Route cables through the top or bottom cable entry panels, mount network devices within the 9U space, and fasten them to the rails. Close and lock the front door; removable side panels can be taken off for wider access during installation or maintenance.

Recommendations

Install the rack on a load-bearing wall and use wall anchors rated for at least the cabinet weight plus installed equipment. Distribute device weight evenly on the rails, keep heavier equipment lower in the rack, and maintain proper ventilation clearance. For outdoor or damp locations choose an enclosure with a higher IP rating.
