Επιτοίχια βάση με κλίση Techly για TV LED LCD 42-80 inch μαύρη

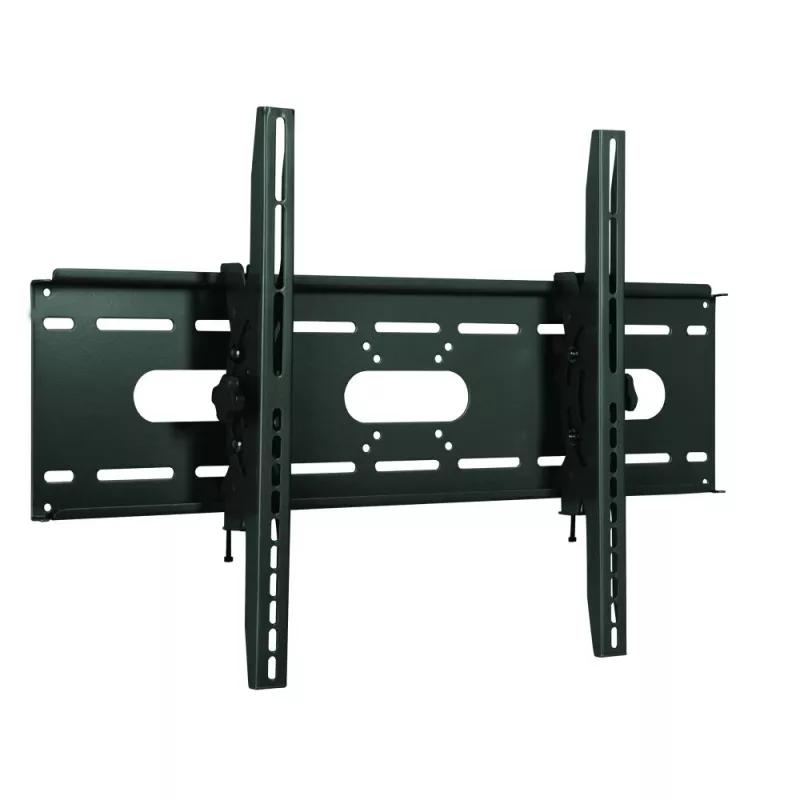

The Techly ICA-PLB-890 TV mount is a wall bracket designed to support flat-panel televisions from 42" up to 80" while keeping a low profile and secure attachment. Constructed for residential and commercial environments, the mount holds a maximum load of 80 kg and positions the screen 8.2 cm from the wall. It provides a tilt adjustment range from -15° to 15° and accommodates common VESA patterns from 200 x 200 mm up to 800 x 500 mm, enabling compatibility with a wide range of modern TVs.

Advantages

The mount offers sturdy support with an 80 kg maximum load rating and a compact 8.2 cm distance to the wall for a streamlined appearance. Tilt adjustment allows simple fine-tuning of viewing angle to reduce glare and improve comfort. Broad VESA compatibility covers many popular screen models, while the black finish integrates unobtrusively into living rooms, conference areas, and public spaces. The design balances strength and a slim profile for reliable long-term use.

Suitable for

• Mounting 42"–80" flat-panel TVs in living rooms and home theaters
• Installing displays in meeting rooms, lobbies, or classrooms
• Wall installations where a low-profile appearance is desired
• Applications requiring tilt adjustment to optimise viewing angle

Key specifications

• Maximum weight capacity: 80 kg
• Supported screen size range: 42" to 80"

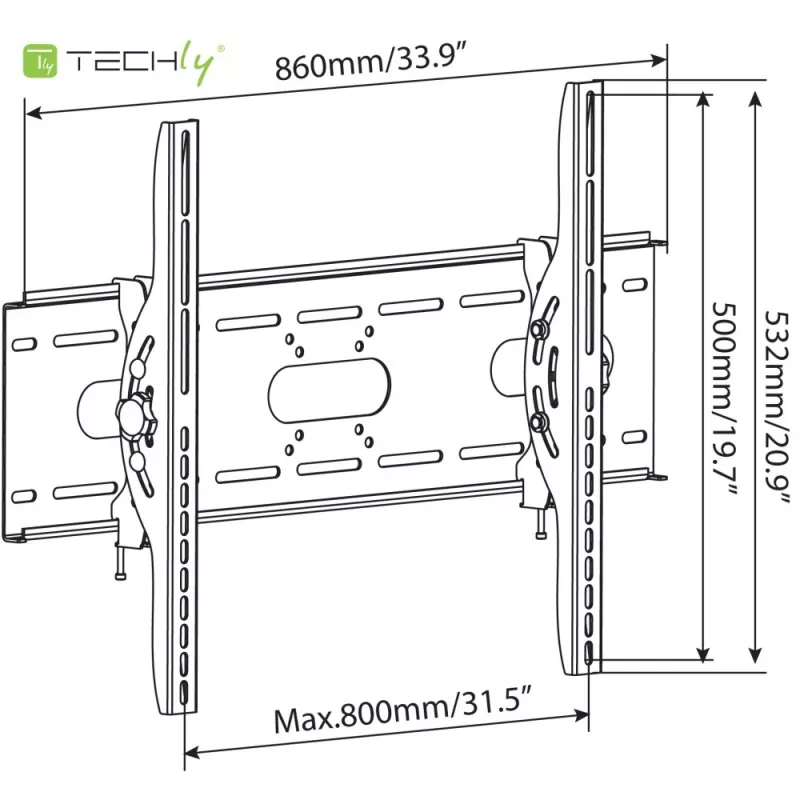

• VESA compatibility: from 200 x 200 mm to 800 x 500 mm
• Tilt adjustment range: -15° to 15°
• Distance from wall: 8.2 cm
• Product colour: Black
• Number of displays supported: 1
• Product weight: 2.7 kg

How to use

Select a suitable mounting location on a solid wall surface, preferably on studs or with appropriate wall anchors for the substrate. Measure and mark the required VESA holes according to your TV's mounting pattern within the supported range, then attach the mounting plate to the TV using the correct screws and spacers. Secure the wall plate to the wall using appropriate fixings, lift the TV onto the bracket and engage the locking mechanism or safety screws where provided. Adjust the tilt within the -15° to 15° range to achieve the desired viewing angle and confirm all fasteners are tightened before use.

Recommendations

Use certified fasteners suitable for your wall type and observe the TV's weight and VESA pattern to ensure compatibility. For safety and optimal performance, two people are recommended for installation when handling large displays. Periodically inspect mounting hardware and tighten all fixings as needed.
