Ενεργή βάση Brodit 736267 tablet/UMPC μαύρη

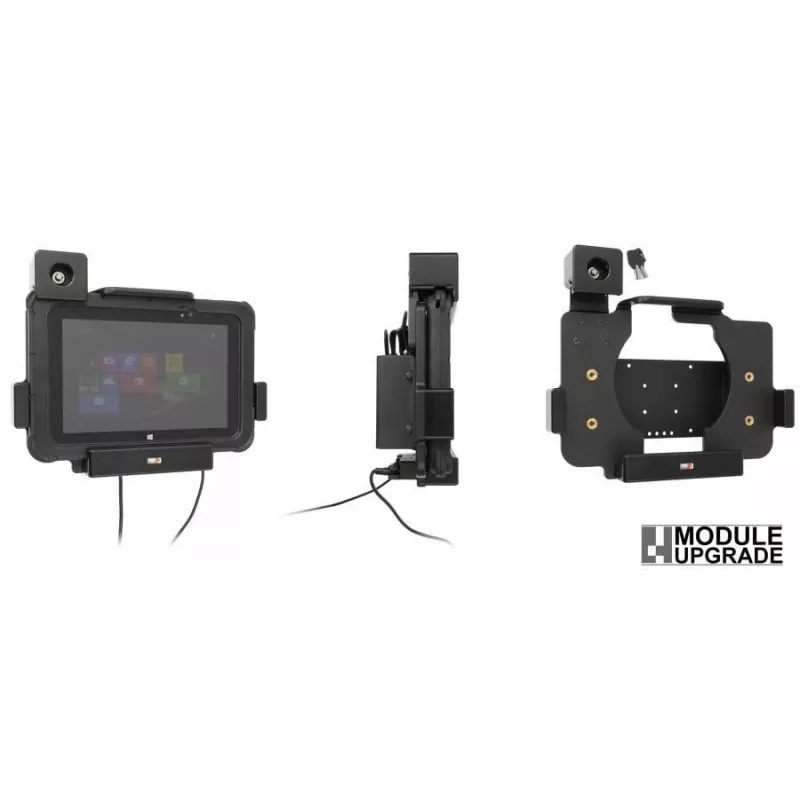

The Brodit 736267 Active Holder is a Module Upgrade Cradle for Zebra ET5x series tablets, designed to hold the tablet securely while providing power and USB-A host functionality. The cradle includes a keyed lock with two keys and supports connection to a DC barrel jack for external power. It is compatible with rugged frames and can be used with or without expansion modules or a handstrap. USB-A (host) and DC 5.5x5.1-1.5 mm power connection are available (cable not included).

Advantages

This cradle supplies reliable charging to the tablet via pogo-pin contacts when connected to an external DC supply and offers a USB-A host port that can power and communicate with accessories such as extended-range barcode scanners, keyboards or sensors. The keyed lock secures the tablet against unauthorized removal, and the unit is built to withstand frequent professional use for improved workplace efficiency and device accessibility.

Suitable for

• Vehicle or indoor mounting of Zebra ET5x tablets
• Connecting and powering USB-A accessories (scanners, keyboards, sensors)
• Environments that require a lockable cradle for device security

Key specifications

• Model: Brodit 736267 Active holder / Module Upgrade Cradle
• Compatibility: Zebra ET5x series tablets (with rugged frame, with/without expansion module/handstrap)
• Power connector: DC barrel jack 5.5 x 5.1 - 1.5 mm (cable not included)
• USB: USB-A host port (up to 1.5 A when externally powered, 1.1 A when powered from tablet)
• Lock: Keyed lock included (2 keys)
• Mount type: Screw mount
• Colour: Black
• Weight: 1.192 kg

How to use

Mount the cradle using the screw mount points suitable for your vehicle or indoor installation, then place the Zebra ET5x tablet into the cradle so the pogo pins align with the tablet contacts. Secure the cradle with the keyed lock to prevent removal; two keys are supplied. For external power, connect a suitable 12 V DC supply to the DC barrel jack (cable sold separately) to enable full USB-A output. If no external 12 V supply is used, the USB-A port will draw power from the tablet and provide reduced current.

Recommendations

For reliable charging and maximum USB-A output (1.5 A), use a stable 12 V DC external power source. Use suitable cables and accessories rated for the required current. Avoid leaving accessories that draw power from the tablet connected long-term without external power to prevent rapid battery drain.
