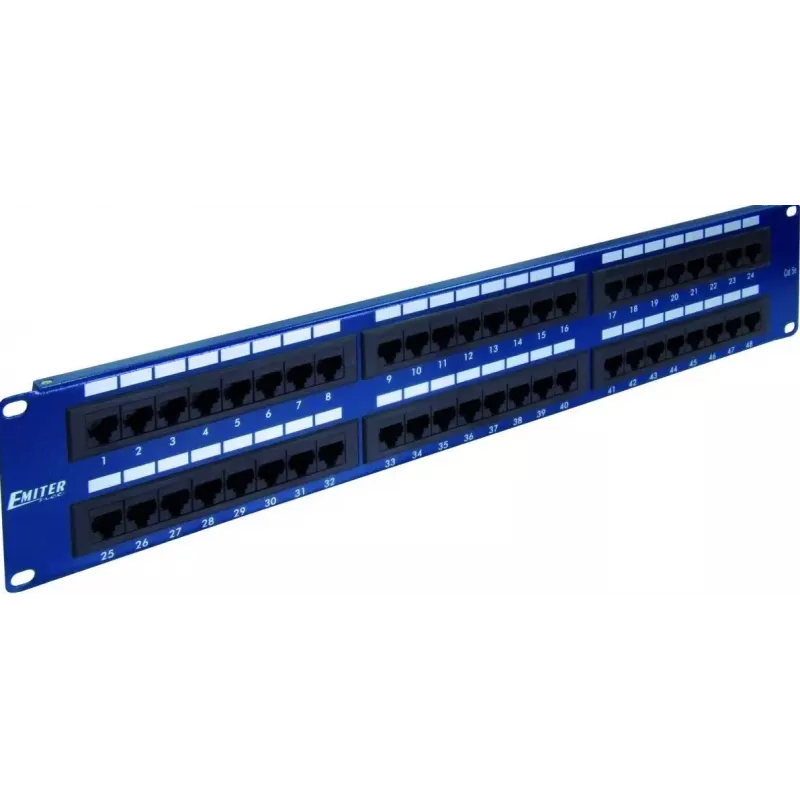

EMITERNET PANEL 19, 48XRJ45 UTP CAT.5E (2U) ΜΠΛΕ DCN/PPFA652K488C5E

Double the ports in the same 2U footprint—this 48-port patch panel delivers high-density connectivity without sacrificing accessibility. Built for data centers and structured cabling, its unshielded Cat.5e design supports Gigabit Ethernet while the durable blue steel chassis stands out in crowded racks.

Highlights

• 48 RJ45 ports in 2U rack space – maximize port density without sacrificing accessibility
• Supports Cat.5e UTP cabling for 1000BASE-T Gigabit Ethernet
• Dual-coded T568A/B IDC termination blocks for fast, error-free punch-down
• SPCC steel construction with blue finish for durability and easy identification
• Numbered ports 1-48 for straightforward cable management

In daily use

Mount this panel in any standard 19-inch rack and terminate horizontal cables from the rear using a 110-style punch-down tool. The clearly labeled IDC blocks accept 22-24 AWG solid conductors, and the dual color-coding supports both T568A and T568B wiring schemes. On the front, each RJ45 jack provides a secure connection for patch cords to switches or other active equipment. The blue color helps distinguish this panel from other network components, reducing the chance of misidentification in crowded racks.

Full specifications

• Product type: Network patch panel
• Rack standard: 19-inch
• Rack units: 2U
• Number of ports: 48
• Connector type (front): RJ45 female
• Cable category: Cat.5e
• Shielding: UTP (unshielded twisted pair)
• Color: Blue
• Mounting: Rack-mount
• Termination type (rear): IDC (insulation-displacement connector)
• Wiring standard: T568A/B (dual-coded)
• Network speed support: Up to 1000BASE-T (Gigabit Ethernet)
• Material: SPCC steel
• Operating temperature: -10°C to 60°C
• Humidity: 10% to 90% RH (non-condensing)
• Certifications: RoHS Compliant
• Port labeling: Numbered 1-48
• Backwards compatibility: Cat.5, Cat.3
• Application: Local Area Networks (LAN), Data Centers, Server Rooms

Final note

A practical choice for high-density network installations where every rack unit counts.
