EMITER SOLAX Ασύρματη γέφυρα RS485 για μετατροπείς Solax

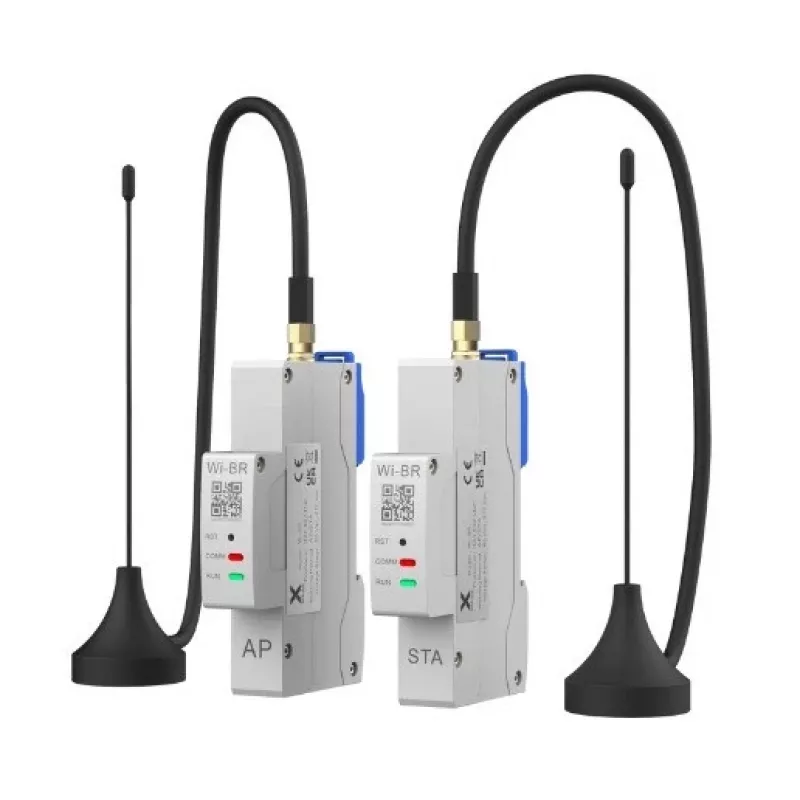

The EMITER SOLAX Wireless RS485 Bridge is a plug-and-play communication dongle designed to enable wireless monitoring and control of Solax X1 and X3 series inverters. It replaces the need for a wired connection by transmitting RS485 bus signals over Wi-Fi, allowing seamless integration with the Solax Cloud platform.

Advantages

This device simplifies inverter monitoring by eliminating cable runs. It supports real-time data logging, remote firmware upgrades, and fault diagnosis. The compact design and internal antenna ensure easy installation without external components.

Suitable for

• Solax X1 and X3 series inverters with a dedicated Pocket WiFi port
• Solar installations requiring remote monitoring via Solax Cloud
• Systems where wired RS485 connection is impractical

Key specifications

• Communication Interface: RS485 (proprietary connector)
• Wireless Technology: Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz
• Power Supply: DC 5V (supplied by inverter)
• Power Consumption: < 1 W
• Operating Temperature: -20°C to +65°C
• Monitoring Platform: Solax Cloud
• Installation: Plug & Play
• Configuration: Solax Cloud App / Web Portal
• Antenna Type: Internal
• LED Indicators: Power, Network Status, Data Transmission
• Max Inverters Supported: 1 per dongle
• Housing Material: ABS Plastic
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure your inverter is compatible and the Wi-Fi signal is strong. Use the Solax Cloud app for easy setup and monitoring.
