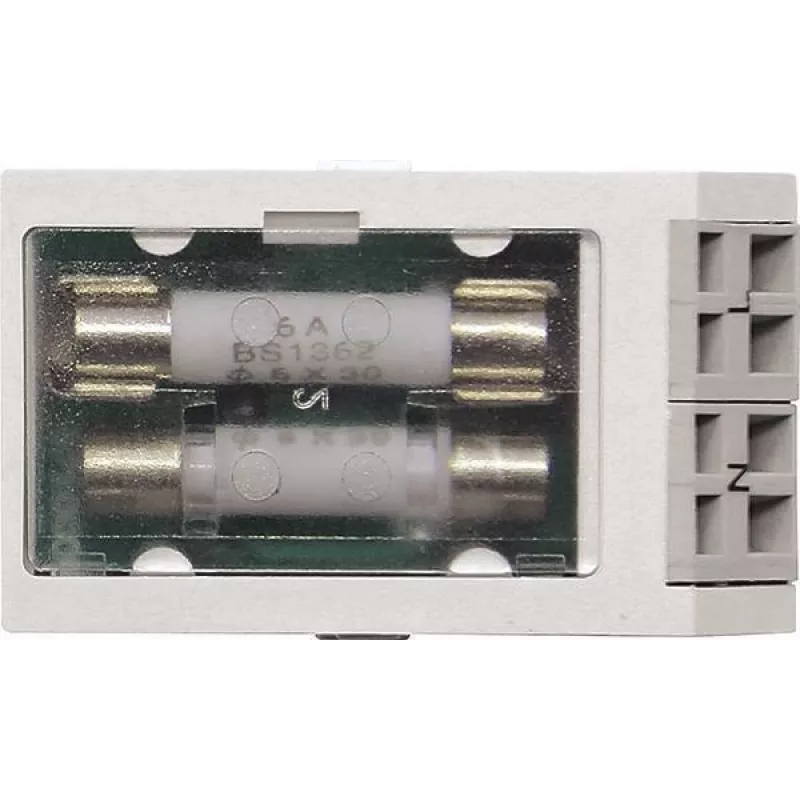

Eltako Μονάδα ασφάλειας ελέγχου για MUA-100 SM/MUA-100 (28380004)

Protect your control circuits with the Eltako Control Fuse Module, engineered for seamless integration with MUA-100 and MUA-100 SM universal actuators. This 1-pole module provides reliable overcurrent and short-circuit protection, featuring a 2A slow-blow fine-wire fuse and screw terminals for secure connections.

Overview

The Eltako 28380004 is a dedicated control fuse module designed to safeguard the control circuitry of Eltako MUA-100 series universal actuators. It accommodates a standard 5x20mm fine-wire fuse, rated at 2A with slow-blow characteristics, ensuring dependable protection against overcurrent and short-circuit events. The module is constructed from durable plastic and offers a compact form factor suitable for DIN rail mounting alongside the actuator.

What stands out

• Precision protection: 2A slow-blow fuse guards sensitive control circuits.
• Robust connectivity: Screw terminals ensure secure and maintenance-friendly wiring.
• Versatile compatibility: Works with both MUA-100 and MUA-100 SM universal actuators.
• Reliable performance: Operates within a wide temperature range from -20°C to +50°C.
• Compact design: IP20-rated housing for safe indoor use.

Technical details

• Product type: Control fuse module
• Compatibility: Eltako MUA-100, Eltako MUA-100 SM universal actuators
• Fuse type: Fine-wire fuse (5x20mm)
• Fuse rating: 2A, slow-blow
• Max. switching current: 2A
• Max. control voltage: 250V AC
• Number of poles: 1-pole
• Connection type: Screw terminals
• Mounting type: Designed for mounting with MUA-100 actuator (DIN rail compatible)
• Housing material: Plastic
• Protection class: IP20
• Operating temperature: -20°C to +50°C
• Storage temperature: -25°C to +70°C
• Relative humidity: 5% to 93% (non-condensing)
• Function: Overcurrent and short-circuit protection for control circuits

Our verdict

The Eltako Control Fuse Module is an essential accessory for MUA-100 actuator installations, delivering dependable protection and easy integration in a compact, durable package.
