Eltako χρονοδιακόπτης 1 καναλιού με ελεύθερη επαφή SU62PF-BT/UC, Bluetooth, 16A 30062006

Switching capacity of 16A at 250V AC with a potential-free NO contact makes this Eltako time switch a robust solution for controlling lighting, heating, and other loads. The built-in Bluetooth interface allows programming and monitoring via the Eltako Connect app, while the illuminated digital display provides clear status indication.

Overview

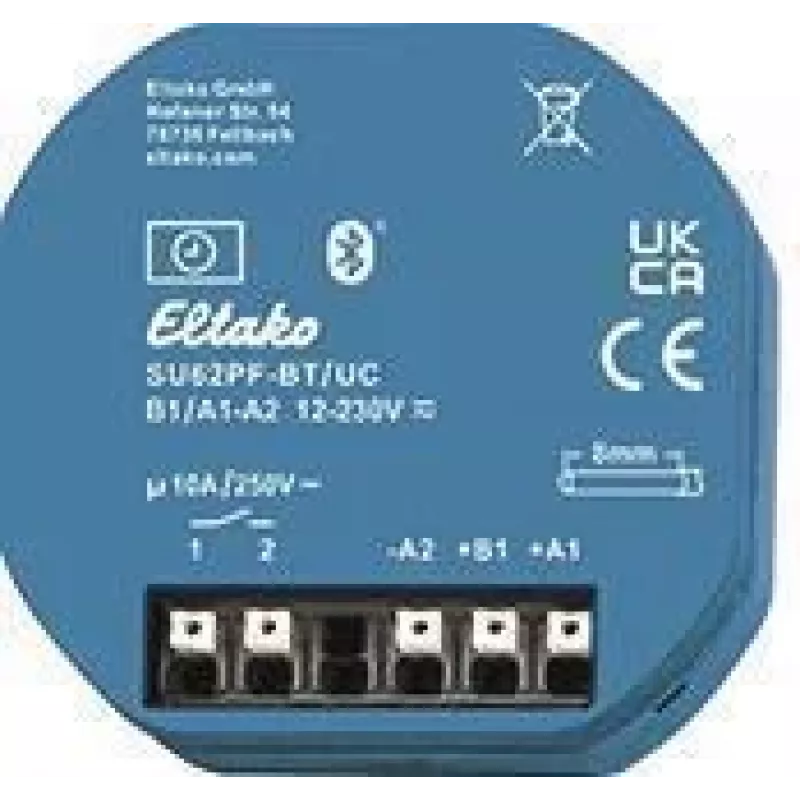

The Eltako SU62PF-BT/UC is a 1-channel digital time switch designed for DIN rail mounting. It supports daily, weekly, astro, random, and pulse programs with 60 memory locations. The control voltage range of 8-230V AC/DC offers flexibility for various installations.

What stands out

• Potential-free NO contact for versatile switching applications
• Bluetooth connectivity for app-based programming
• Wide control voltage range: 8-230V AC/DC
• Power reserve of approximately 8 years
• Manual override with permanent and temporary ON/OFF

Technical details

• Number of channels: 1
• Contact type: Potential-free NO contact
• Switching capacity (resistive): 16A / 250V AC (cos φ = 1)
• Switching capacity (inductive): 10A / 250V AC (cos φ = 0.6)
• Control voltage: 8-230V AC/DC
• Standby power consumption: 0.03-0.5W
• Memory locations: 60
• Power reserve: approx. 8 years
• Time accuracy: ±1.5 sec/day at 20°C
• Shortest switching time: 1 minute
• Mechanical life: 1,000,000 switching cycles
• Operating temperature: -20°C to +50°C
• Protection class: IP20
• Mounting: DIN rail (1 TE)

Our verdict

A feature-rich time switch with Bluetooth connectivity and a wide control voltage range, ideal for modern building automation.
