ELOAD TIETOSET Φορτιστής EV 11kW 3x16A καλώδιο 10m Type 2

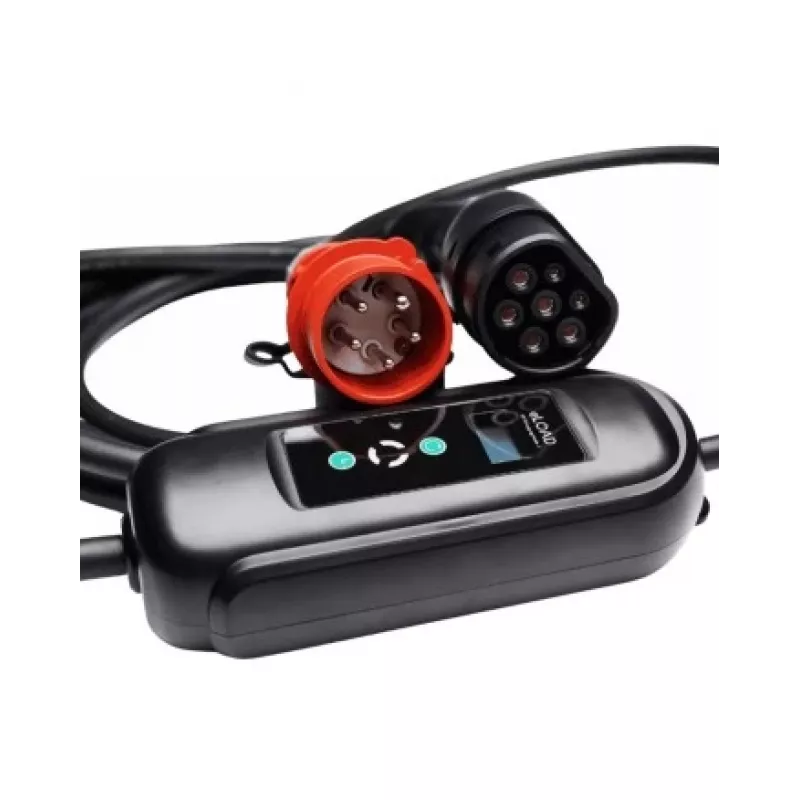

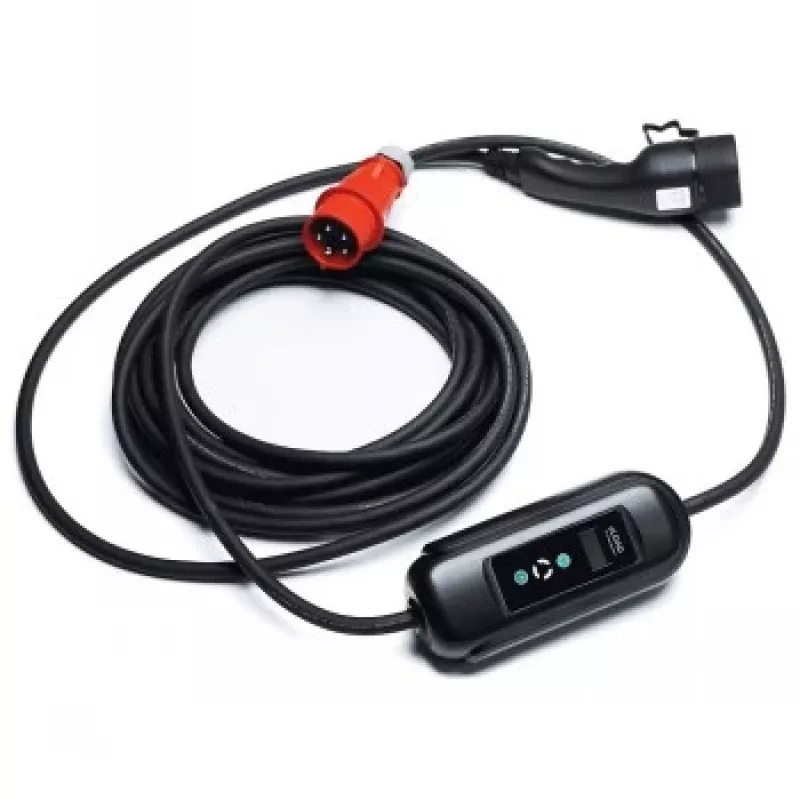

The ELOAD TIETOSET is a professional 3-phase electric vehicle charger designed for efficient and safe home or commercial charging. With a power output of 11 kW and a charging current of 3 x 16 A, it delivers fast and reliable charging for all Type 2 compatible electric vehicles. The integrated 10-meter charging cable provides flexibility and convenience, while the robust IP54-rated enclosure ensures durability in various weather conditions.

Advantages

This charger offers a compact wall-mounted design with integrated safety features including overcurrent, short-circuit, overvoltage, and undervoltage protection. The built-in RCD Type A + DC 6mA fault current detection ensures maximum safety during operation. LED status indicators provide clear visual feedback on charging status, making it user-friendly.

Suitable for

• Home garages and private parking spaces
• Commercial parking lots and workplace charging
• Fleet charging stations
• Any location requiring a reliable and safe 11 kW AC charging solution

Key specifications

• Brand: ELOAD
• Model: TIE-EV16-P3-10M
• Charging Power: 11 kW
• Charging Current: 3 x 16 A
• Phases: 3-Phase
• Input Voltage: 400 V AC
• Frequency: 50 Hz
• Vehicle Connector: Type 2 (Mennekes)
• Cable Length: 10 m
• Ingress Protection: IP54
• RCD: Integrated Type A + DC 6mA
• Mounting: Wall-mounted
• Operating Temperature: -30°C to +50°C
• Enclosure Material: PC/ABS
• Certifications: CE
• Safety Features: Overcurrent, Short-circuit, Overvoltage, Undervoltage protection
• User Interface: LED status indicators
• Cable Type: Fixed charging cable
• Installation: Professional installation recommended
• Energy Meter: No integrated energy meter
• Communication Protocol: None (basic charger)

Recommendations

For optimal performance and safety, professional installation by a qualified electrician is strongly recommended. This charger is ideal for users seeking a straightforward, reliable, and safe EV charging solution without advanced smart features.
