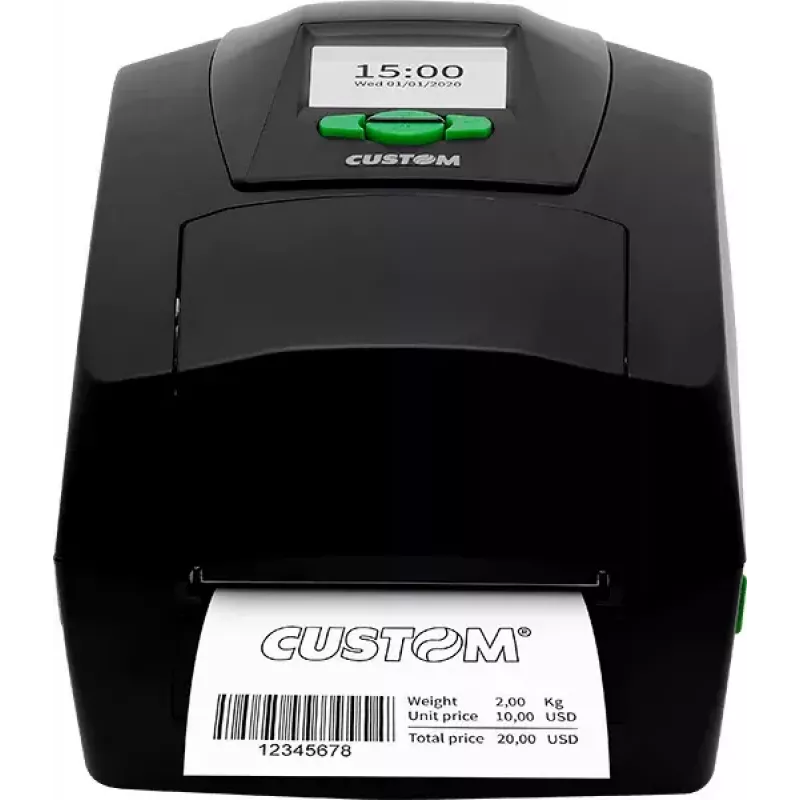

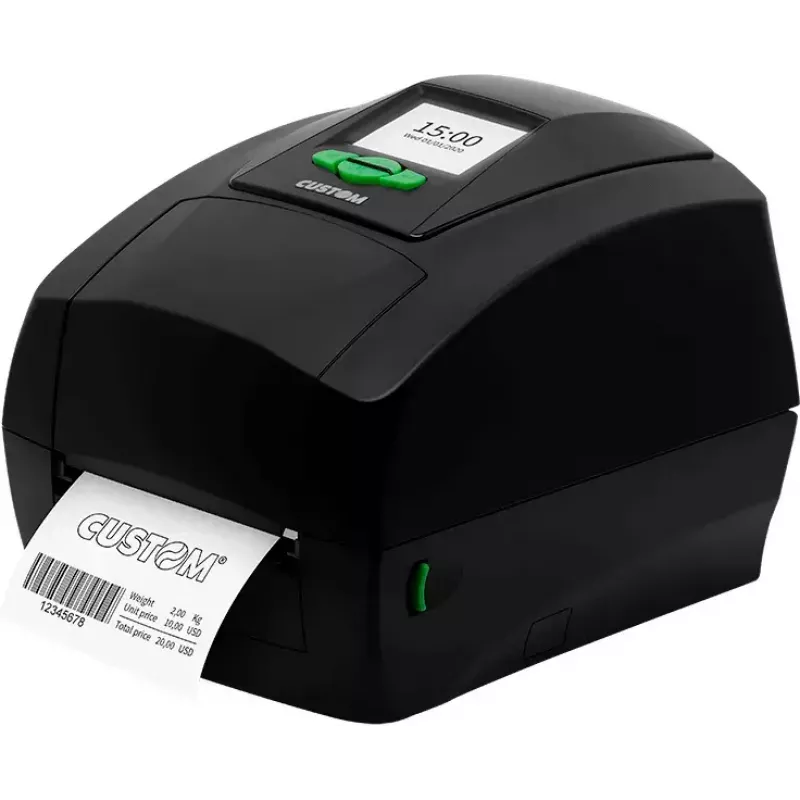

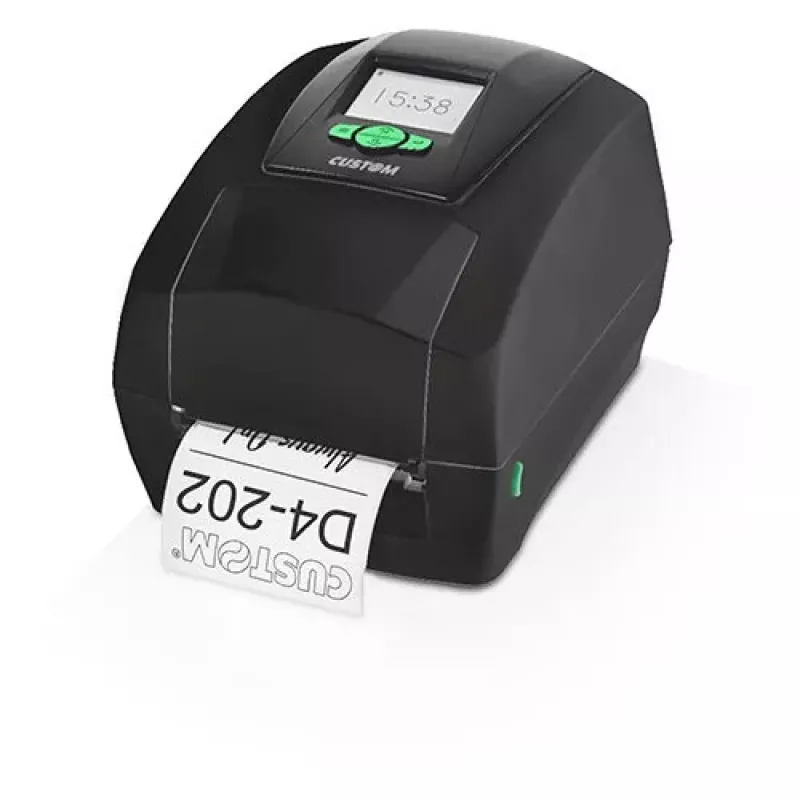

Εκτυπωτής POS CUSTOM D4 202 Ενσύρματος Θερμικός άμεσος 203x203 DPI

The CUSTOM D4 202 is a compact 4" desktop label and POS printer designed for wired installations. It supports direct thermal and thermal transfer printing at a maximum resolution of 203 x 203 DPI and offers a maximum printing width of 104 mm. The unit includes a color backlight LCD for clear menu navigation, multiple communication ports including USB Type-A, RJ-45 (Ethernet) and serial interfaces, an SD card slot for data storage and a real-time clock for timestamp printing. With a small footprint and a maximum media roll diameter of 12.7 cm, this black printer suits a variety of retail and business printing tasks.

Advantages

The printer combines two print technologies (direct thermal and thermal transfer) for flexible media use and delivers barcode-capable output. A colorful backlight LCD simplifies configuration and status checks. Multiple wired interfaces and an SD slot provide reliable connectivity and local data storage. The compact, 2 kg design with a wide 104 mm print head supports common label sizes while keeping desktop space requirements low.

Suitable for

• Retail point-of-sale receipts and labels
• Inventory and asset labelling
• Shipping and logistics labels for small to medium businesses
• Barcode printing for product identification and tracking

Key specifications

• Print technology: Direct thermal / thermal transfer
• Maximum resolution: 203 x 203 DPI
• Maximum printing width: 104 mm
• Media thickness supported: 0.06–0.2 µm
• Maximum media roll diameter: 12.7 cm
• Connectivity: USB Type-A, RJ-45 (Ethernet), Serial
• Display: Color backlight LCD
• Weight: 2 kg
• Colour: Black

How to use

Install the printer on a stable desktop surface and connect it to your network or POS terminal using the required wired interface (USB, Ethernet or serial). Load label or receipt media according to the media-width guides and set the media thickness if applicable. Use the color backlight LCD menu to configure print mode (direct thermal or thermal transfer), set date/time for timestamping and select network or serial communication settings. Insert an SD card into the slot to store templates or logs when needed. Install the manufacturer drivers or standard POS printer drivers on your system and test-print a sample label to verify alignment and print quality.

Recommendations

Use the specified media thickness range (0.06–0.2 µm) and keep the print head clean to maintain print quality and prolong the life of the device. Select thermal transfer mode with compatible ribbons for long-lasting labels, and ensure the real-time clock is set correctly when timestamps are required.
