Εκτυπωτής ετικετών TSC TC210

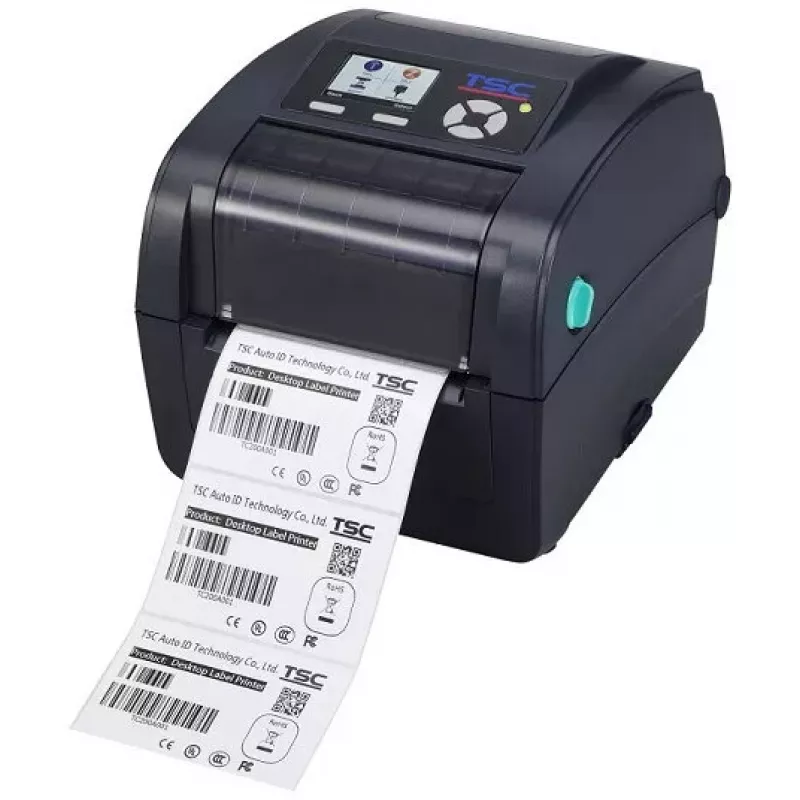

The TSC TC210 is a desktop thermal transfer label printer designed for compact workspaces. Based on the TSC TC series, it produces 4-inch (up to 108 mm) wide labels, tags or receipts at speeds up to 152 mm/s (6 ips) with a maximum resolution of 203 x 203 DPI. The printer supports thermal transfer ribbons up to 110 m on 0.5" notched cores and accepts label rolls up to 5" diameter on 1" or 1.5" cores. Standard interfaces include Ethernet, USB 2.0, USB host and RS-232 serial.

Advantages

The TC210 combines a small footprint with reliable, durable operation and straightforward media loading. It offers versatile connectivity including wired Ethernet and USB, a TFT display for basic status information, and support for center-biased, spring-loaded roll installation. With thermal transfer printing and a 108 mm maximum print width, it delivers consistent output for a variety of labeling tasks.

Suitable for

• Retail price and shelf labels
• Shipping and logistics labels
• Inventory and asset tagging
• Small office and point-of-sale labeling

Key specifications

• Print technology: Thermal transfer
• Maximum printing width: 108 mm
• Resolution: 203 x 203 DPI
• Print speed: 152 mm/sec (approx. 6 ips)
• Interfaces: Ethernet, USB 2.0, USB host, RS-232
• Ribbon length supported: up to 110 m (0.5" notched core)
• Label roll capacity: up to 5" diameter (1" or 1.5" core)
• Display: TFT
• Weight: 2.3 kg
• Colour: Navy

How to use

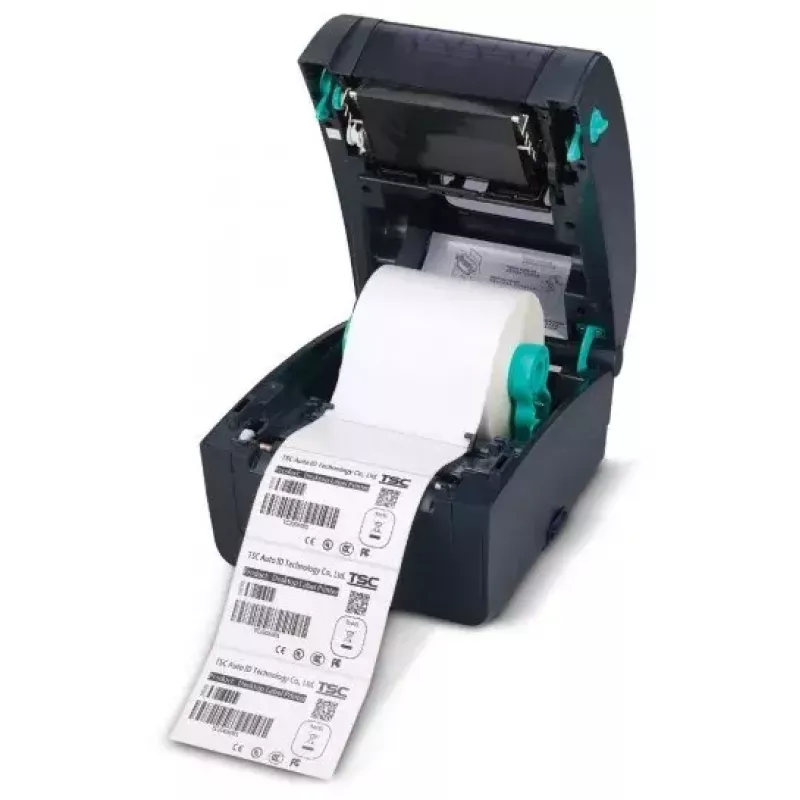

Open the media cabinet and place the label roll on the center-biased, spring-loaded holder; ensure the roll core matches 1" or 1.5" as required. Install the thermal transfer ribbon on the 0.5" notched core path and thread ribbon and media according to the guides. Connect the printer to a computer or network via Ethernet or USB, install the appropriate drivers and configure print settings such as label size and print speed. Use the TFT display to check status and basic settings before printing.

Recommendations

For consistent print quality, use ribbons and label materials compatible with thermal transfer printing and keep the printhead clean. Choose ribbon lengths and core types supported by the TC210 and load media with the label side facing correctly to avoid misfeeds.
