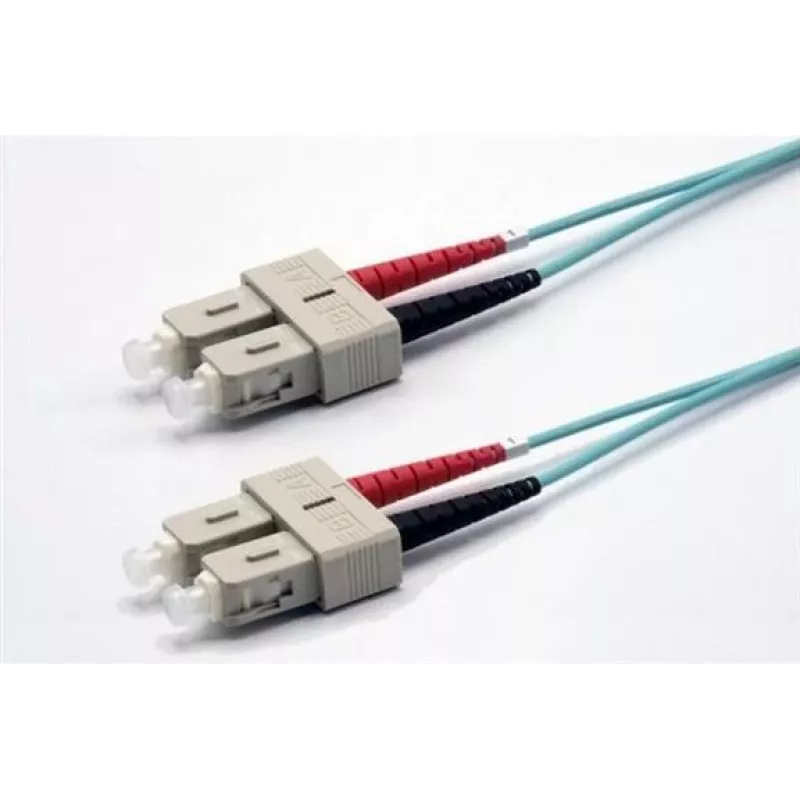

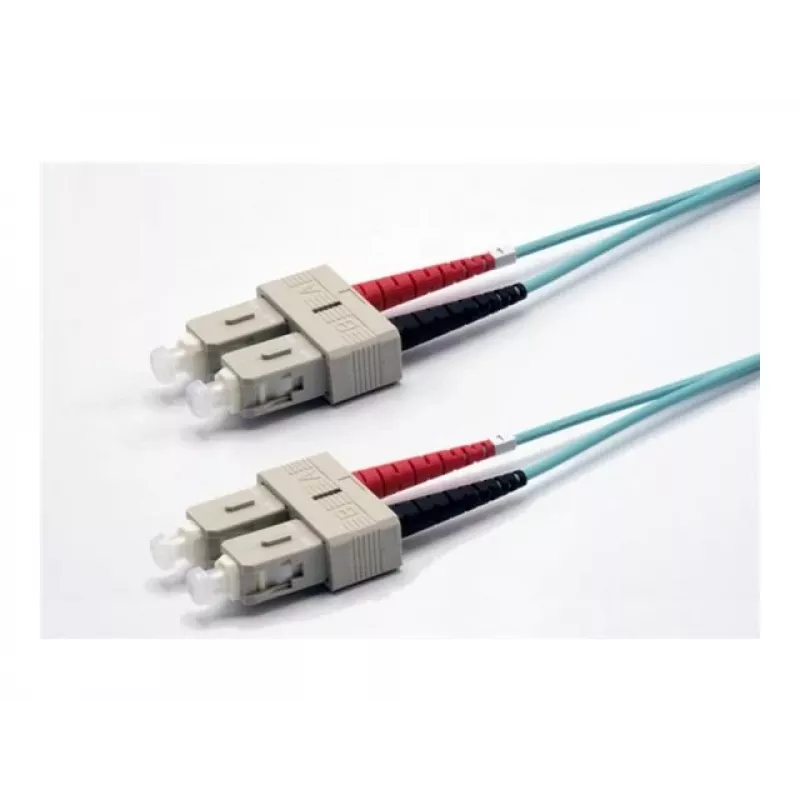

Ekivalan OM3 Duplex Καλώδιο Patch Οπτικής Ίνας SC/SC, 50/125 µm, Aqua, 2,0 m COZOM3DCDC2SA0020A

Data centre technicians and network engineers rely on this OM3 multimode fibre patch cable for high-speed backbone links between switches, patch panels and servers. The aqua jacket identifies it as laser-optimised OM3, ready for 10G, 40G and 100G Ethernet over short distances.

Key specifications

• Fibre type: OM3 multimode, 50/125 µm core/cladding
• Connectors: SC to SC, UPC polish
• Length: 2.0 m
• Jacket material: PVC, aqua colour
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Operating wavelengths: 850 nm / 1300 nm
• Attenuation: ≤ 3.0 dB/km @ 850 nm, ≤ 1.0 dB/km @ 1300 nm
• Minimum bend radius: 30 mm
• Operating temperature: -20°C to +70°C

Why choose it

OM3 fibre supports 10 Gigabit Ethernet up to 300 metres, making it a cost-effective choice for data centre and enterprise backbone cabling. The duplex design with SC connectors ensures reliable, low-loss connections in high-density patching environments.

Ideal use cases

• Data centre backbone links
• Server-to-switch connections
• Fibre channel storage networks
• High-speed campus networks

Good to know

The cable is compliant with RoHS and CE directives. Its PVC jacket provides durability and flexibility for indoor installations.
