EHA ΓΕΦΥΡΑ ΚΑΛΩΔΙΩΝ ΜΑΥΡΗ 7,5 CM 3M (400)

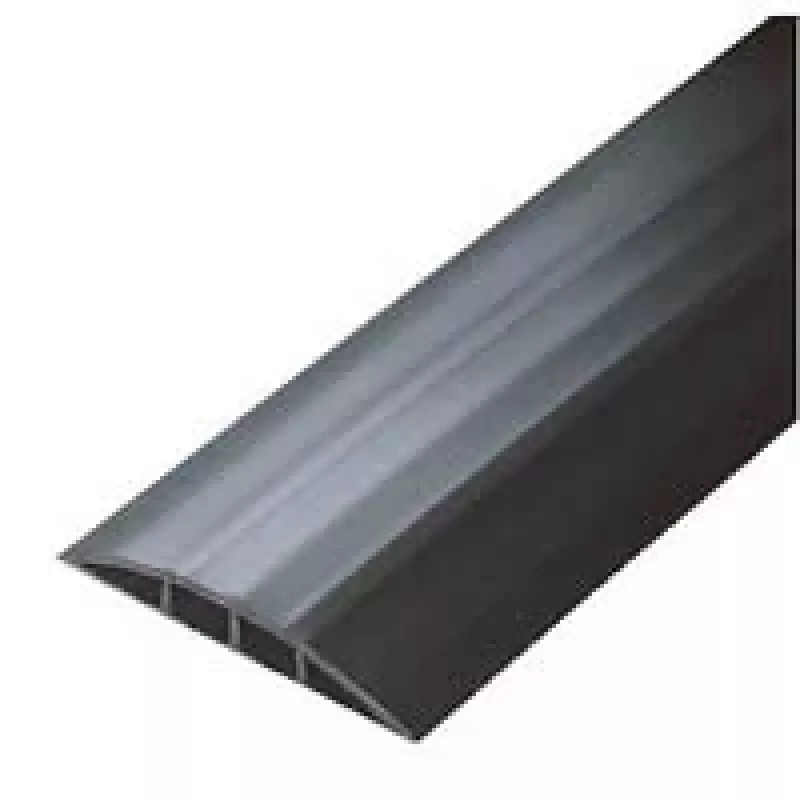

Loose cables on the floor are a tripping hazard and can be damaged by foot traffic or equipment. The EHA 400 Cable Bridge provides a robust and reliable solution for protecting cables in indoor environments, ensuring safety and prolonging cable life.

Who is it for

This cable bridge is ideal for offices, workshops, warehouses, and event venues where cables need to cross walkways or high-traffic areas. It is suitable for electricians, facility managers, and event organizers who require a durable and easy-to-install cable protection system.

Main features

• Two internal channels, each approximately 20 x 10 mm, to organize and separate cables.
• Flat profile with a height of only 17 mm minimizes tripping risk and allows smooth passage of carts and wheelchairs.
• High load capacity up to 1000 kg, suitable for heavy-duty applications including forklift traffic.
• Made from self-extinguishing PVC, enhancing fire safety in indoor environments.
• Cuttable design allows customization to the required length.
• Can be free-standing, screwed, or adhered to the floor for secure installation (screws and tape not included).
• Operating temperature range from -20°C to +60°C, suitable for various indoor conditions.

Specifications

• Brand: EHA
• Model: 400
• MPN: 400
• EAN: 4250619600009
• Product type: Cable Bridge / Cable Protector
• Material: PVC (Polyvinyl Chloride)
• Colour: Black
• Length: 3000 mm
• Width: 75 mm
• Height: 17 mm
• Number of cable channels: 2
• Internal channel dimensions: approx. 20 x 10 mm each
• Load capacity: up to 1000 kg
• Operating temperature: -20°C to +60°C
• Fire resistance: self-extinguishing PVC
• UV resistance: No (optimized for indoor use)
• Cuttable: Yes
• Application environment: Indoor
• Compliance: RoHS, CE
• Installation type: Floor-standing
• Mounting options: Free-standing, screwable, adhesive

Tips

For optimal performance, ensure the floor surface is clean and dry before installation. When cutting the bridge to size, use a fine-toothed saw for a clean edge. If using adhesive or screws, test on a small area first to ensure compatibility with the flooring material.
