EFB Elektronik σύνδεσμος SC συναρμολογούμενος στο πεδίο OM2 μαύρο

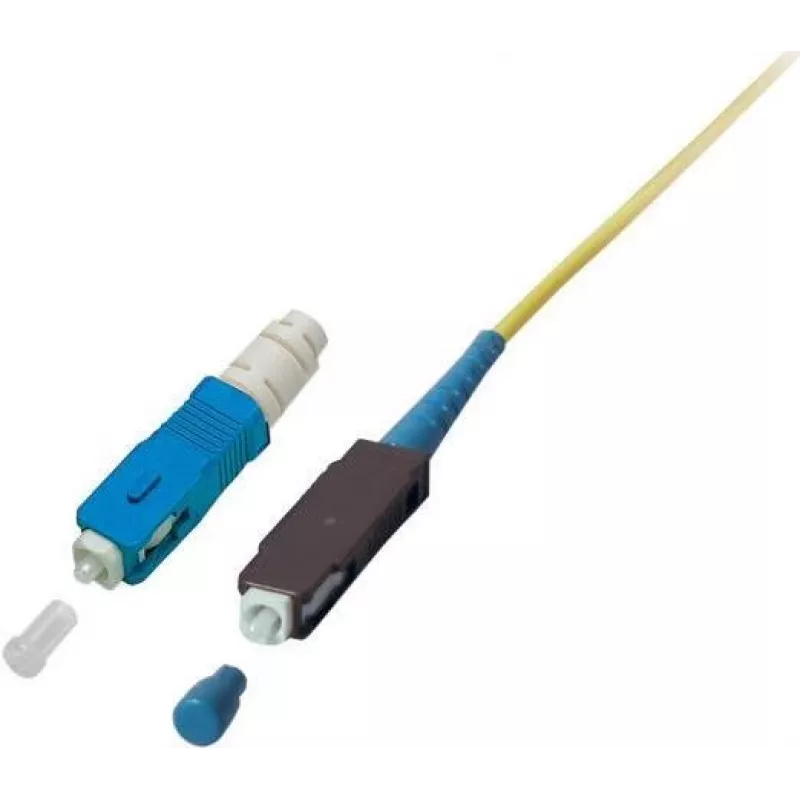

The EFB Elektronik field-assemblable SC connector OM2 black (53201.2) is a high-performance, pre-polished connector designed for quick and reliable termination of multimode OM2 fibers. Ideal for LAN, data centers, FTTH, and industrial networks, this connector eliminates the need for epoxy and polishing, enabling installation in under 60 seconds.

Advantages

No epoxy or polishing required; pre-polished ferrule ensures consistent low insertion loss. Fast assembly saves time and reduces labor costs. Durable zirconia ceramic ferrule and high-grade plastic housing provide long-term reliability. Suitable for 900µm buffered fiber.

Suitable for

• LAN and data center cabling
• FTTH installations
• Industrial network environments
• Field termination and repair

Key specifications

• Connector type: SC
• Fiber mode: Multimode OM2
• Termination method: Field-terminable, pre-polished
• Color: Black
• Insertion loss: ≤ 0.3 dB (typical)
• Return loss: ≥ 30 dB (typical)
• Ferrule material: Zirconia ceramic
• Housing material: High-grade plastic
• Operating temperature: -40°C to +85°C
• Durability: > 500 mating cycles
• Compliance: RoHS, REACH
• Standards: IEC 61754-4, TIA/EIA-604-3

Recommendations

For optimal performance, use with a fiber cleaver and fiber stripper. No special crimping or polishing tools required.
