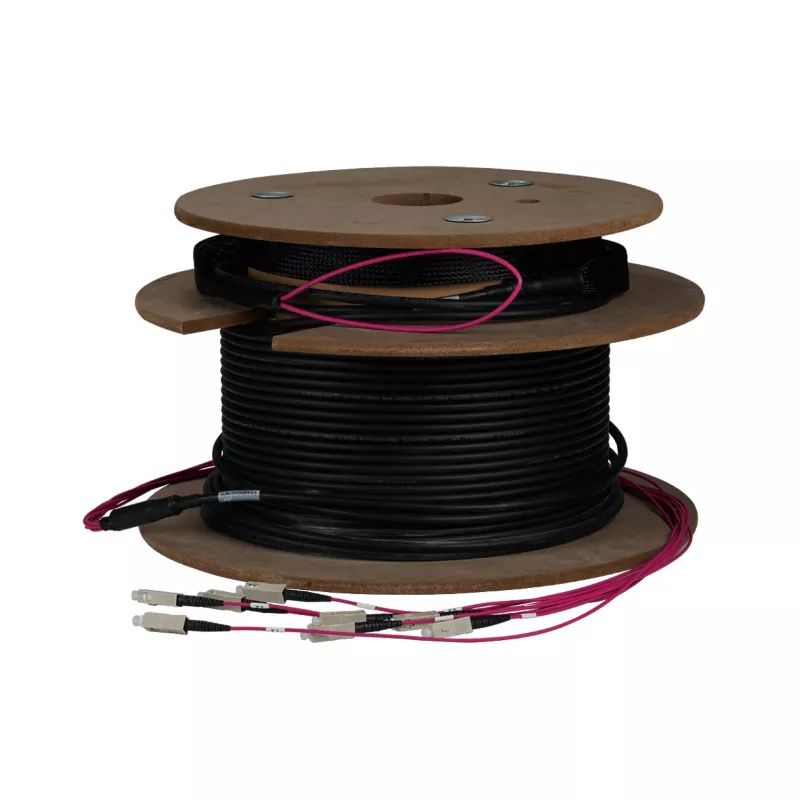

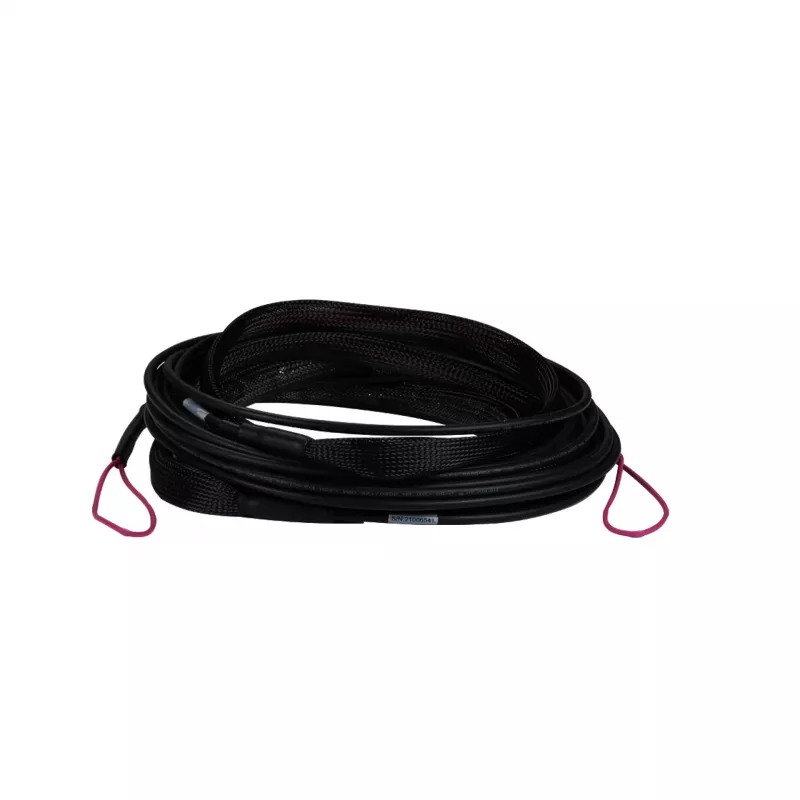

EFB Elektronik O8341L150OM4 Καλώδιο οπτικών ινών trunk 150 m OM4 12x SC

The EFB Elektronik O8341L150OM4 is a high-performance fiber optic trunk cable designed for reliable data transmission in demanding network environments. With a length of 150 meters and OM4 multimode fiber, this cable supports high-speed applications such as 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR4. It features 12 fibers terminated with SC connectors on both ends, ensuring secure and low-loss connections.

Advantages

This trunk cable offers excellent bandwidth and low insertion loss, making it ideal for data centers and enterprise networks. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire. Its robust U-DQ(ZN)BH construction provides durability and protection against environmental factors.

Suitable for

• Data center backbone cabling
• Enterprise network infrastructure
• High-speed fiber optic links up to 100 Gbps
• Indoor installations requiring flame retardant and halogen-free materials

Key specifications

• Product Type: Fiber Optic Trunk Cable
• Fiber Mode: Multimode
• Fiber Class: OM4
• Number of Fibers: 12
• Connector Type A: SC
• Connector Type B: SC
• Cable Length: 150 m
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Construction: U-DQ(ZN)BH
• Jacket Color: Aqua
• Maximum Data Rate (10GBASE-SR): 550 m
• Maximum Data Rate (40GBASE-SR4): 150 m
• Maximum Data Rate (100GBASE-SR4): 100 m
• Effective Modal Bandwidth (EMB) @ 850nm: 4700 MHz*km
• Insertion Loss (per connector pair): ≤ 0.3 dB
• Return Loss (per connector): ≥ 30 dB
• Operating Temperature: -10°C to 70°C
• Standards Compliance: IEC 60794-2, TIA/EIA-568-C.3, ISO/IEC 11801
• Fire Performance: Halogen-free, Flame Retardant (IEC 60332-1-2, IEC 61034-2, IEC 60754-2)

Recommendations

For optimal performance, pair this trunk cable with compatible SC-terminated patch panels and transceivers. Ensure proper cable management to maintain bend radius and avoid signal degradation.
