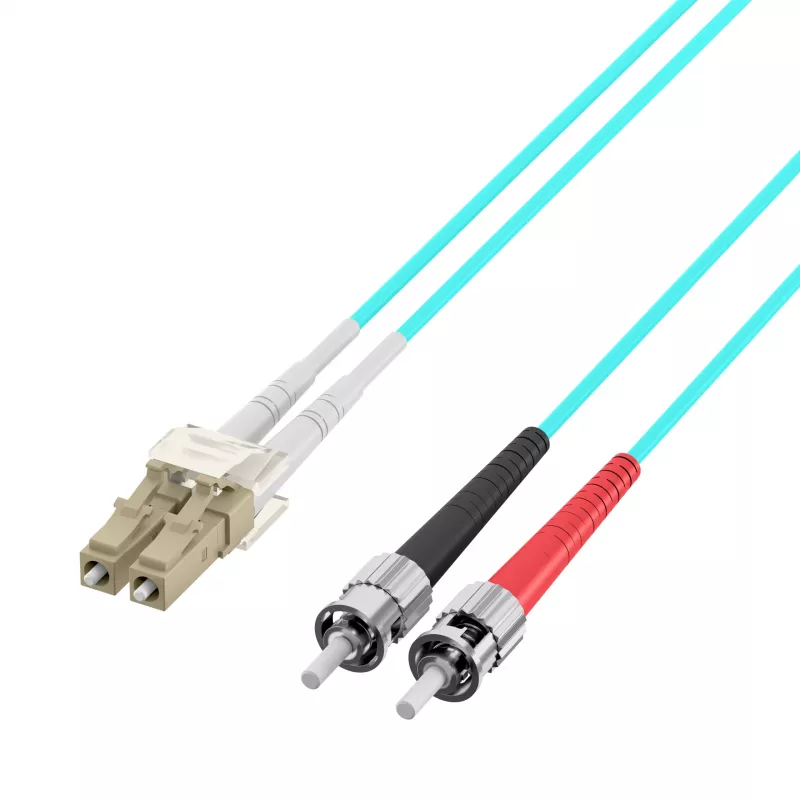

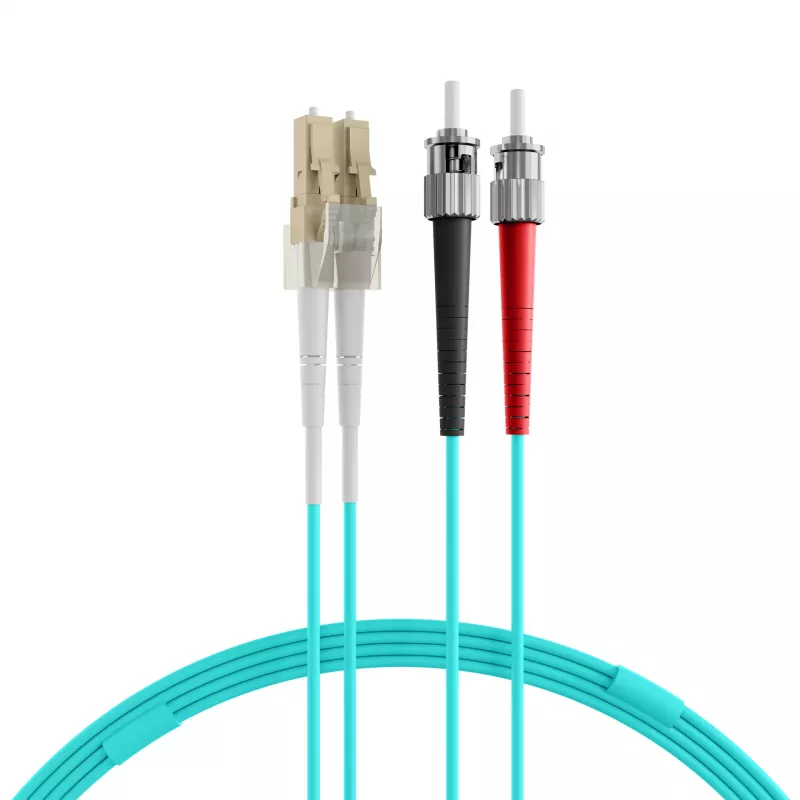

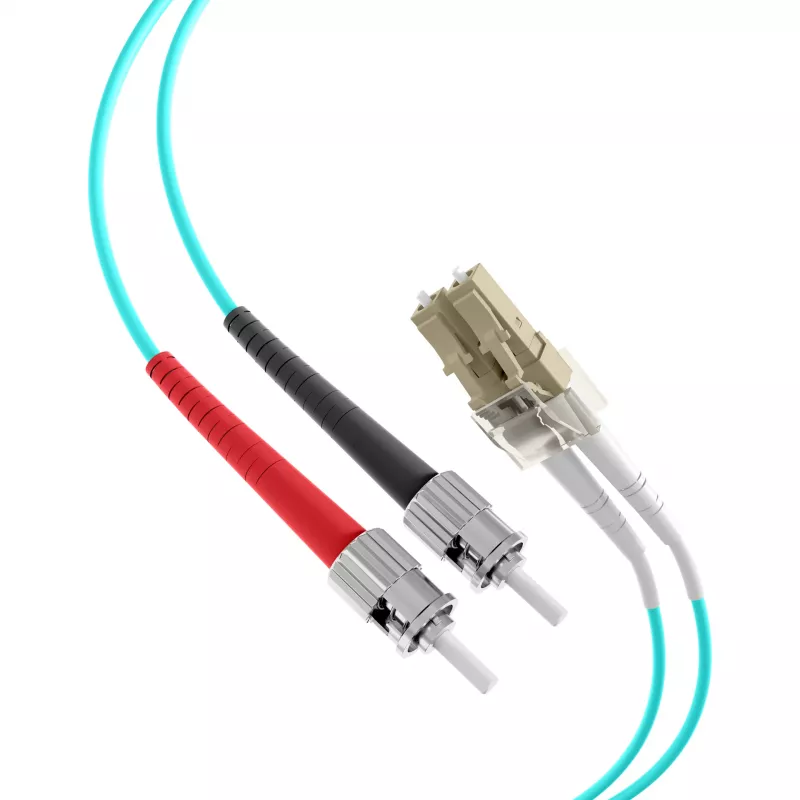

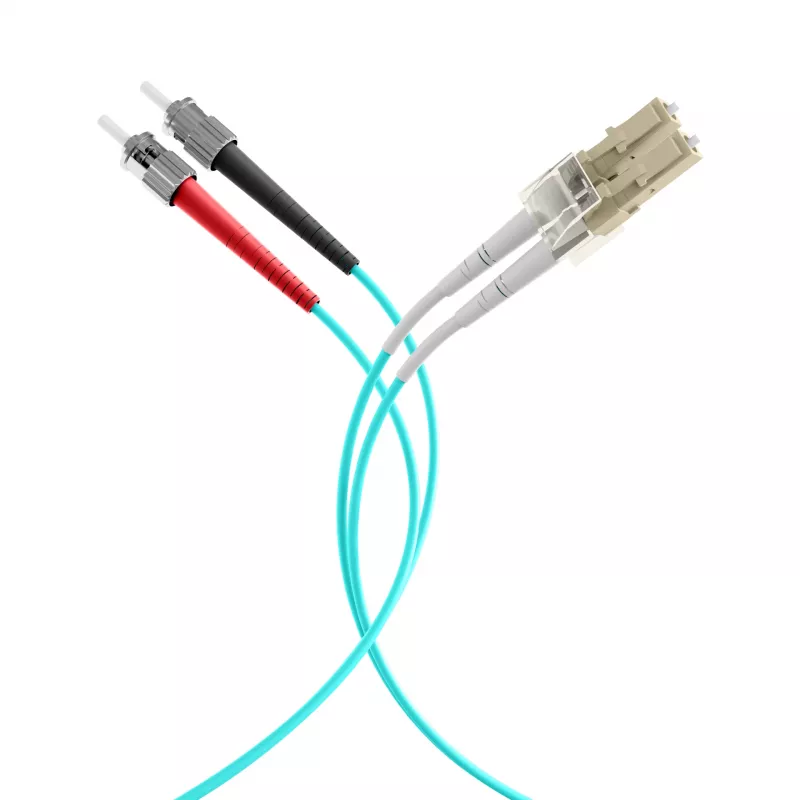

EFB Elektronik O0313.40 Καλώδιο Patch Οπτικών Ινών, OM3, 40 m, LC-ST, Aqua

The EFB Elektronik O0313.40 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 40 meters and OM3 multimode fiber, this duplex cable supports 10 Gigabit Ethernet and is ideal for data center and enterprise applications. The cable features LC duplex to ST duplex connectors, a 50/125 µm core/cladding, and a low smoke zero halogen (LSZH) jacket in aqua color, ensuring safety and performance.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring minimal signal degradation. The LSZH jacket reduces toxic fumes in case of fire, making it suitable for indoor installations. OM3 fiber provides high bandwidth for 10 Gbps applications.

Suitable for

• 10 Gigabit Ethernet (10GBASE-SR) networks
• Fiber Channel storage area networks
• Data center interconnects
• High-speed backbone cabling

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Length: 40 m
• Connectors: LC Duplex to ST Duplex
• Core/Cladding: 50/125 µm
• Jacket: LSZH, Aqua
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60793-2-10, TIA/EIA-492AAAC, RoHS

Recommendations

For optimal performance, ensure connectors are clean and properly mated. This cable is compatible with standard LC and ST interfaces. Pair with OM3 patch panels and transceivers for best results.
