EFB Elektronik MPO-PLUS(F)-LC Καλώδιο trunk OM4, 8 ινών, Τύπου B, LSZH, Βιολετί, 2m MPOF08LCOM4-2

High-density fiber optic trunk cables often suffer from polarity confusion and installation complexity. This MPO to LC trunk cable solves that by providing a factory-terminated, polarity-correct Type B link that connects MPO cassettes or panels to LC equipment without field termination.

Who is it for

Data center technicians, network installers, and IT professionals who need a reliable, pre-terminated 8-fiber OM4 backbone for 40G/100G parallel optics or breakout applications.

Main features

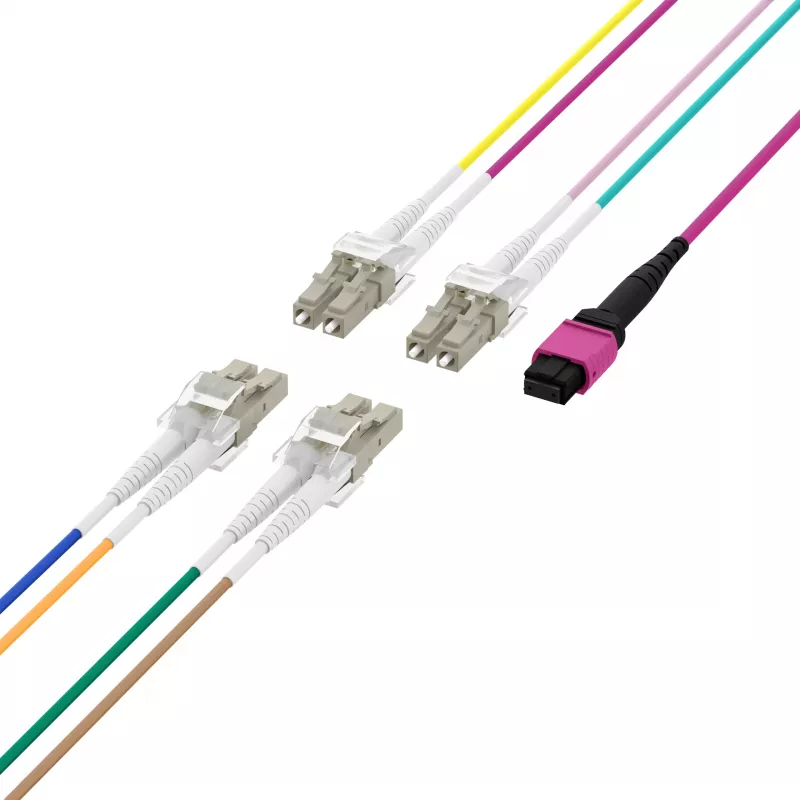

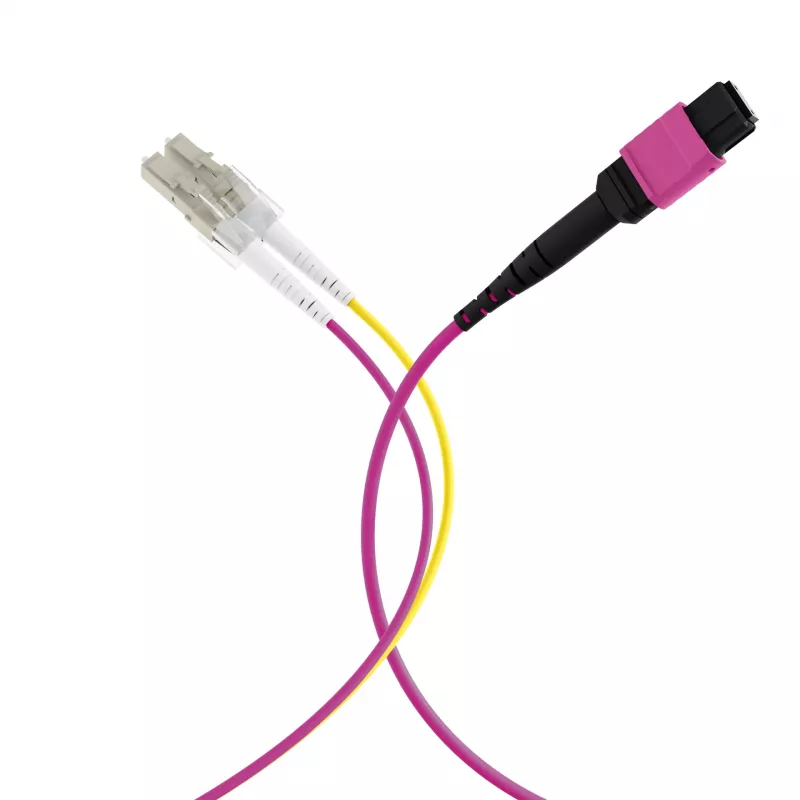

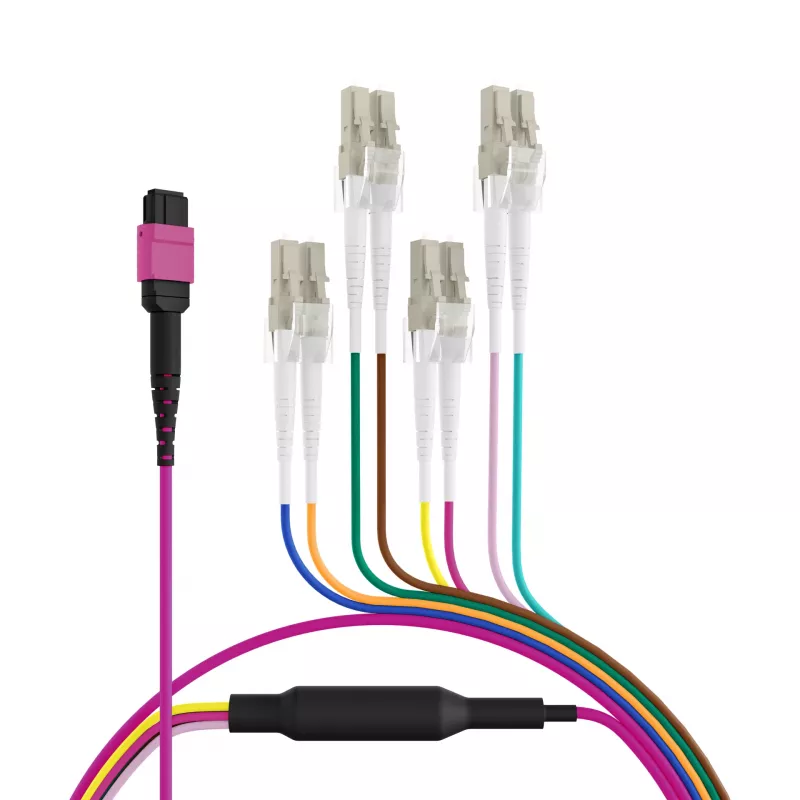

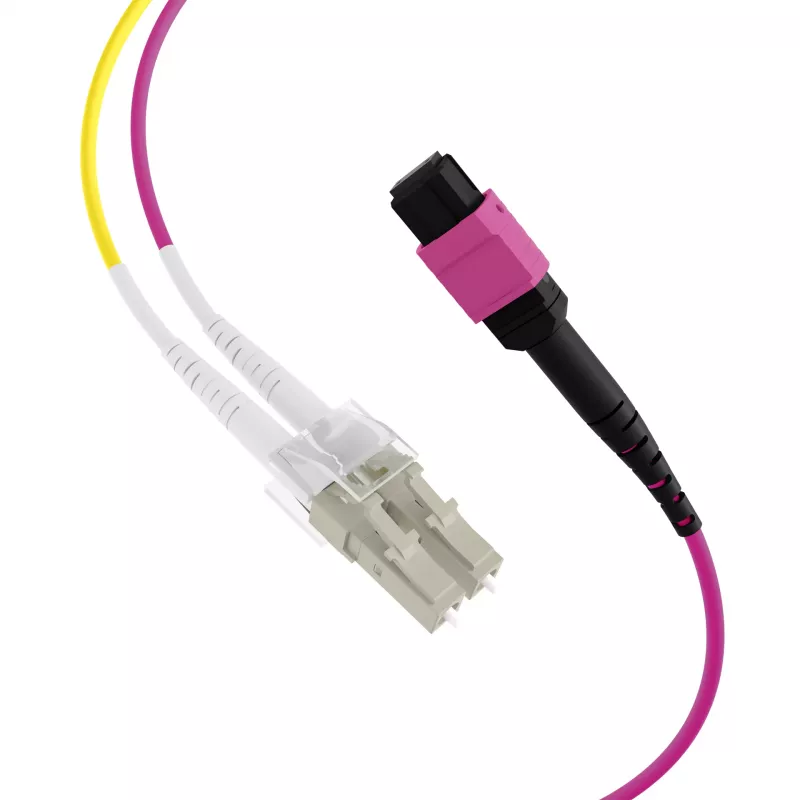

• MPO-PLUS female connector on one end, 4 LC duplex connectors on the other
• 8 multimode OM4 fibers, 50/125 µm, optimized for 850 nm VCSEL systems
• Type B polarity (cross-over) for simple system design
• LSZH jacket in heather violet for easy identification and low smoke emission
• 2 meter length, ideal for patching within racks or between adjacent cabinets

Specifications

• Fiber type: Multimode OM4
• Fiber count: 8
• Connector A: MPO-PLUS female
• Connector B: 4x LC duplex
• Polarity: Type B
• Jacket material: LSZH
• Cable colour: Heather violet
• Length: 2 m
• Core/cladding diameter: 50/125 µm
• Insertion loss (MPO): ≤ 0.35 dB
• Insertion loss (LC): ≤ 0.25 dB
• Return loss: ≥ 20 dB
• Attenuation @ 850 nm: ≤ 3.0 dB/km
• Attenuation @ 1300 nm: ≤ 1.0 dB/km
• Modal bandwidth @ 850 nm: 4700 MHz·km
• Modal bandwidth @ 1300 nm: 500 MHz·km
• Operating temperature: -20 °C to 70 °C

Tips

Verify the polarity of your entire channel when using Type B trunk cables. For MPO connections, always clean the connector end faces before mating to avoid contamination-induced signal loss.
