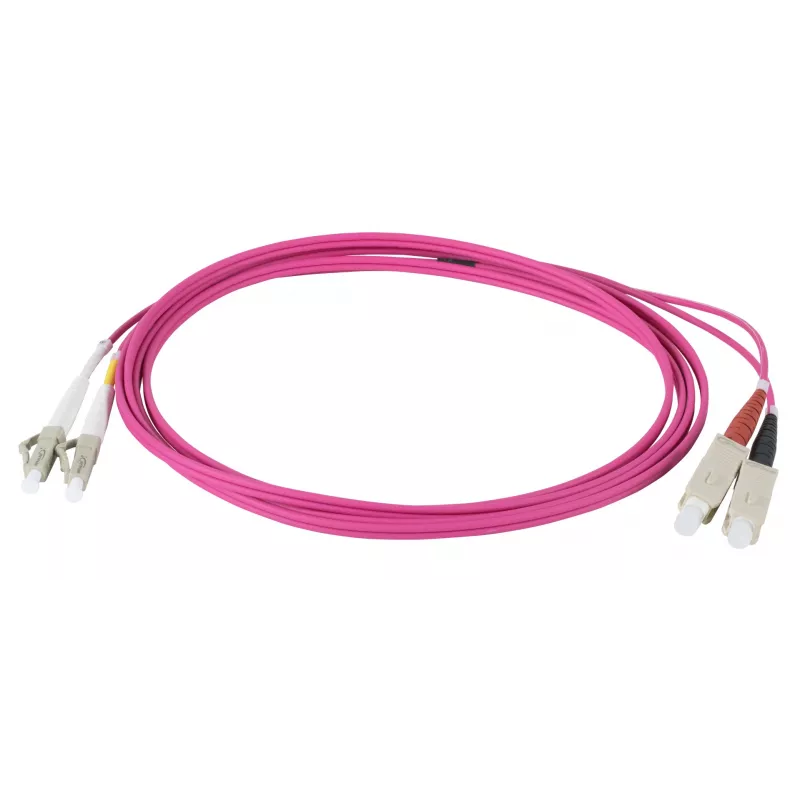

EFB Elektronik IPL-DR-LCUSCU-4-0100 - 1 m - I-V(ZN) H - OM4 - LC - SC

The EFB Elektronik IPL-DR-LCUSCU-4-0100 is a high-performance fiber optic patch cable designed for demanding network environments. With OM4 multimode fiber and duplex LC to SC connectors, this 1-meter cable ensures reliable, high-speed data transmission in data centers, SANs, and LANs.

Advantages

Low insertion loss and high return loss guarantee signal integrity. The LSZH jacket provides safety in confined spaces, reducing toxic smoke in case of fire. OM4 fiber supports high bandwidth over longer distances, making it ideal for 40G and 100G applications.

Suitable for

• High-speed data networks
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Data centers and server rooms

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber type: Multimode OM4
• Connectors: LC Duplex to SC Duplex
• Length: 1 m
• Core/Cladding: 50/125 µm
• Jacket: LSZH, Aqua
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Operating temperature: -20 to 70 °C

Recommendations

For optimal performance, pair with OM4-rated transceivers and ensure clean, dust-free connections. This cable is compliant with IEC and TIA/EIA standards, ensuring interoperability.
